Car Part Micro Switch

Car Part Micro Switch and supplier of Short Lever Micro Switch in China.With years of experience in switch, we offer competitively priced products that have gained popularity in the European and American markets. We look forward to cooperating with you.

Model:DK4-AZ-001

Send Inquiry

Product Description

WEIPENG® is Micro Switch manufacturers and suppliers in China .

Tongda Car Part Micro Switch Introduction

Short Lever Micro Switch is a small contact interval and fast moving mechanism, with the specified stroke and the specified force of the switch action contact mechanism, covered by the shell, its external drive rod of a switch, because the switch contact spacing is relatively small, so the name of micro switch, also called sensitive switch.

Tongda Car Part Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A 125/250VAC 10A 36VDC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥3000000 cycles
7	Operating Temperature		-25~105℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、TUV、ENEC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Tongda Car Part Micro Switch Feature And Application

Short Lever Micro Switch in the need to frequently change the circuit of the equipment for automatic control and safety protection, widely used in electronic equipment, instruments, mines, power systems, household appliances, electrical equipment, and aerospace, aviation, ships, missiles, tanks and other military fields, has been widely used in the above fields, the switch is small, but plays an irreplaceable role.

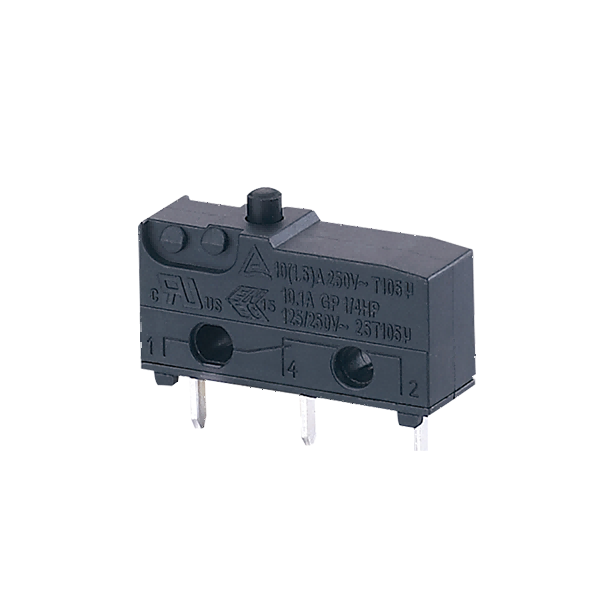

Tongda Car Part Micro Switch Details
