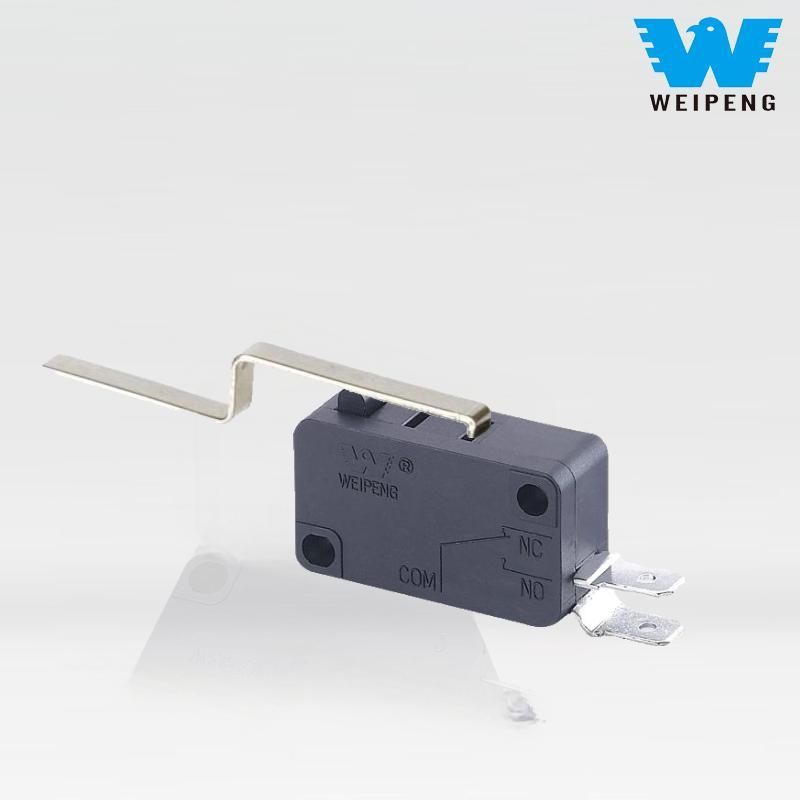

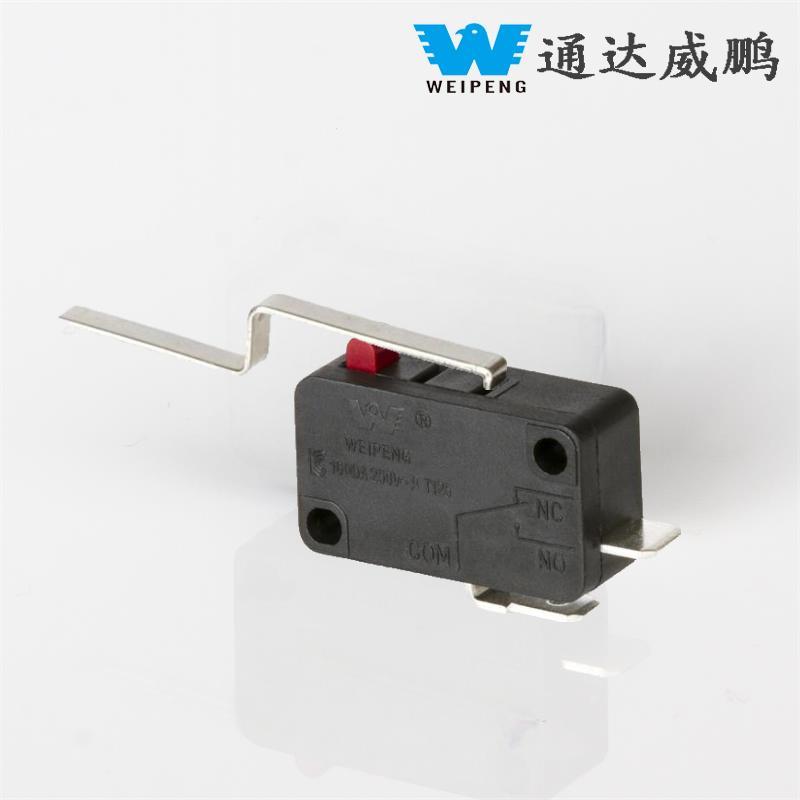

2-Pin 16A Household Appliance Micro Switch

As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the 2-Pin 16A Household Appliance Micro Switch Resistant Micro Switch features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism.

Model:HK-14-1X-16A-907

Send Inquiry

Product Description

WEIPENG® is a leading 2-Pin 16A Household Appliance Micro Switch manufacturers, suppliers and exporter.

Micro Switch Introduction

Featuring a rugged sealed housing and high-temperature resistant materials, the HK-14 maintains stable electrical characteristics even in environments with vibration, dust, and temperature fluctuations. Its standardized mounting dimensions and versatile terminal design allow easy integration into assembly lines, home appliances, power tools, and industrial control systems, reducing installation complexity and improving production efficiency.

External dust, plastic debris, deformed levers, misaligned installation and fatigued internal springs will cause the switch to get stuck and fail to rebound. Minor issues can be solved by cleaning debris and correcting the lever position with accurate installation without side pressure. If the internal structure is damaged, direct replacement is more reliable instead of disassembling.

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

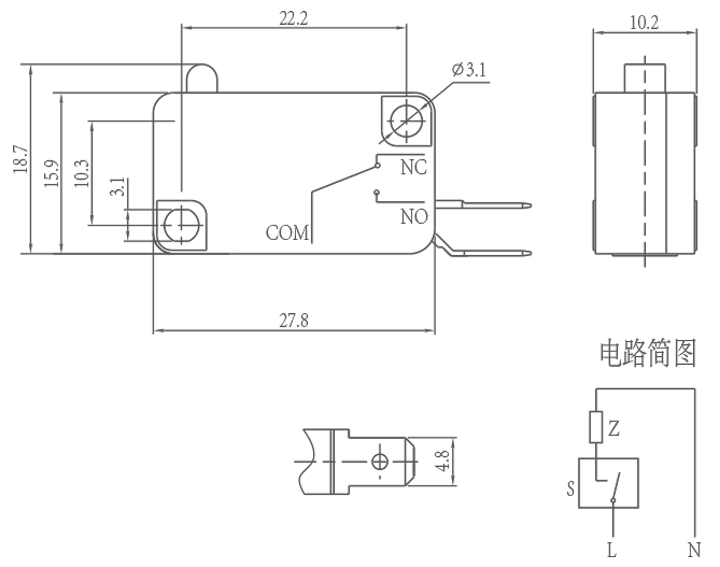

Micro Switch Details
