2-Pin Micro Switch Fuel Nozzle Switch

As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the 2-Pin Micro Switch Fuel Nozzle Switch features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism.

Model:HK-14-1-10A-404

Send Inquiry

Product Description

WEIPENG® is a leading 2-Pin Micro Switch Fuel Nozzle Switch manufacturers, suppliers and exporter.

Micro Switch Introduction

The HK-14 is a high-current, heavy-duty standard microswitch featuring a robust one-piece housing and snap-action contact mechanism. It supports 2/3/4/6 pin configurations and a wide range of customizable levers, with a switching capacity up to 21A@250VAC. It is a mainstream control switch for home appliances, industrial equipment, and power tools.

Construction & Materials

Housing: High-strength flame-retardant thermoplastic, impact & heat resistant

Contacts: Silver alloy (AgCdO/AgNi), arc-resistant, low contact resistance

Terminals: 4.8mm tin-plated copper, plug-in & solder compatible

Actuator: Plunger / lever options (straight, bent, roller, etc.)

Typical Applications

Widely used in appliance control, industrial limit switches, automotive components, power tools, and in position detection and safety activation for various instruments and equipment.

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

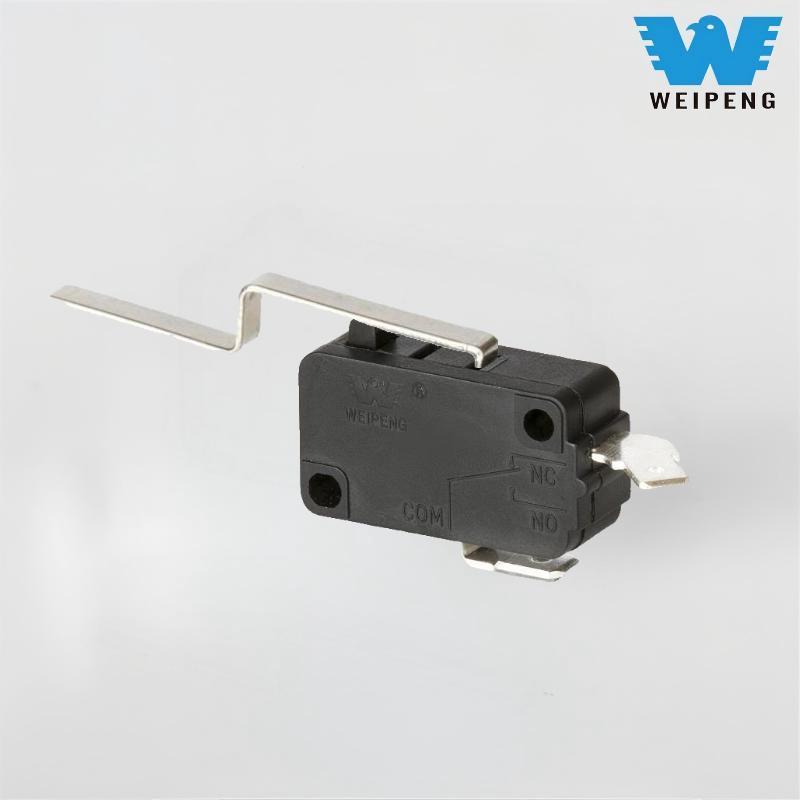

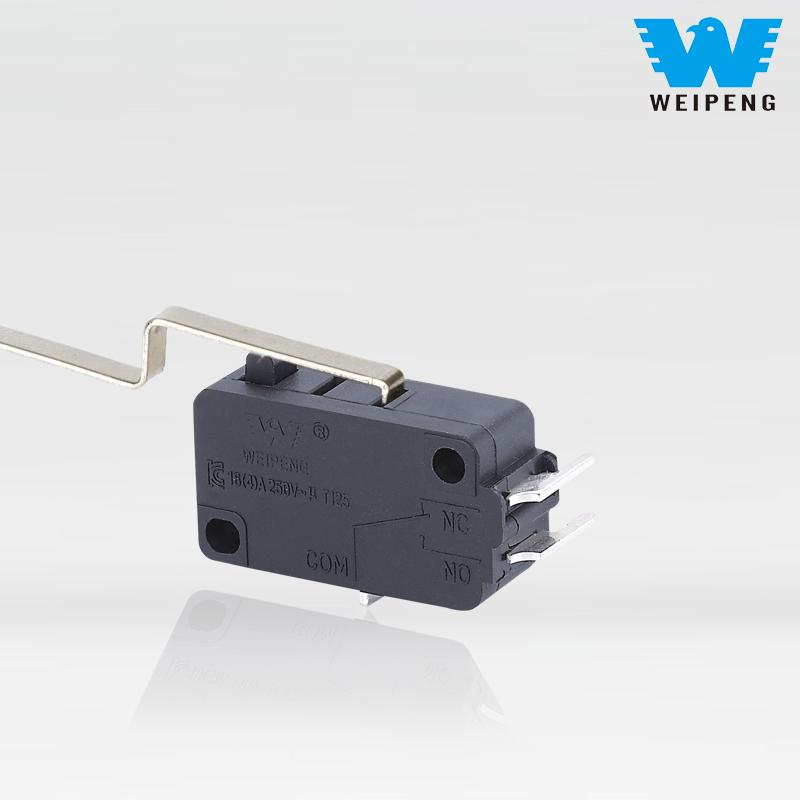

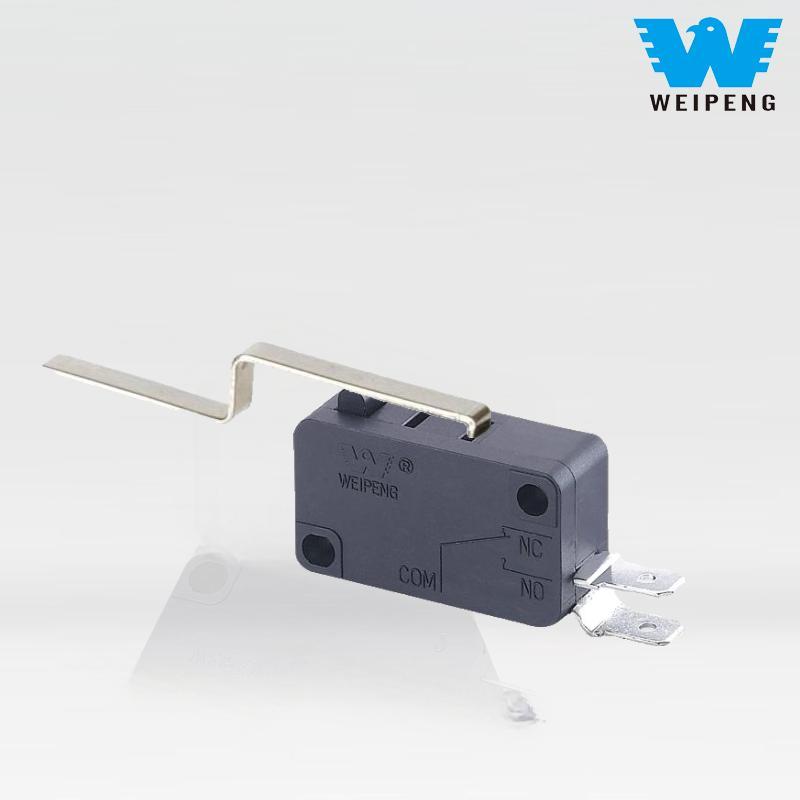

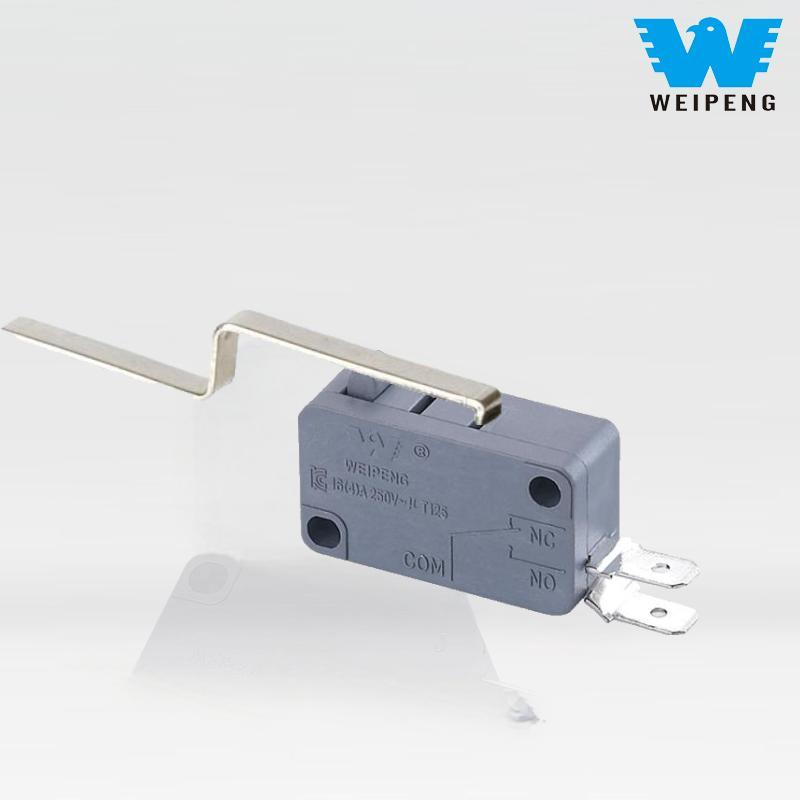

Micro Switch Details
