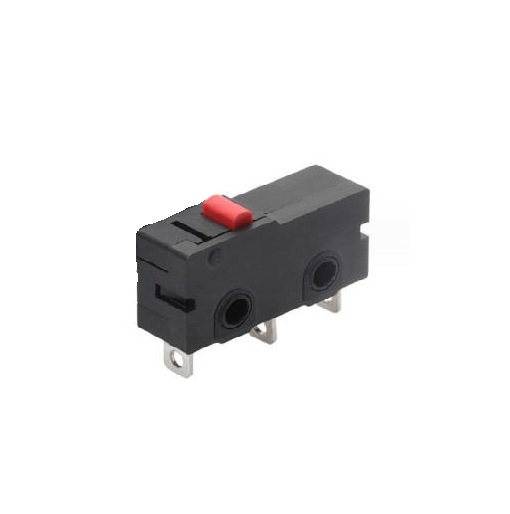

Automobile Micro Switch Auto Parts

Automobile Micro Switch Auto Parts is offered by China manufacturers WEIPENG®. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your Household appliances ultra-small micro switch needs in China.

Model:HK-04G-570

Send Inquiry

Product Description

WEIPENG® is a leading China Mini Micro Switches for Home Appliance manufacturers, suppliers and exporter.

Tongda Wire Electric Factory FAQ

Q1. How about your delivery time?

A1: Generally, it will take 3 to 15 days upon receipt of payment. The specific delivery time depends

on the items and the quantity of the order.

Q2. Can you produce according to the samples?

A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q3. Do you test all your goods before delivery?

A3: Yes, we have 100% test before delivery.

Q4: How do you make our business long-term and good relationship?

A4:1. We keep good quality and competitive price to ensure our customers benefit ;

2.Still take our customer's question be first,quick response and resolve ability if meet quality issue.

Tongda Wire Electric Automobile Micro Switch Auto Parts Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
