Battery Furnace Charging Station Push Micro Switch

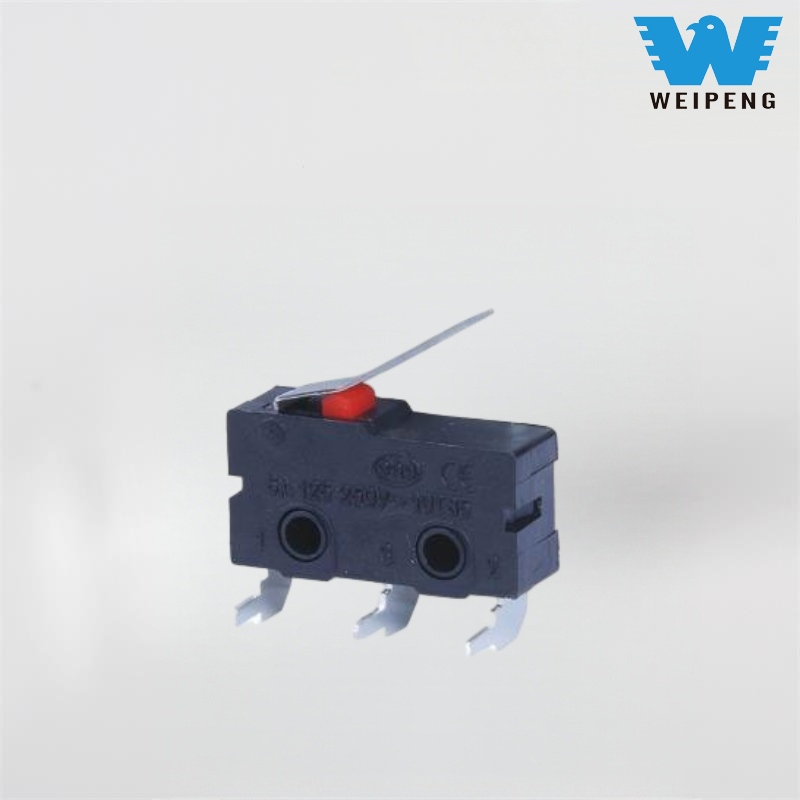

The HK-04G-L micro switch (5A 250V Micro Switch) features a short lever trigger structure and a snap-action mechanism, enabling rapid circuit switching with minimal mechanical force. With its precise operating characteristics, wide environmental adaptability, and global safety certifications, the product is widely used in critical control scenarios across home appliance control, industrial automation, and electronic equipment. It serves as a core component to ensure safe operation and accurate control of devices.

Model:HK-04G-LZ-183

Send Inquiry

Product Description

WEIPENG® is a leading Battery Furnace Charging Station Push Micro Switch manufacturers, suppliers and exporter.

Micro Switch Introduction

The HK-04G-L micro switch features a short lever trigger structure and a snap-action mechanism, enabling rapid circuit switching with minimal mechanical force. With its precise operating characteristics, wide environmental adaptability, and global safety certifications, the product is widely used in critical control scenarios across home appliance control, industrial automation, and electronic equipment. It serves as a core component to ensure safe operation and accurate control of devices.

Micro Switch Application

Suitable for industrial automation limit detection.

For valve control: installed at the end of the butterfly valve stem. When the valve rotates to the 90° fully open position, the lever is pushed to switch the circuit, providing a position feedback signal;

Conveyor belts: fixed at the end of the conveyor track. When materials reach it, the switch is triggered to control the motor stop, and it can withstand vibrations of 10–50Hz generated by conveyor operation;

Machine tools: used as an emergency stop triggering component, designed with an operating force of 3.5N to meet the requirement for quick pressing in emergency situations.

Micro Switch Specification

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
