Drying Rack Micro Switch
  • Drying Rack Micro SwitchDrying Rack Micro Switch

Drying Rack Micro Switch

WEIPENG® has established itself as a top-tier Drying Rack Micro Switch manufacturer and supplier in China, providing quality Drying Rack Micro Switch solutions for many years. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

Model:HK-10-3A-002

Send Inquiry

Product Description

WEIPENG® is a leading China Drying Rack Micro Switch manufacturers, suppliers and exporter.

Tongda Wire Electric Drying Rack Micro Switch Introduction


Drying Rack Micro Switch contact spacing is small, short travel, according to the power, quick break. The speed of the moving contact has nothing to do with the speed of the transmission element. Drying Rack Micro Switch to press pin type as the basic type, can be derived button short stroke type, button large stroke type, button large stroke type, roller button type, spring roller type, lever roller type, short boom type, long boom type and so on. Microswitches are used in electronic equipment and other equipment for automatic control and safety protection of frequent circuit change devices.
Microswitch is divided into large, medium, small, according to different needs can be divided into waterproof type (in the liquid environment to use) and ordinary type, switch connected to two lines, electrical appliances, machines and so on to provide power control.



Tongda Wire Electric Drying Rack Micro Switch Parameter (Specification)


ITEM Main Technical Parameters
1 Electrical Rating :3A 250VAC
2 Electrical lifetime : Min.10000 cycles
3 Contact Resistance :<50mΩ
4 Operating force:70±20gf
5 Free position:7.3±0.2mm
6 Operating position:7.0±0.2mm
7 Ambient temperature:T85°
8 Withstand Voltage :Between terminal and terminal 500V/5S/5mA;
Between terminals and case 1500/5S/5mA
9 Insulation Resistance:>100MΩ  Test Voltage 500VDC
10 Proof Tracking Index PTI :175V

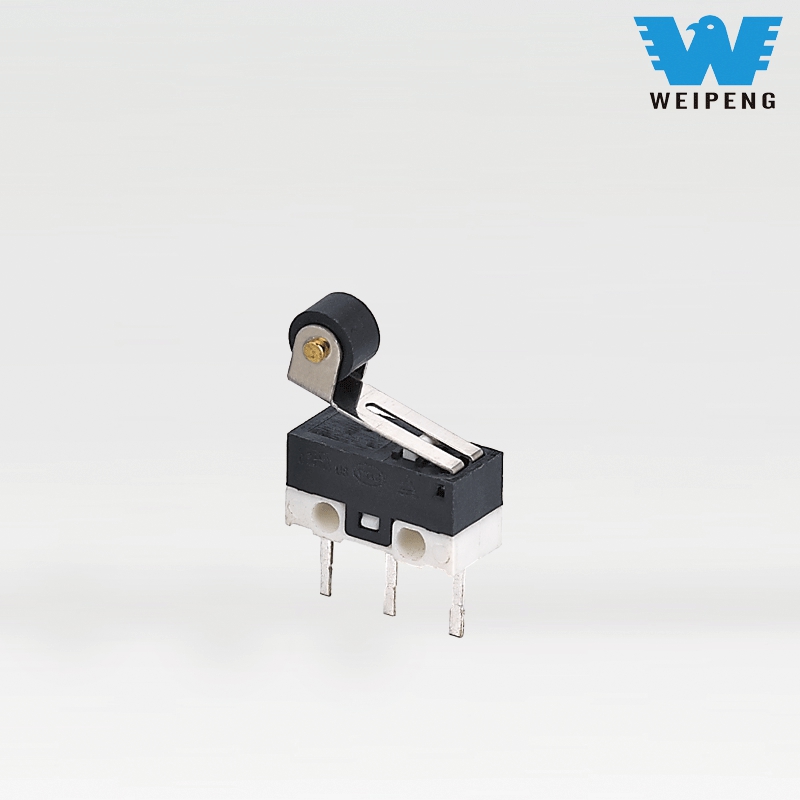

Tongda Wire Electric Drying Rack Micro Switch Details
