Micro Switch Introduction

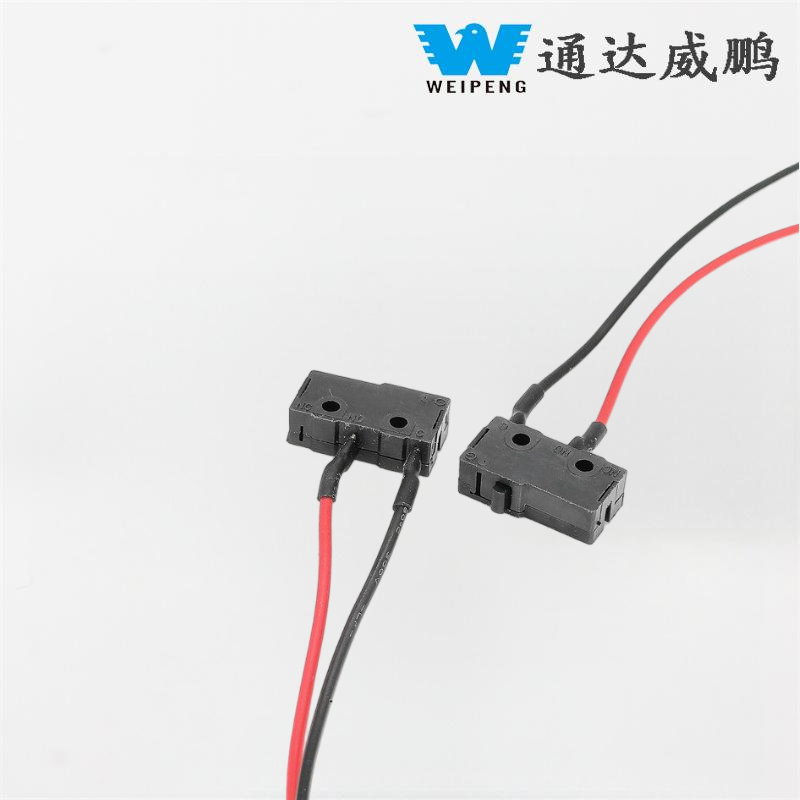

As a representative product of Yueqing Tongda Cable Power Plant that embodies the integration of core standardization and customization, the HK-04G-L switch is designed with the core principles of "stability, reliability, and scene compatibility." It incorporates 35 years of the company's switch manufacturing expertise, achieving multiple optimizations in electrical performance, protection levels, and user experience. The switch is widely applicable to scenarios such as smart home power distribution, industrial auxiliary equipment, and small medical instruments, making it a preferred circuit control component that balances universality with customization potential.

Fully certified by internationally and domestically recognized authorities such as UL, CUL (CSA), VDE, ENEC, and CQC, and compliant with the ISO 9001 quality management system standards. The terminal spacing and pin layout are compatible with the IEC 61810 standard, allowing direct replacement of mainstream models such as the Omron V-15 series without requiring adjustments to the PCB design.

Micro Switch Application

Suitable for automotive electronic status monitoring.

Vehicle charging port: when inserting the charger, push the swing arm to connect the charging circuit, with silver alloy contacts compatible with a 12V/10A vehicle power supply;

Seat adjustment: the limit switch at the end of the slide rail detects the seat's extreme positions through the swing arm, preventing motor overload.

Micro Switch Specification

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
