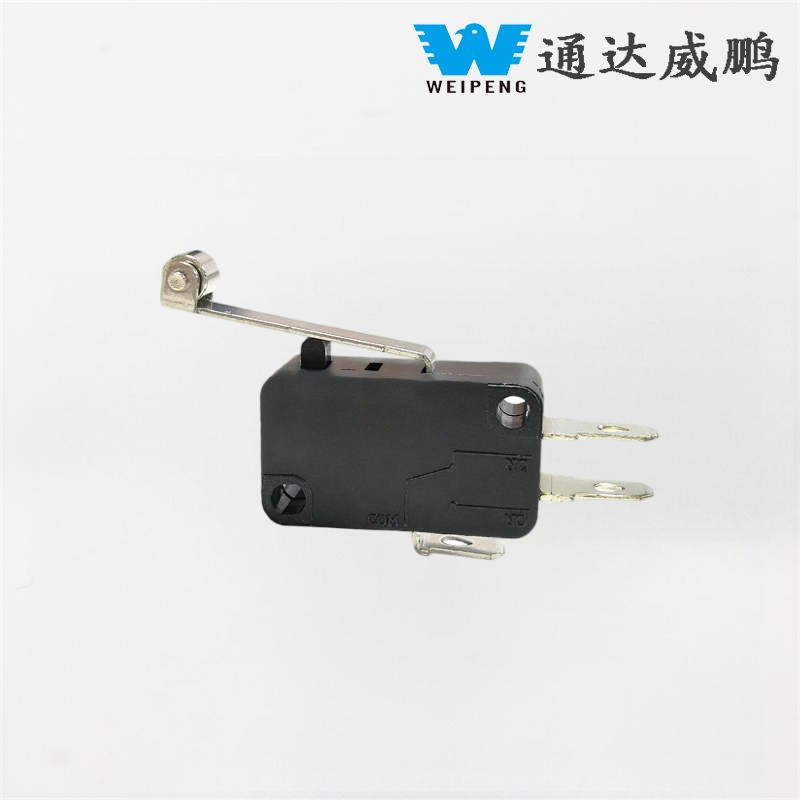

Dustproof Rotary Cam Switch with Roller Lever

As the benchmark model of Yueqing Tongda Cable Power Plant's micro switch series, the HK-14 features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism. Its performance and reliability have been certified by multiple authoritative organizations worldwide, securing its mainstream position in the niche market.

Model:HK-14-10A-302

Send Inquiry

Product Description

WEIPENG® is a leading Dustproof Rotary Cam Switch with Roller Lever manufacturers, suppliers and exporter.

Micro Switch Introduction

The HK-14 demonstrates strong competitiveness in technical specifications and is especially suited for high-frequency, high-precision control requirements. The contacts are made of highly conductive alloy materials, with an initial contact resistance of ≤30mΩ, capable of stably carrying currents from 5A to 25A, and compatible with multiple voltage scenarios including AC 125V/250V and DC 12V/24V, meeting various power needs from small household appliances to industrial equipment.

In terms of triggering performance, the product utilizes a snap-action mechanism, with an operating stroke of only 0.5-1.6mm and operating force controlled between 0.25-4N. It offers rapid triggering response and clear feedback, effectively avoiding issues of "false triggering" and "trigger delay." The lifespan far exceeds industry norms: mechanical life exceeds 1 million cycles, and electrical life reaches over 50,000 cycles, enabling long-term stable operation in high-frequency usage scenarios such as microwave ovens and automotive electronics.

The environmental adaptability is equally impressive. The product can operate in a wide temperature range from -25℃ to 125℃, pass a three-axis vibration test at 10-55Hz with an amplitude of 1.5mm, maintain an insulation resistance of ≥100MΩ (500VDC), and withstand a voltage of 1000V AC between terminals, ensuring stable performance even in industrial workshop vibration environments or the high-temperature conditions of a car engine compartment.

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

Micro Switch Details
