Handle-Type Tripod Slight-Angle Micro Switch

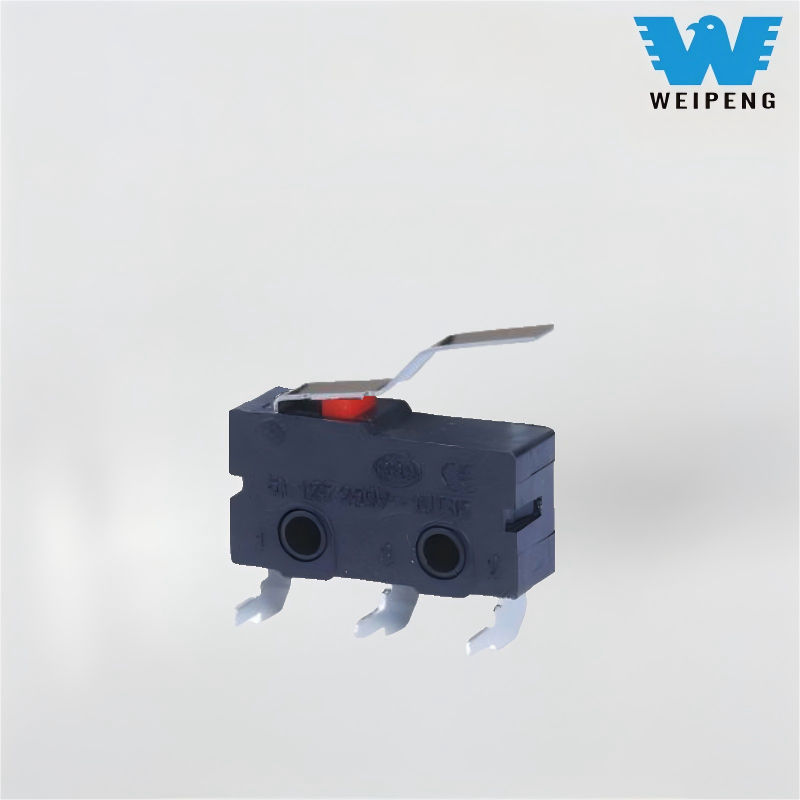

The HK-04G-L micro switch (5A 250V Micro Switch) features a short lever trigger structure and a snap-action mechanism, enabling rapid circuit switching with minimal mechanical force. With its precise operating characteristics, wide environmental adaptability, and global safety certifications, the product is widely used in critical control scenarios across home appliance control, industrial automation, and electronic equipment. It serves as a core component to ensure safe operation and accurate control of devices.

Model:HK-04G-LZ-184

Send Inquiry

Product Description

WEIPENG® is a leading Handle-Type Tripod Slight-Angle Micro Switch manufacturers, suppliers and exporter.

Micro Switch Introduction

The HK-04G-L micro switch features a short lever trigger structure and a snap-action mechanism, enabling rapid circuit switching with minimal mechanical force. With its precise operating characteristics, wide environmental adaptability, and global safety certifications, the product is widely used in critical control scenarios across home appliance control, industrial automation, and electronic equipment. It serves as a core component to ensure safe operation and accurate control of devices.

Micro Switch Application

Suitable for precision electronics and medical devices. For example:

Printer: A swing arm in the paper feed channel detects the edge of the paper. A 0.3mm pre-travel can identify thermal paper with a thickness of 50μm;

Medical monitor: Button activation uses a short swing arm structure, with an operating force of 1.0N balancing trigger sensitivity and prevention of accidental activation;

Smart terminal: Battery compartment cover closure detection, with an over-travel ≥0.2mm to ensure the cover is fully secured.

Micro Switch Specification

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
