High-Current Self-Reset Micro Switch for Household Appliances

As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the High-Current Self-Reset Micro Switch for Household Appliances features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism.

Model:HK-14-1-10A-403

Send Inquiry

Product Description

WEIPENG® is a leading High-Current Self-Reset Micro Switch for Household Appliances manufacturers, suppliers and exporter.

Micro Switch Introduction

Main Technical Features

Electrical Specifications: Offers multiple rated current options, such as 5A, 10A, 16A, 20A, with a rated voltage up to AC250V, suitable for applications with different power requirements.

Mechanical and Electrical Life: Mechanical life can exceed 1 million cycles, and electrical life is generally between 10,000 to 100,000 cycles.

Operating Temperature: Features a wide operating temperature range, commonly -25℃ to 105℃, with some models reaching -40℃ to 125℃, suitable for various environments.

Operating Structure: Typically self-resetting, with various contact configurations, such as 1NC 1NO (one normally closed and one normally open).

Application Scenarios

Home Appliances: Microwave door control, washing machine program control, air conditioner fan speed adjustment, ensuring safe operation of equipment

Industrial Automation: Production line positioning, robot limit control, conveyor start-stop control, improving production efficiency by 35%

Automotive Electronics: Car window lifting, seat adjustment, trunk sensing, suitable for harsh in-vehicle environments

Medical Devices: Surgical equipment control, detection instrument signal triggering, meeting medical-grade safety standards

Military Industry: Weapon equipment control, communication device switching, adapting to extreme working conditions and high reliability requirements

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5（2)A/10A/16(3)A/21（8）A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

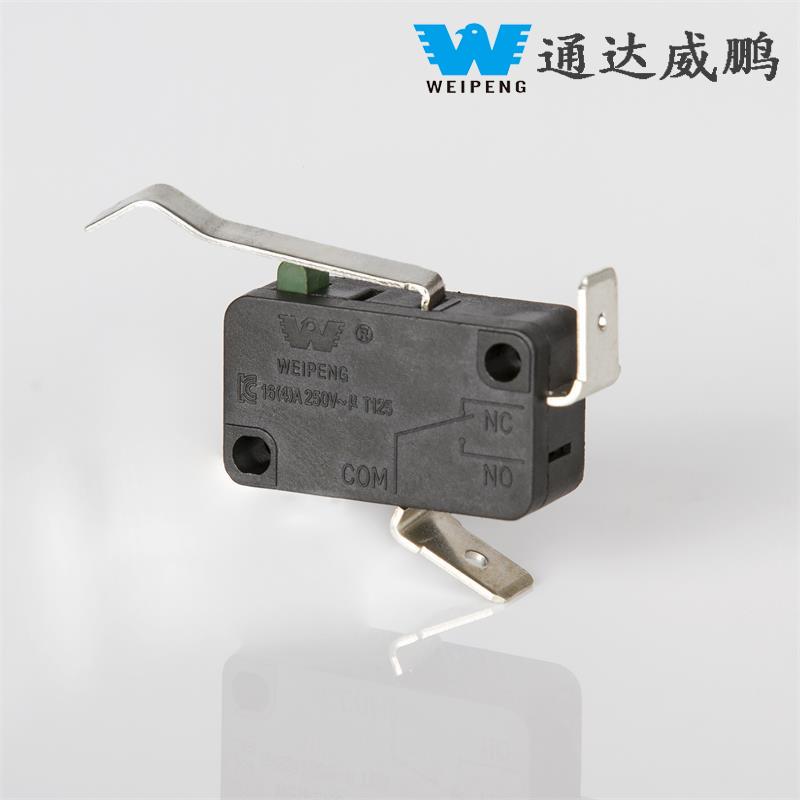

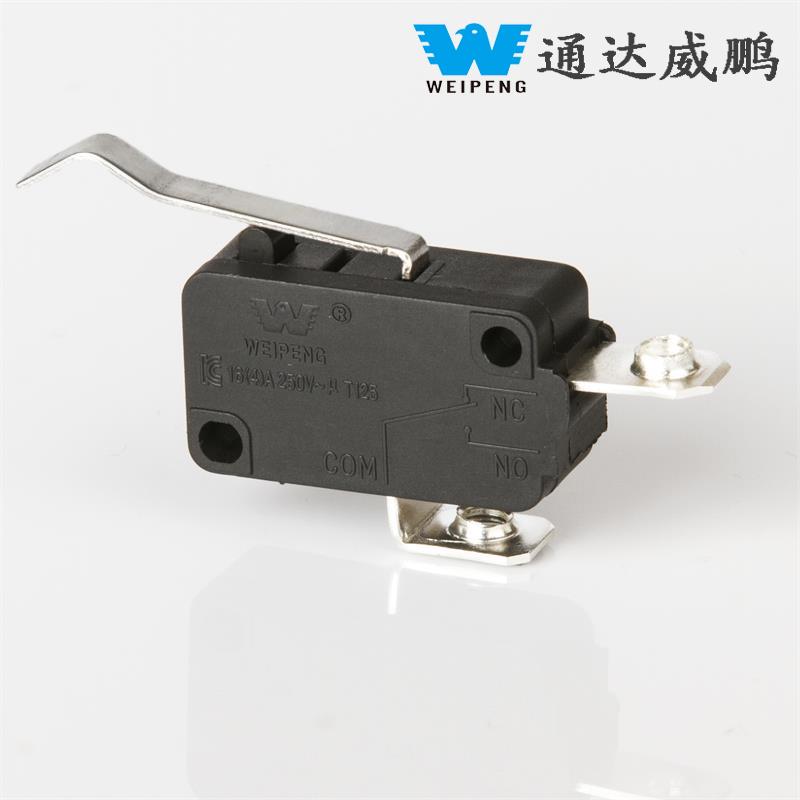

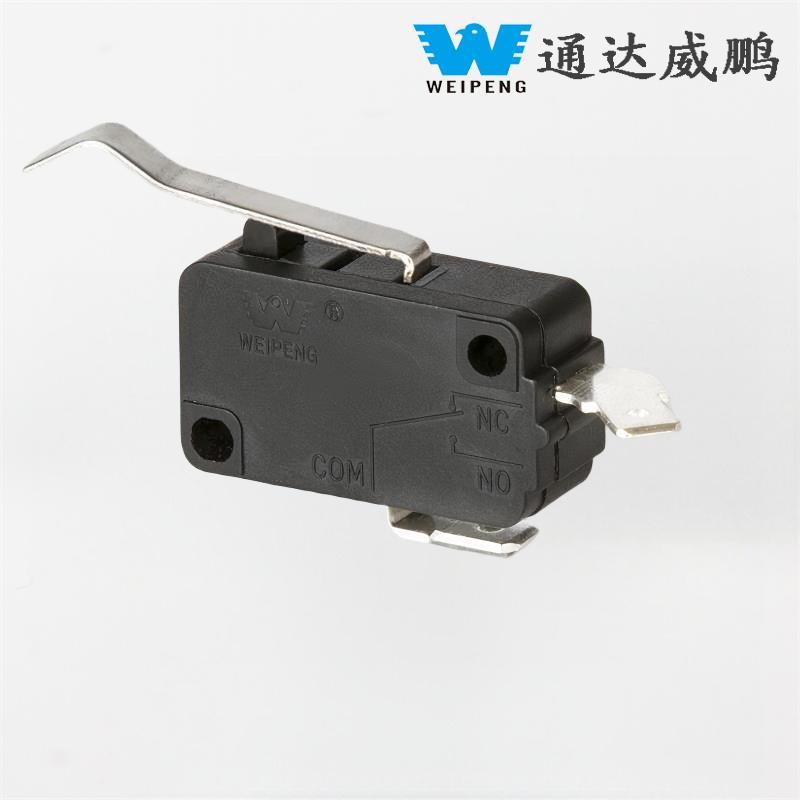

Micro Switch Details
