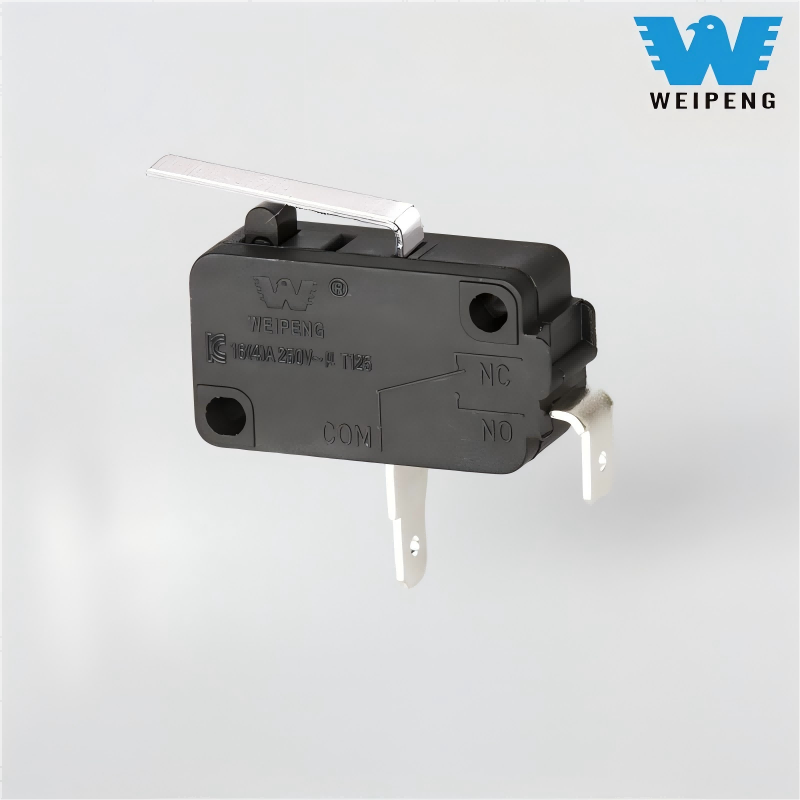

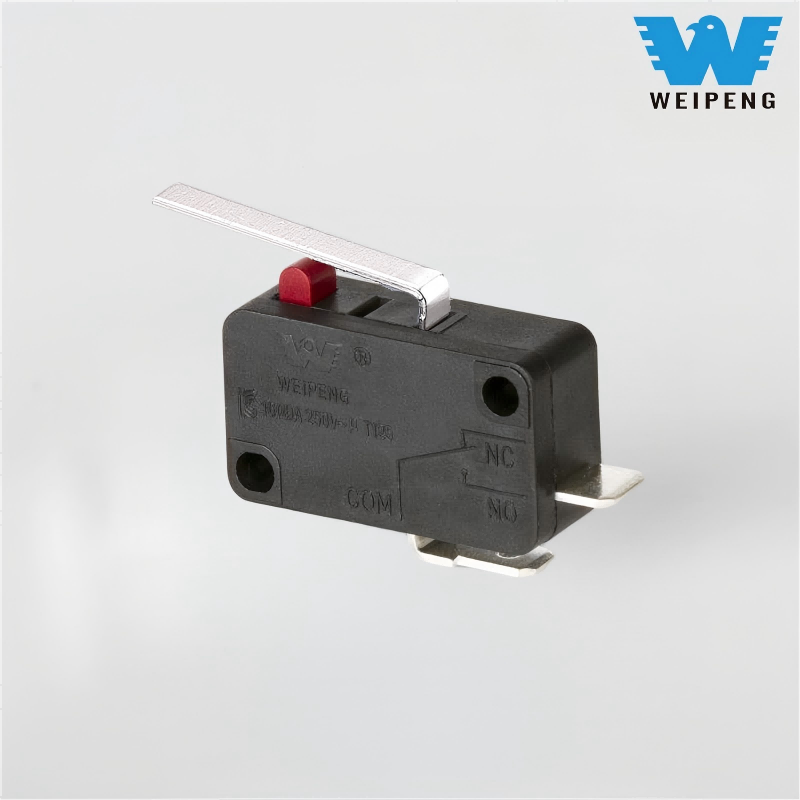

High-Sensitivity Large Micro Switch with Lever

As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the High-Sensitivity Large Micro Switch with Lever features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism. Its performance and reliability have been certified by multiple authoritative organizations worldwide, securing its mainstream position in the niche market.

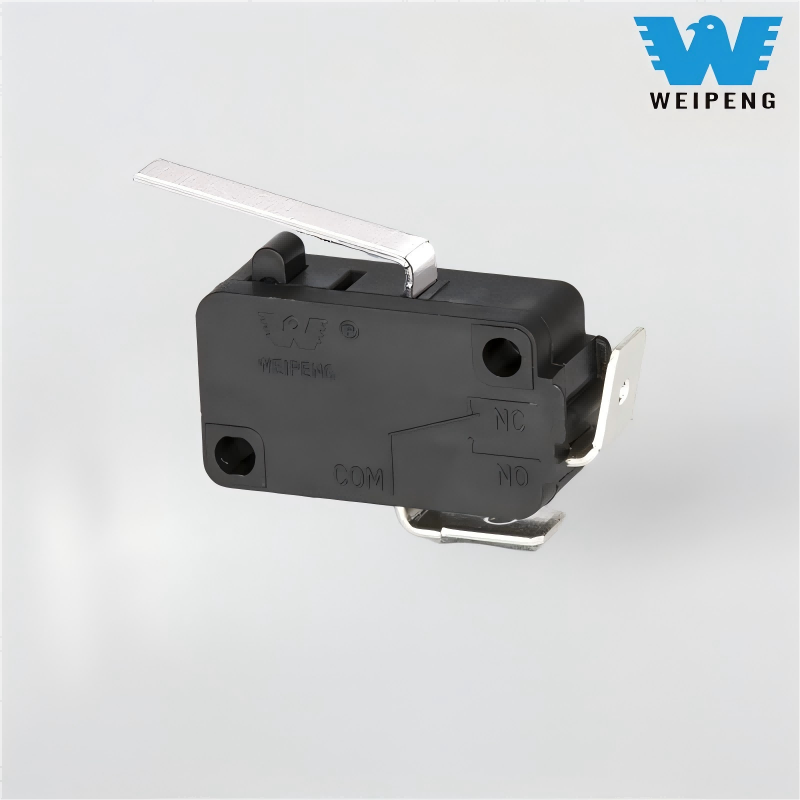

Model:HK-14-1X-16A-260

Send Inquiry

Product Description

WEIPENG® is a leading High-Sensitivity Large Micro Switch with Lever manufacturers, suppliers and exporter.

Micro Switch Introduction

The HK-14 series adopts a core design featuring 'silver alloy contacts with patented rapid-action mechanism.' The contacts are made of AgSnO₂ silver-tin oxide alloy material and undergo a vacuum coating process, with a contact resistance of ≤50mΩ, ensuring stable current transmission without attenuation and effectively preventing signal delays or poor contact caused by contact oxidation. The trigger response time is ≤5ms, and operating stroke deviation is controlled within ±0.05mm, with trigger sensitivity far exceeding industry standards. To meet different mechanical trigger requirements, the series offers a comprehensive range of actuator lever combinations, including 8 types of levers: short-arm, long-arm, roller (available in nylon or metal), button, fork, etc., precisely matching various conditions such as rotary mechanisms, linear motion devices, and push-type controls.

Typical Popular Models and Application Scenarios:

HK-14-1X-16A-P-200: Normally open, 16A 250VAC, metal roller actuator rod — suitable for travel limit control on industrial automation production lines, roller design reduces mechanical wear

HK-14-1-16AP-715: Normally closed, 16A 250VAC, short hinge roller actuator rod — suitable for precise triggering in medical testing equipment, normally closed design ensures equipment safety when powered off

HK-14-16AP-605: Changeover type, 16A 250VAC, wide temperature design — suitable for temperature monitoring switches in new energy vehicle battery packs, -40°C~125°C wide temperature range fits extreme onboard environments

HK-14-1X-5A-320: Normally open, 5A 250VAC, button-type actuator rod — suitable for microwave oven door switches, responsive pressing, high-level safety protection

Application Scenarios

Home Appliances: Microwave door control, washing machine program control, air conditioner fan speed adjustment, ensuring safe operation of equipment

Industrial Automation: Production line positioning, robot limit control, conveyor start-stop control, improving production efficiency by 35%

Automotive Electronics: Car window lifting, seat adjustment, trunk sensing, suitable for harsh in-vehicle environments

Medical Devices: Surgical equipment control, detection instrument signal triggering, meeting medical-grade safety standards

Military Industry: Weapon equipment control, communication device switching, adapting to extreme working conditions and high reliability requirements

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

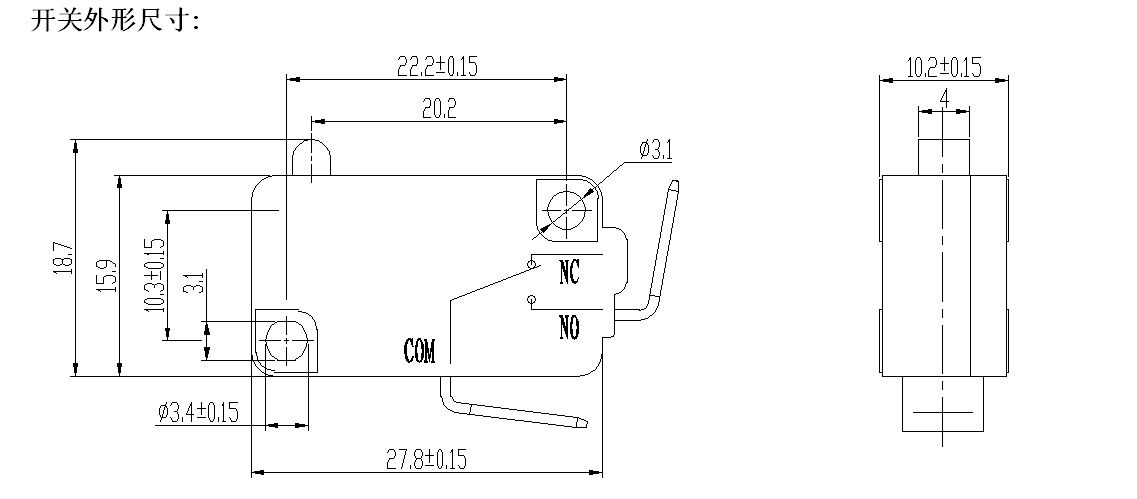

Micro Switch Details
