High-Temperature Resistant Micro Switch for Long-Handled Blender Motor

As the benchmark model of Yueqing Tongda Cable Power Plant's micro switch series, the HK-14 features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism. Its performance and reliability have been certified by multiple authoritative organizations worldwide, securing its mainstream position in the niche market.

Model:HK-14-16AP-002

Send Inquiry

Product Description

WEIPENG® is a leading High-Temperature Resistant Micro Switch for Long-Handled Blender Motor manufacturers, suppliers and exporter.

Micro Switch Introduction

Millisecond-Precise Triggering: Utilizes a snap-action fast mechanism with a short travel of 0.5-1.6mm and adjustable operating force of 0.25-4N, providing rapid and delay-free response to effectively prevent "false triggers." Suitable for high-precision scenarios such as microwave oven door controls and industrial sensors.

Ultra-Durable Quality: High-conductivity alloy contacts paired with reinforced structure offer a mechanical lifespan exceeding 1 million cycles and an electrical lifespan of over 50,000 cycles. Ideal for long-term stable operation in high-frequency use environments like automotive electronics and power tools.

Wide Environmental Adaptability: Operates under a wide temperature range of -25℃ to 125℃, withstands high-frequency vibrations of 10-55Hz, features an insulation resistance ≥100MΩ, and terminal withstand voltage of 1000V AC. Reliable performance in harsh conditions such as industrial workshop vibrations and high temperatures in automobile engine compartments.

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5（2)A/10A/16(3)A/21（8）A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

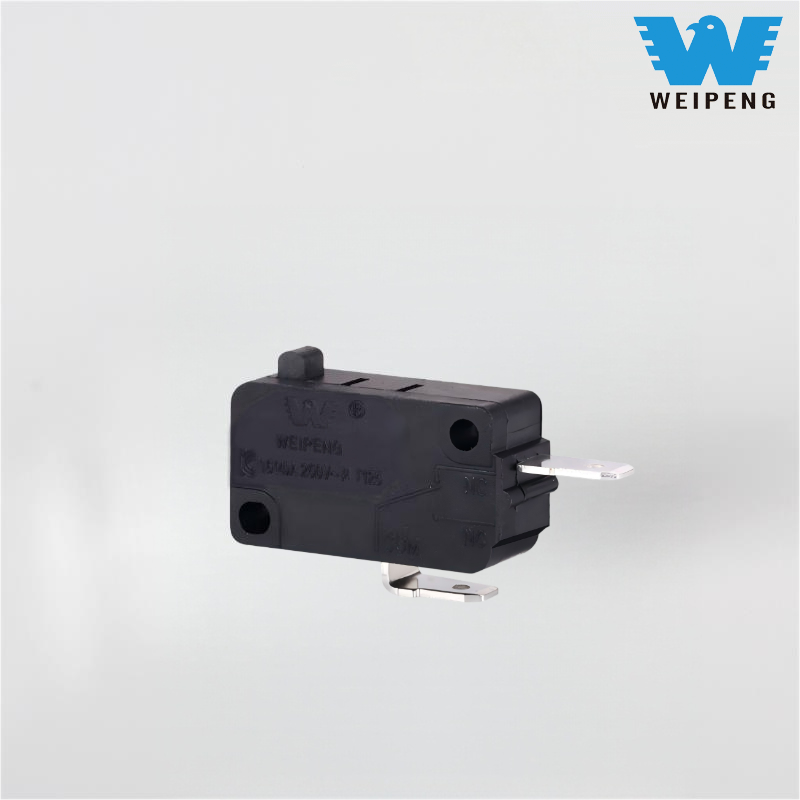

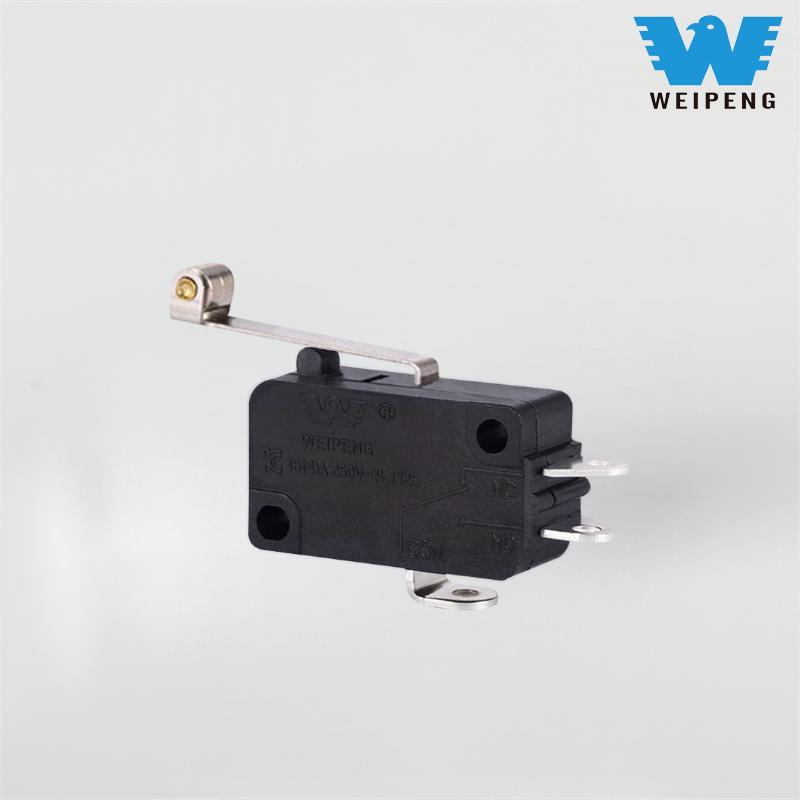

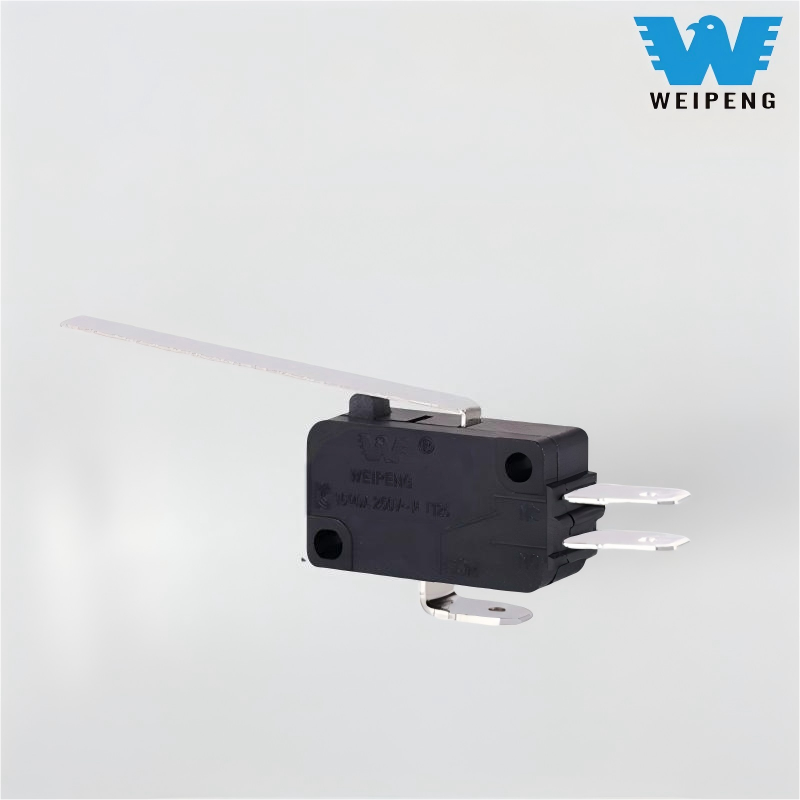

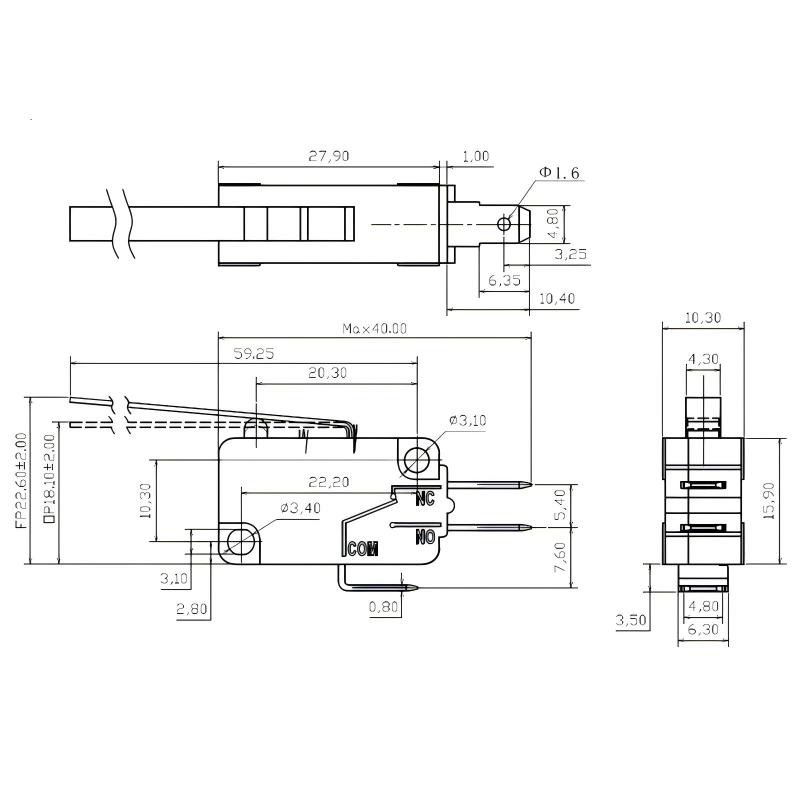

Micro Switch Details
