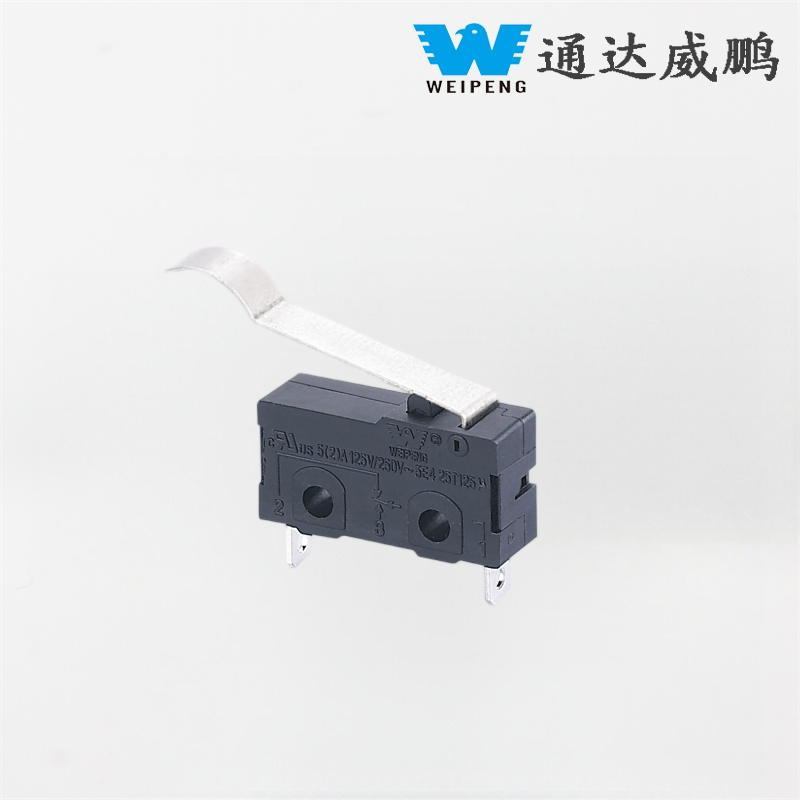

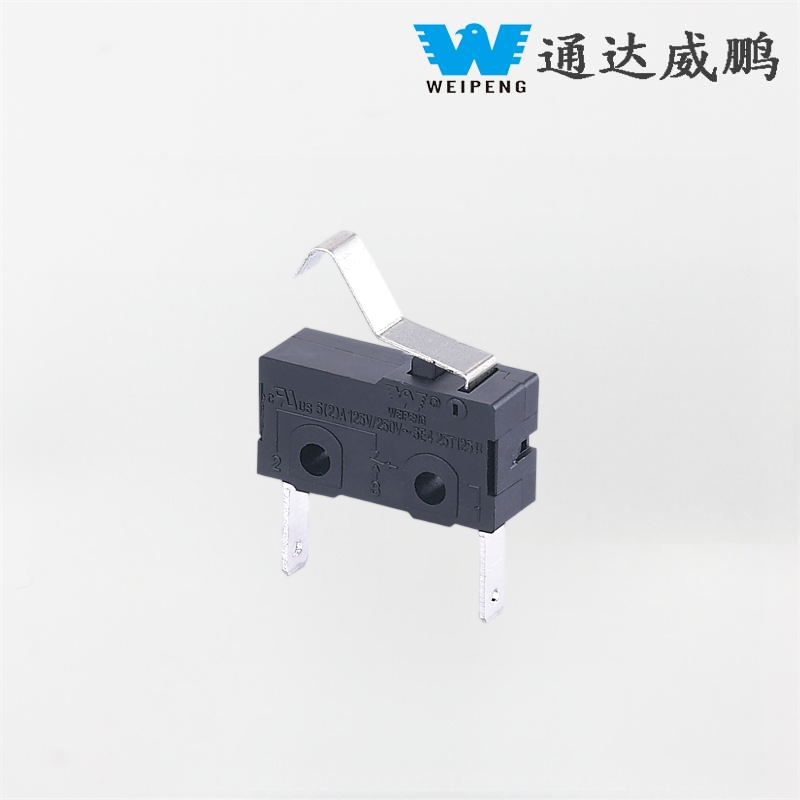

HK-04G-L Medium Reset Curved Lever Micro Switch

HK-04G-L Medium Reset Curved Lever Micro Switch as a representative product of Tongda WEIPENG that embodies the integration of core standardization and customization. As a manufacturer and wholesaler, the core design principle of the durable smart appliance reset switch produced by our own factory is 'stability, reliability, and scenario compatibility.' Rating: 5A 250VAC Temperature Range: -40°C~+125°C IP Code: IP40 Dimension: 19.8*10.6*6.4mm Approval：UL, ENEC, CSA, CE, VDE

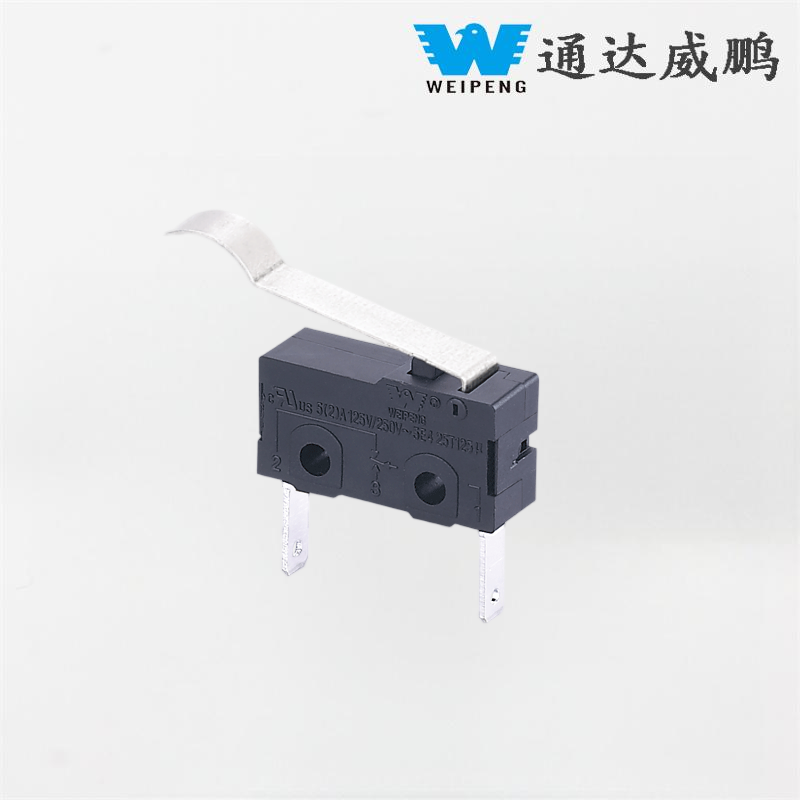

Model:HK-04G-LT-124

Send Inquiry

Product Description

WEIPENG® is a leading HK-04G-L Medium Reset Curved Lever Micro Switch manufacturer, supplier and exporter.

Micro Switch Introduction

The Miniature Micro Switch housing is made of high-strength, flame-retardant, high-temperature resistant engineering plastic. Its structure is tough and not easily deformed, able to withstand the heat generated inside the device during long-term operation, while also offering excellent aging resistance and mechanical impact resistance. It is not prone to cracking or breaking in environments with frequent long-term use. The internal conductive contacts are made of high-quality alloy material, with low contact resistance and excellent conductivity. They can effectively reduce circuit conduction loss, resist arc burning, and minimize contact wear caused by long-term load operation, greatly enhancing electrical service life. Paired with a high-precision elastic spring sheet structure, the triggering action is crisp and quick, with a short stroke. A slight press on the lever can achieve instantaneous circuit switching, with no issues like delayed contact or arcing, ensuring outstanding operational stability.

Product Features

Compact Structure: Small size (approximately 20 x 10 x 6mm), easy for integrated installation

Fast Action: Uses a snap-action mechanism, small contact spacing, quick response

Various Actuators: Can be equipped with roller levers, spring levers, and other drive forms

Long Life: Mechanical life can reach over 100,000 cycles, high reliability

Micro Switch Application

Micro switches are widely used and reliable in performance, mainly applied in:

- Household appliances: refrigerator lights, microwave oven door locks, washing machine lid switches, and toaster timers.

- Industrial equipment: heavy-duty models suitable for conveyor belts, machinery, and control panels (dustproof and moisture-proof).

- Automotive field: windshield wipers, door-ajar indicators — capable of withstanding vibration and extreme temperatures.

- Electronic devices: miniature switches for remote controls and game controllers (responsive and long-lasting).

Micro Switch Specification

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
