Household Appliances Ultra-small Micro Switch

High quality Household Appliances Ultra-small Micro Switch is offered by China manufacturers WEIPENG®. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your Household appliances ultra-small micro switch needs in China.

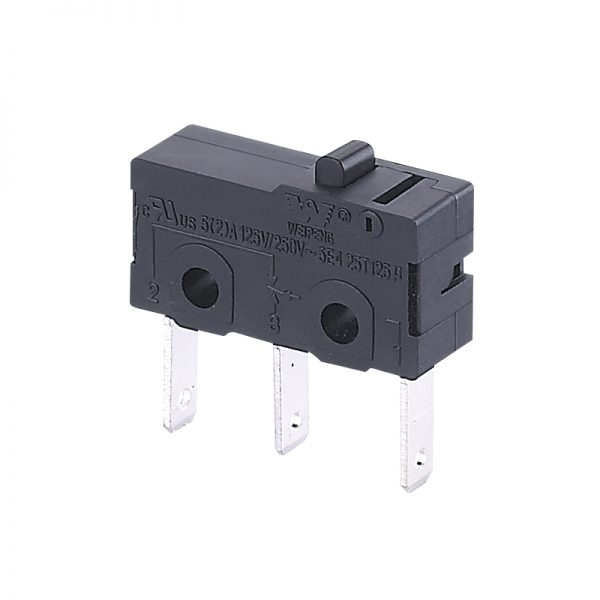

Model:HK-04G-LZ-115

Send Inquiry

Product Description

WEIPENG® is a leading China Household Appliances Ultra-small Micro Switch manufacturers, suppliers and exporter.

Tongda Wire Electric Household Appliances Ultra-small Micro Switch Introduction

Household appliances ultra-small micro switch as the name suggests is just need us to touch a little can control the electrical flow of the switch. Being unfamiliar with the name Household appliances ultra-small micro switch doesn't mean you haven't touched it in your life. In fact, microswitches are now used to such an extent that every one of us can't live without them in our daily lives. Microswitches can be found on computers, mice, communication devices and even home/community security devices. Because the Household appliances ultra-small micro switch is the external mechanical force through the transmission element or the spring force, so as to generate a instantaneous start for on-off power supply, the working time and space range are very small, because it can greatly improve the utilization efficiency of time and space, which is also the reason for the popularity of Household appliances ultra-small micro switch. we need to focus on screening. Don't underestimate a small Household appliances ultra-small micro switch, it may directly affect the effectiveness of a million dollars of equipment.

Tongda Wire Electric Household Appliances Ultra-small Micro Switch Application

At present, the mechanical life of microswitches on the domestic market varies from 3W to 1000W times according to the different use requirements, generally 10W, 20W, 50W, 100W, 300W, 500W and 800W times. Beryllium bronze, tin bronze and stainless steel wire are generally used in China as reed. ALPS in foreign countries can do it up to 1000W, their reed is made of rare metal titanium.

Tongda Wire Electric Household Appliances Ultra-small Micro Switch Feature

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
