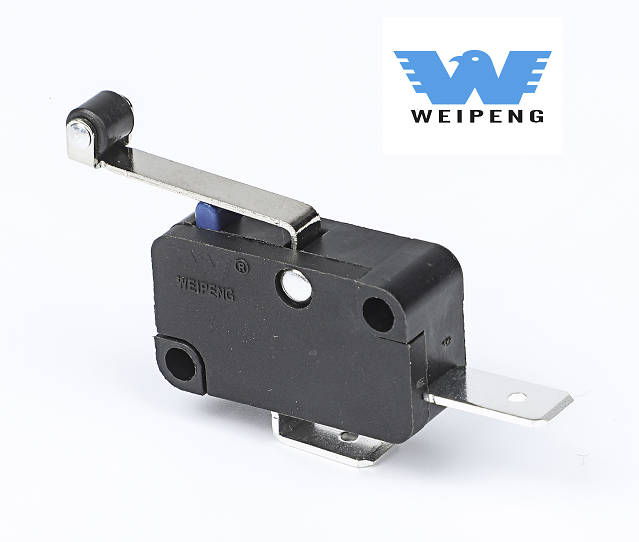

Long Lever Roller Micro Switch

Long Lever Roller Micro Switch has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small

Model:SWM-SEL-02

Send Inquiry

Product Description

WEIPENG® is a leading China Long Lever Roller Micro Switch manufacturers, suppliers and exporter.

Tongda Wire Electric Factroy Long Lever Roller Micro Switch Introduction

Micro switch. Switches with tiny contact spacing, snap-action mechanisms and defined actuation forces. General type. Switches with tiny contact spacing, snap-action mechanisms, and defined actuation forces.

Tongda Wire Electric Factroy Long Lever Roller Micro Switch Application

Small microswitches can also be widely used in all kinds of small household appliances, auto parts, industrial equipment, electronic communications and other fields, such as automobiles: car door locks, electric tailgate locks, electric middle door locks, electric suction door locks, hood locks, tailgate locks, central locks, seat belt buckles, turn signals, headlight control circuits, electronic shifters, door lock safety monitoring; New energy electric vehicle charging gun: charging gun electronic lock; Household appliances: smart toilets, water heaters, coffee machines, wall breakers, soymilk machines, rice cookers, ice machines, bathroom equipment, sweepers; Hand-held power tools: electric pruning shears, welding guns, etc.

Tongda Wire Electric Factroy Long Lever Roller Micro Switch Parameter (Specification)

Item	China manufacturers mini micro switchrs with lever
Model Number	SWM-SEL-02
Rating	5A 250VAC
Temperature Range	-40°C~+125°C
IP Code	IP40
Dimension	19.810.66.4mm
Material of Case & Knob	PBT
Material of Contacts	AgNi10
Material of Terminal	Sliver plated copper
Electrical Service Life	50,000 Cycles
Mechanical Service Life	1,000,000 Cycles
Approval	UL, CUL, ENEC, SGS, CQC, CE, CB, KC
