Manufacturer of Micro Switches for Espresso Machine Portafilter Stirrer

Manufacturer of Micro Switches for Espresso Machine Portafilter Stirrer as a representative product of Tongda WEIPENG that embodies the integration of core standardization and customization. As a manufacturer and wholesaler, the core design principle of the durable smart appliance reset switch produced by our own factory is 'stability, reliability, and scenario compatibility.' Rating: 5A 250VAC Temperature Range: -40°C~+125°C IP Code: IP40 Dimension: 19.8*10.6*6.4mm Approval：UL, ENEC, CSA, CE, VDE

Model:HK-04G-LT-123

Send Inquiry

Product Description

WEIPENG® is a leading Manufacturer of Micro Switches for Espresso Machine Portafilter Stirrer.

Micro Switch Introduction

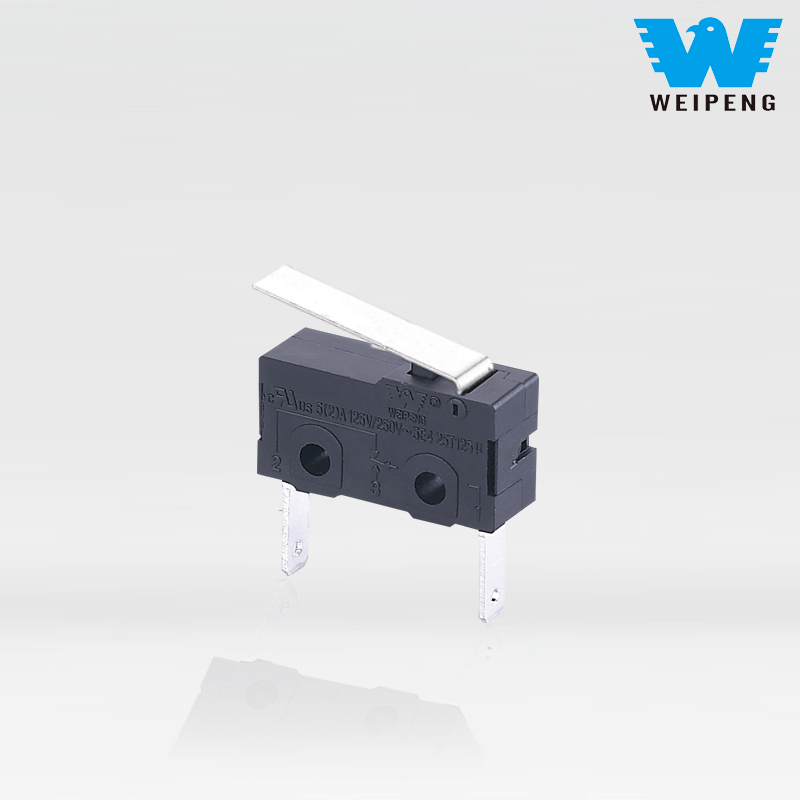

HK-04G-L is a small micro switch produced by Yueqing Tongda Wire Electric Factory, under the brand WEIPENG. Thanks to its compact design and stable performance, this product is widely used in household appliances, electronic equipment, and industrial automation.

Product Features

Compact Structure: Small size (approximately 20 x 10 x 6mm), easy for integrated installation

Fast Action: Uses a snap-action mechanism, small contact spacing, quick response

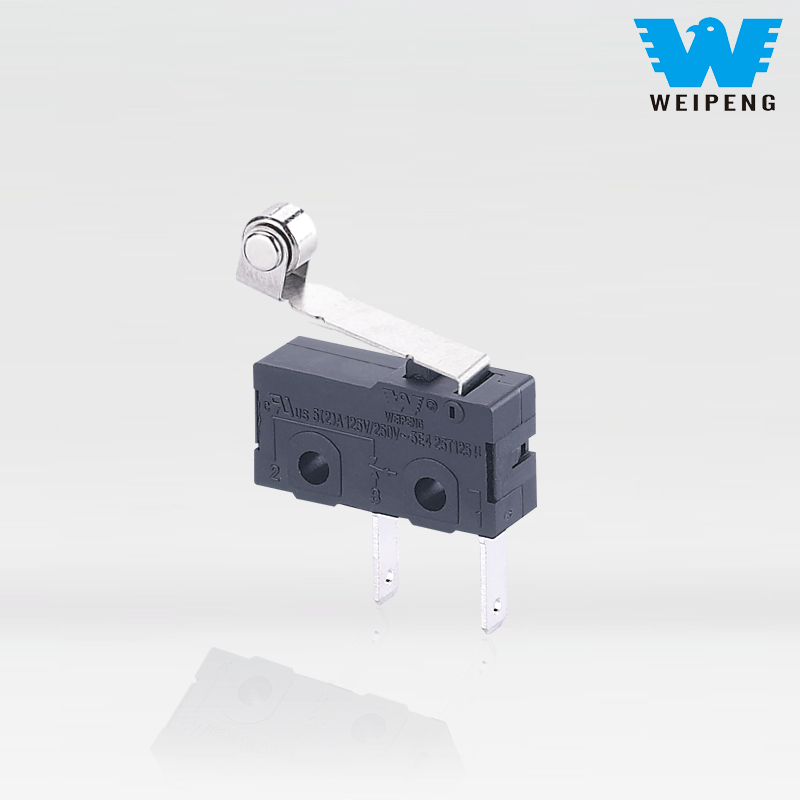

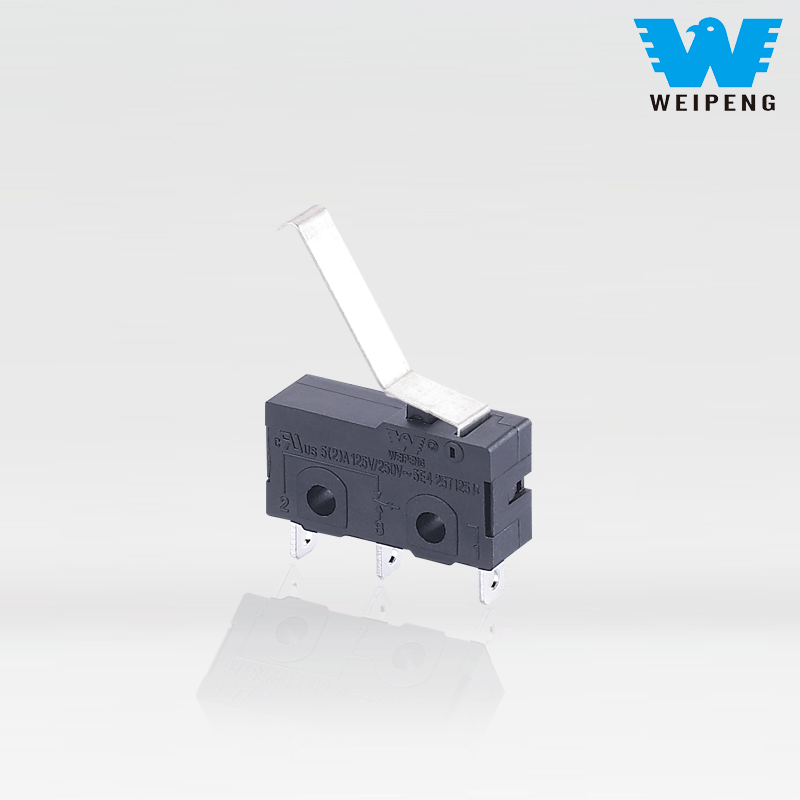

Various Actuators: Can be equipped with roller levers, spring levers, and other drive forms

Long Life: Mechanical life can reach over 100,000 cycles, high reliability

Micro Switch Application

Micro switches are widely used and reliable in performance, mainly applied in:

- Household appliances: refrigerator lights, microwave oven door locks, washing machine lid switches, and toaster timers.

- Industrial equipment: heavy-duty models suitable for conveyor belts, machinery, and control panels (dustproof and moisture-proof).

- Automotive field: windshield wipers, door-ajar indicators — capable of withstanding vibration and extreme temperatures.

- Electronic devices: miniature switches for remote controls and game controllers (responsive and long-lasting).

Micro Switch Specification

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
