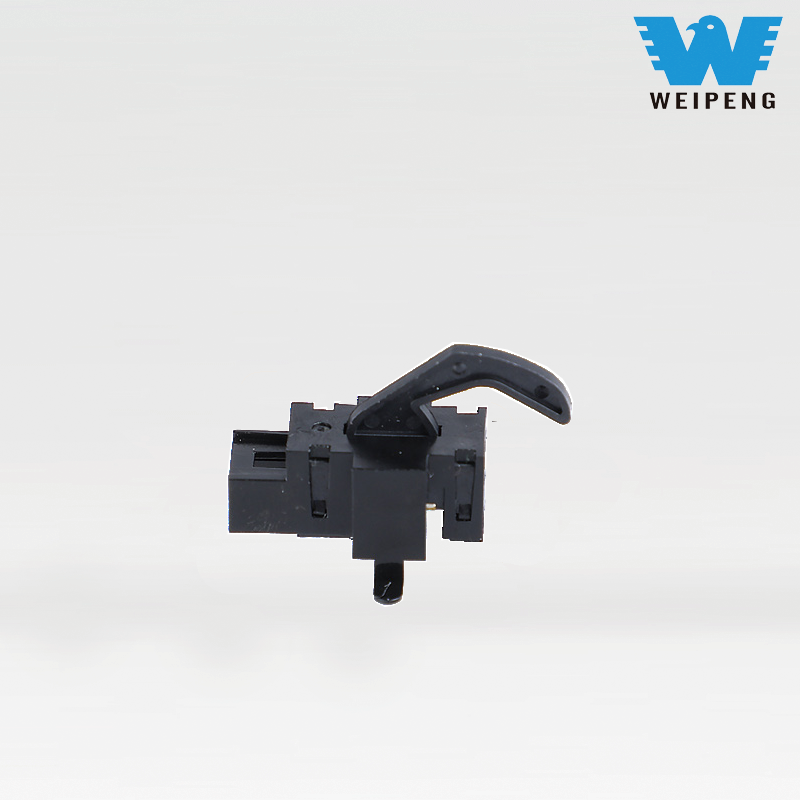

Micro Switch Low-Force Precision

Micro Switch Low-Force Precision has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small.This micro switch can be applied in multiple scenarios, such as consumer electronics & smart wearable devices, high-end medical equipment, automotive electronics & smart cockpits, industrial automation & robotics, as well as military and aerospace applications. It incorporates key core technologies, utilizing ultra-low force structural design and long-life material processes while enhancing environmental adaptability.

Model:HK-23

Send Inquiry

Product Description

WEIPENG® is a leading China Micro Switch Low Force manufacturers, suppliers and exporter.

Tongda Micro Switch Low-Force Precision Introduction

Micro switches are generally based on unassisted compression accessories, and derive small stroke type and large stroke type. According to the different compression accessories added, it can be divided into various forms such as button type, reed roller type, lever roller type, short boom type, long boom type, etc.

Tongda Micro Switch Low-Force Precision Application

It can realize the automatic control of electronic products, and also realize the safety protection of electronic products. At present, microswitches have been widely used in electronic products, instrumentation, household appliances and other fields, and also have very important applications in aerospace, aviation, missiles and other national defense and military fields.

Tongda Micro Switch Low Force Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5mA 24VDC
2	Contact Resistance		≤500mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/5mA/60S
		Between terminals and the metal frame	1500V/5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-10~70℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
