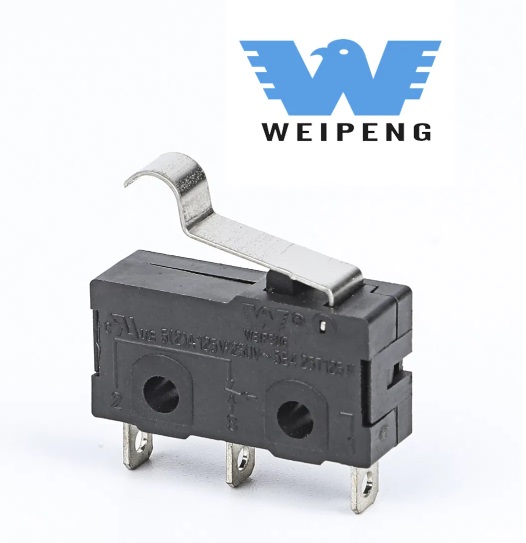

Microwave Micro Switch with Special Lever

Microwave Micro Switch with Special Lever

Microwave Micro Switch with Special Lever has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small

Model:HK-04G-LZ-105

Send Inquiry

Product Description


WEIPENG® is a leading China Microwave Micro Switch with Special Lever manufacturers, suppliers and exporter.

Tongda Wire Electric MMicrowave Micro Switch with Special Lever Introduction


Micro switch is a contact mechanism with a small contact interval and quick action mechanism, with the specified stroke and the specified force for switching action, covered with a shell, and its outside has a drive rod of a switch, because the contact spacing of the switch is relatively small, so the name micro switch, also known as sensitive switch.


Tongda Wire Electric Microwave Micro Switch with Special Lever Application


It can realize the automatic control of electronic products, and also realize the safety protection of electronic products. At present, microswitches have been widely used in electronic products, instrumentation, household appliances and other fields, and also have very important applications in aerospace, aviation, missiles and other national defense and military fields.


Tongda Wire Electric Microwave Micro Switch with Special Lever Parameter (Specification)

Switch Technical Characteristics:
ITEM Technical Parameter Value
1 Electrical Rating 5(2)A 125V/250VAC 10(3)125V/250VAC
2 Contact Resistance ≤50mΩ  Initial value
3 Insulation Resistance ≥100MΩ  (500VDC)
4
Dielectric
Voltage
Between
non-connected terminals
500V/0.5mA/60S
Between terminals
and the metal frame
1500V/0.5mA/60S
5 Electrical Life ≥10000 cycles
6 Mechanical Life ≥100000 cycles
7 Operating Temperature -25~125℃
8 Operating Frequency Electrical :15 cycles
Mechanical :60 cycles
9 Vibration Proof Vibration Frequency :10~55HZ;
Amplitude :1.5mm;
Three directions :1H
10 Solder Ability :
More than 80% of immersed part
shall be covered with solder
Soldering Temperature : 235±5℃
Immersing Time :2~3S
11 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering :300±5℃ 2~3S
12 Safety Approvals UL、CSA、VDE、ENEC、CE
13 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure : 86~106KPa


Tongda Wire Electric Microwave Micro Switch with Special Lever Details
