Small switches for household appliances

WEIPENG® has established itself as a top-tier Small switches for household appliances manufacturer and supplier in China, providing quality micro switch solutions for many years. You can rest assured to buy customized Micro Switch from us.

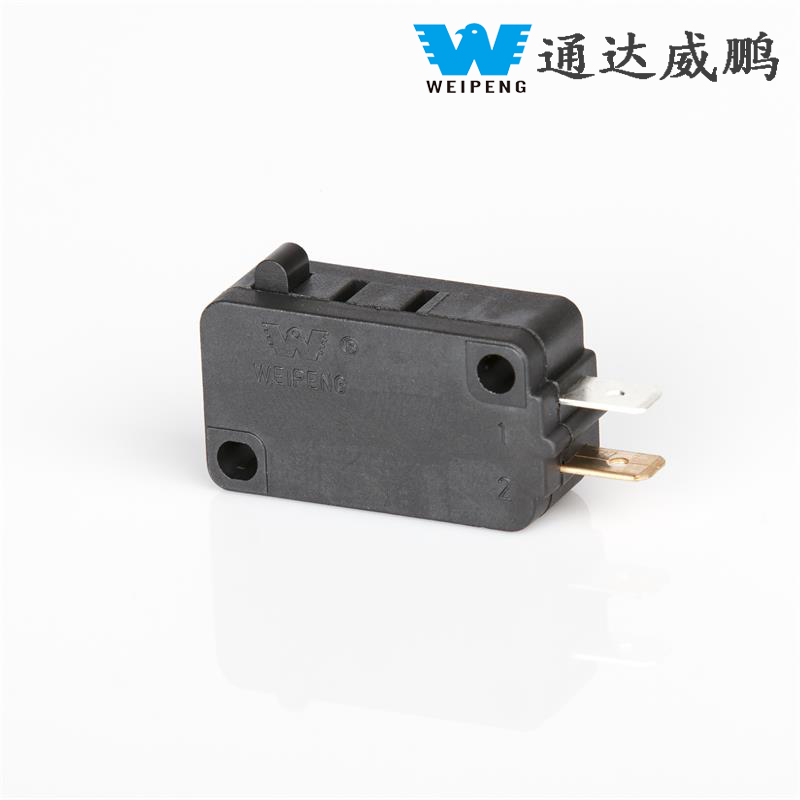

Model:HK-14-1N-000

Send Inquiry

Product Description

WEIPENG® is a leading China Small switches for household appliances manufacturers, suppliers and exporter.

Product Introduction

water heater micro switch is a kind of pressure actuated fast switch, also known as sensitive switch. Its working principle is that external mechanical force exerts force on the action reed through the transmission element (press pin, button, lever, roller, etc.), and generates instantaneous action after the energy accumulates to the critical point, so that the moving contact at the end of the action reed is quickly connected or disconnected from the stationary contact. When the force on the transmission element is removed, the action reed produces reverse action force. When the reverse travel of the transmission element reaches the action critical point of the reed, the reverse action is completed instantaneously.

Product Parameter (Specification)

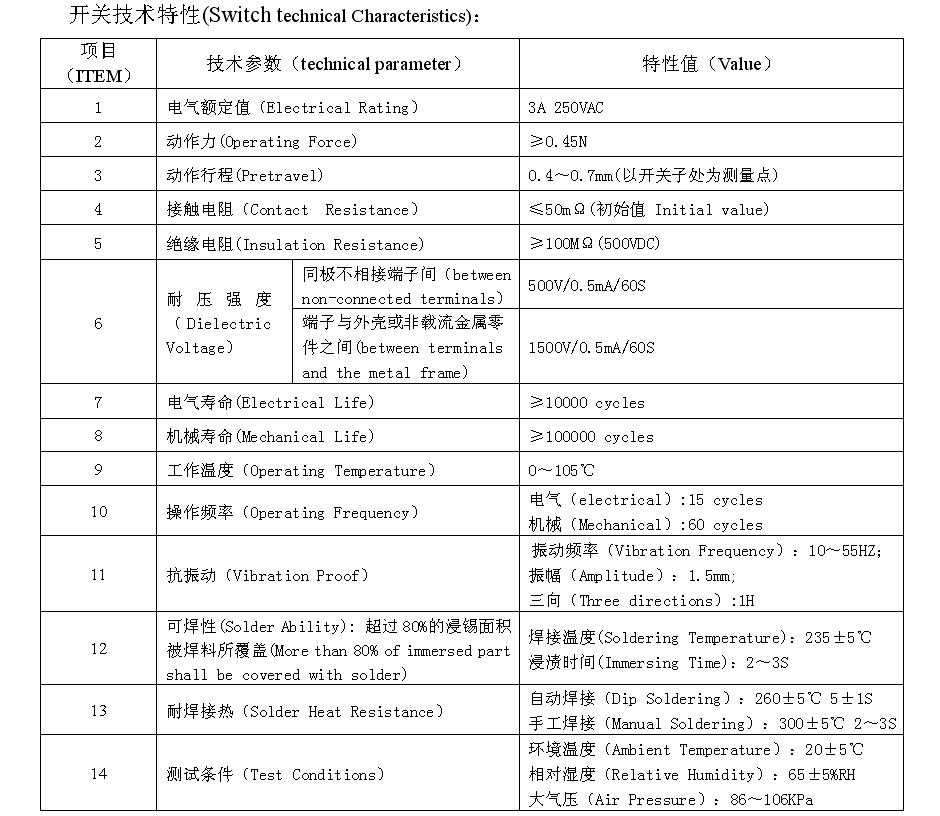

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		3A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~105℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Product Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

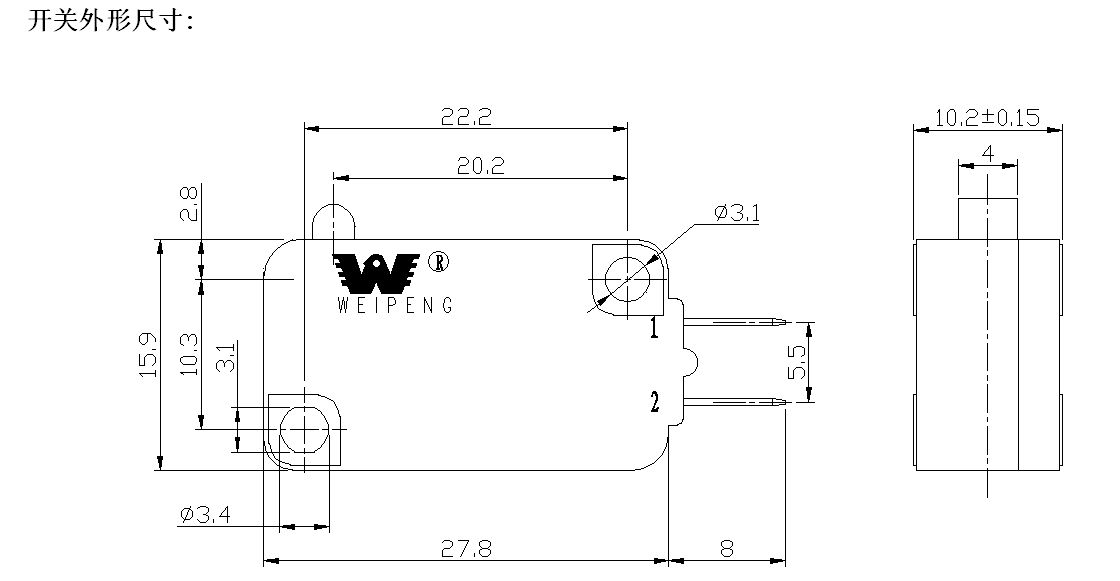

Product Details
