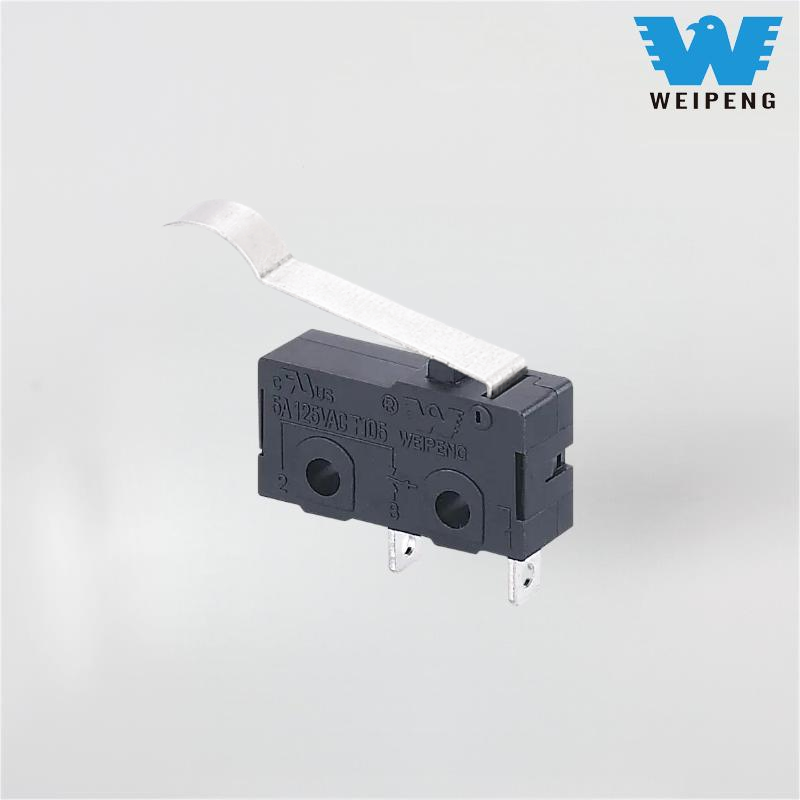

Two-Legged Long-Handle Coffee Machine Micro Switch Reset Switch

Two-Legged Long-Handle Coffee Machine Micro Switch Reset Switch as a representative product of Tongda WEIPENG® that embodies the integration of core standardization and customization. As a manufacturer and wholesaler, the core design principle of the durable smart appliance reset switch produced by our own factory is 'stability, reliability, and scenario compatibility.' Rating: 5A 250VAC Temperature Range: -40°C~+125°C IP Code: IP40 Dimension: 19.8*10.6*6.4mm Approval：UL, ENEC, CSA, CE, VDE

Model: HK-04G-LD-029

Send Inquiry

Product Description

WEIPENG® is a leading Two-Legged Long-Handle Coffee Machine Micro Switch Reset Switch manufacturers, suppliers and exporter.

Micro Switch Introduction

The HK-04G-L is a high-precision snap-action micro switch with a lever handle. It is a general-purpose fundamental precision control component with a compact and small structure. Its internal mechanical design is mature, providing stable snap-on and snap-off performance. It is widely used in various small household appliances, smart devices, industrial limit controls, kitchen and bathroom appliances, and automation equipment. The switch features a standard three-pin single-pole double-throw circuit configuration, capable of supporting both normally open and normally closed circuits simultaneously. It can flexibly meet various control requirements such as device door detection, travel limits, safety interlocks, and position signal feedback, offering strong versatility and high compatibility for replacement.

From the perspective of practical application scenarios, the HK-04G-L, with its unique bent-handle lever structure, is highly suitable for devices with limited space that require long-distance trigger detection. It is widely compatible with safety switches of kitchen small appliances such as air fryers, ovens, and electric heaters; travel limit control for various power tools; open/close detection for smart devices; signal control for small instruments and meters; as well as internal circuit control components of various household appliances. Its standardized dimensions allow compatibility with most switches of the same specification on the market, enabling direct factory replacement and maintenance without modifying the internal installation structure of the device.

Micro Switch Application

With features such as small size, SPDT double-circuit switching, high temperature resistance, and long service life, the applications are extensive:

Kitchen small appliances: safety switches for air fryers, microwaves, ovens, and electric fryer doors

Small industrial/electric equipment: limit switches for power tools, small machinery, electric actuators, and lifting equipment

Home electronics: interlocking protection for smart door locks, small instruments, and equipment covers

Automotive accessories: small onboard control mechanisms, seat/sunroof position detection switches

General maintenance replacement: universal replacement for various old micro switches of the same specifications

Micro Switch Specification

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
