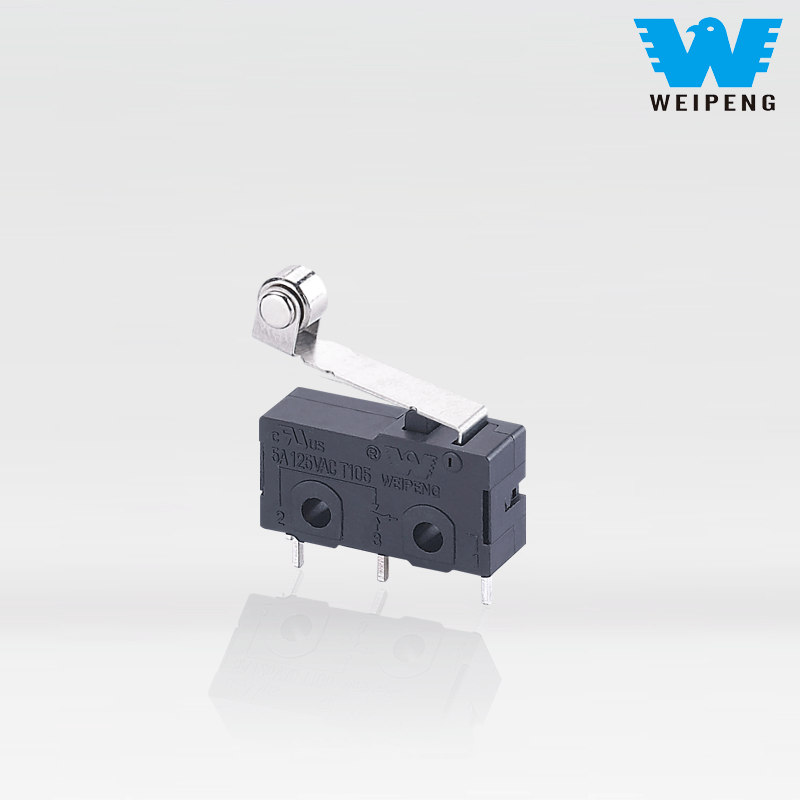

Weipeng 3-Leg Food Processor Soy Milk Maker Micro Switch 5A 125V

Weipeng 3-Leg Food Processor Soy Milk Maker Micro Switch 5A 125V as a representative product of Tongda WEIPENG that embodies the integration of core standardization and customization. As a manufacturer and wholesaler, the core design principle of the durable smart appliance reset switch produced by our own factory is 'stability, reliability, and scenario compatibility.' Rating: 5A 250VAC Temperature Range: -40°C~+125°C IP Code: IP40 Dimension: 19.8*10.6*6.4mm Approval：UL, ENEC, CSA, CE, VDE

Model:HK-04G-LZ-120

Send Inquiry

Product Description

WEIPENG® is a leading Weipeng 3-Leg Food Processor Soy Milk Maker Micro Switch 5A 125V manufacturer, suppliers and exporter.

Micro Switch Introduction

The HK-04G-L core advantage lies in its snap-action mechanism. Unlike sliding contacts that can bounce or wear out, this switch uses a spring-loaded lever that snaps from one position to another instantly. This "snap" removes the risk of arcing (sparks) and ensures a clean signal every time.

Typical applications (Where will you find it?):

You will find this model inside 3D printers for end-stop detection, in mouse buttons for gamers, and in automotive door latches. Its low current rating (usually under 5A) makes it perfect for logic-level circuits (PCBs) rather than heavy power tools.

Micro Switch Application

Micro switches are widely used and reliable in performance, mainly applied in:

Home Appliances: Door/limit sensing for microwaves, washing machines, rice cookers

Industrial Equipment: Automated lines, power tools, sensor actuation

Electronic Devices: Instruments, power control boards, security equipment

Micro Switch Specification

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
