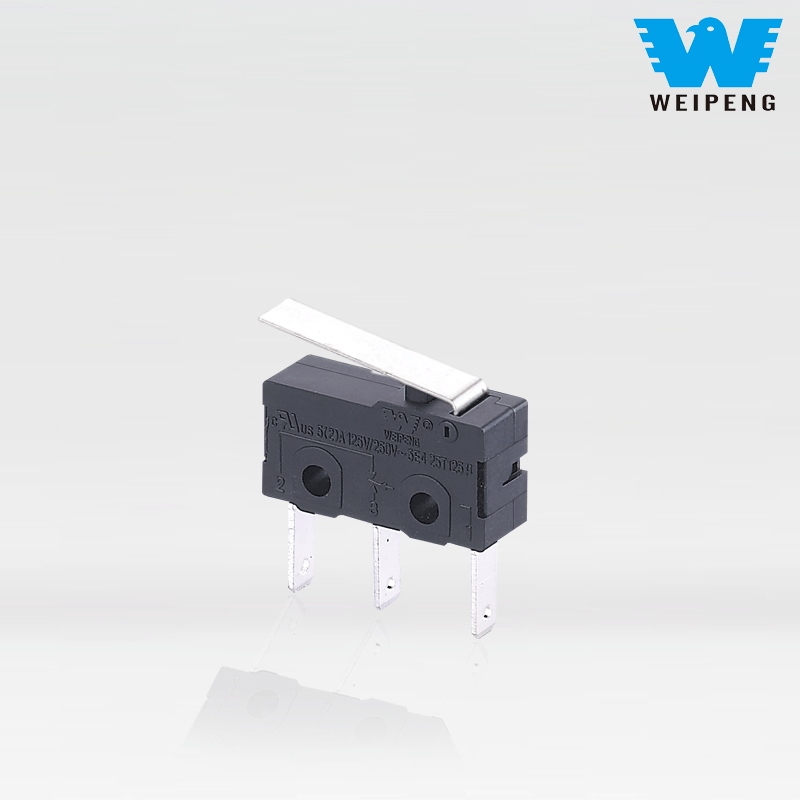

Weipeng 3-Leg Food Processor Soy Milk Maker Microwave Micro Switch 5A 125V

Weipeng 3-Leg Food Processor Soy Milk Maker Microwave Micro Switch 5A 125V as a representative product of Tongda WEIPENG that embodies the integration of core standardization and customization. As a manufacturer and wholesaler, the core design principle of the durable smart appliance reset switch produced by our own factory is 'stability, reliability, and scenario compatibility.' Rating: 5A 250VAC Temperature Range: -40°C~+125°C IP Code: IP40 Dimension: 19.8*10.6*6.4mm Approval：UL, ENEC, CSA, CE, VDE

Model:HK-04G-LZ-123

Send Inquiry

Product Description

WEIPENG® is a leading Weipeng 3-Leg Food Processor Soy Milk Maker Microwave Micro Switch 5A 125V manufacturer, suppliers and exporter.

Micro Switch Introduction

The HK-04G-L is a precision-engineered miniature snap-action switch built for consistent, repeatable performance in compact electronic and electrical systems. Designed with a dedicated actuating lever and stable PCB-mount terminals, it delivers reliable circuit control with precise actuation response, low operating force, and stable contact output.

Featuring high-quality internal components and a robust flame-retardant housing, this switch maintains stable electrical performance under frequent switching and varying environmental conditions. Its compact outline and standardized pin layout support high-efficiency assembly, making it an ideal control component for position detection, limit protection, mode switching, and safety interlock applications.

Micro Switch Application

Micro switches are widely used and reliable in performance, mainly applied in:

Home Appliances: Door/limit sensing for microwaves, washing machines, rice cookers

Industrial Equipment: Automated lines, power tools, sensor actuation

Electronic Devices: Instruments, power control boards, security equipment

Micro Switch Specification

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
