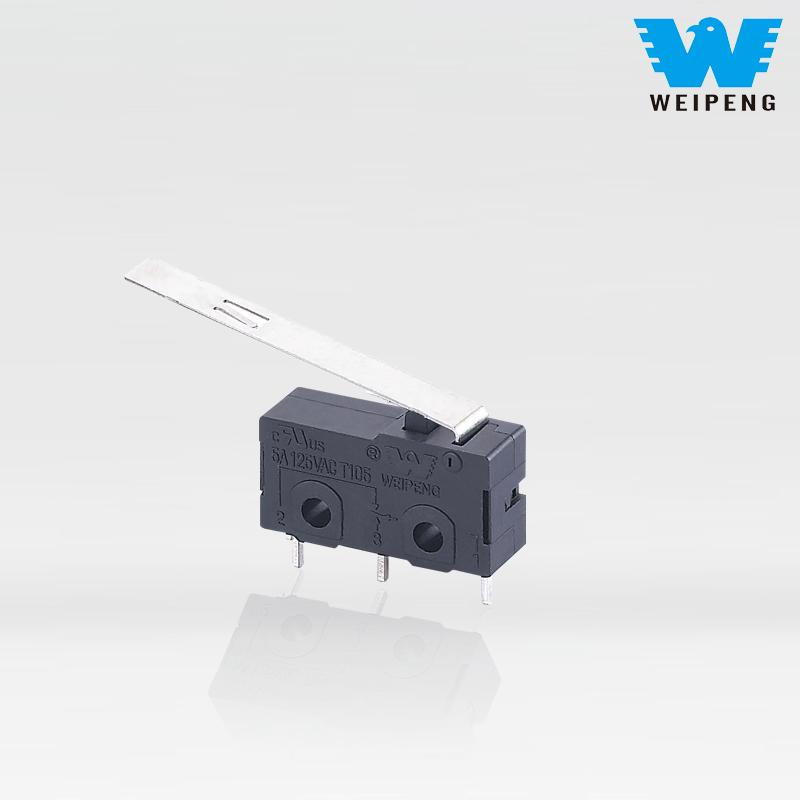

Weipeng 3-Pin 25t125 Smart Home Appliance Micro Switch

Weipeng 3-Pin 25t125 Smart Home Appliance Micro Switch as a representative product of Tongda WEIPENG that embodies the integration of core standardization and customization. As a manufacturer and wholesaler, the core design principle of the durable smart appliance reset switch produced by our own factory is 'stability, reliability, and scenario compatibility.' Rating: 5A 250VAC Temperature Range: -40°C~+125°C IP Code: IP40 Dimension: 19.8*10.6*6.4mm Approval：UL, ENEC, CSA, CE, VDE

Model:HK-04G-LZ-025

Send Inquiry

Product Description

WEIPENG® is a leading Weipeng 3-Pin 25t125 Micro Switch manufacturers, suppliers and exporter.

Micro Switch Introduction

The HK-04G-L is a practical medium-sensitivity lever micro switch widely recognized in the electronic component industry. With refined structural design and stable working performance, it solves daily circuit control needs that neither ultra-sensitive micro switches nor high-current heavy-duty switches can cover perfectly. It is a cost-effective general-purpose component favored by bulk buyers and equipment manufacturers.

Yueqing Tongda supplies fully qualified HK-04G-L micro switches with steady stock supply. Our products keep uniform dimensional tolerance and stable batch quality, supporting regular bulk orders and customized terminal adjustment. With balanced durability and reasonable pricing, they meet long-term component sourcing requirements for small and medium-sized electronics factories.

Micro Switch Application

Micro switches are widely used and reliable in performance, mainly applied in:

- Household appliances: refrigerator lights, microwave oven door locks, washing machine lid switches, and toaster timers.

- Industrial equipment: heavy-duty models suitable for conveyor belts, machinery, and control panels (dustproof and moisture-proof).

- Automotive field: windshield wipers, door-ajar indicators — capable of withstanding vibration and extreme temperatures.

- Electronic devices: miniature switches for remote controls and game controllers (responsive and long-lasting).

Micro Switch Specification

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
