Weipeng 5A Home Appliance Food Processor Micro Switch

Weipeng 5A Home Appliance Food Processor Micro Switch as a representative product of Tongda WEIPENG that embodies the integration of core standardization and customization. As a manufacturer and wholesaler, the core design principle of the durable smart appliance reset switch produced by our own factory is 'stability, reliability, and scenario compatibility.' Rating: 5A 250VAC Temperature Range: -40°C~+125°C IP Code: IP40 Dimension: 19.8*10.6*6.4mm Approval：UL, ENEC, CSA, CE, VDE

Model:HK-04G-LZ-119

Send Inquiry

Product Description

WEIPENG® is a leading Weipeng 5A Home Appliance Food Processor Micro Switch manufacturer, suppliers and exporter.

Micro Switch Introduction

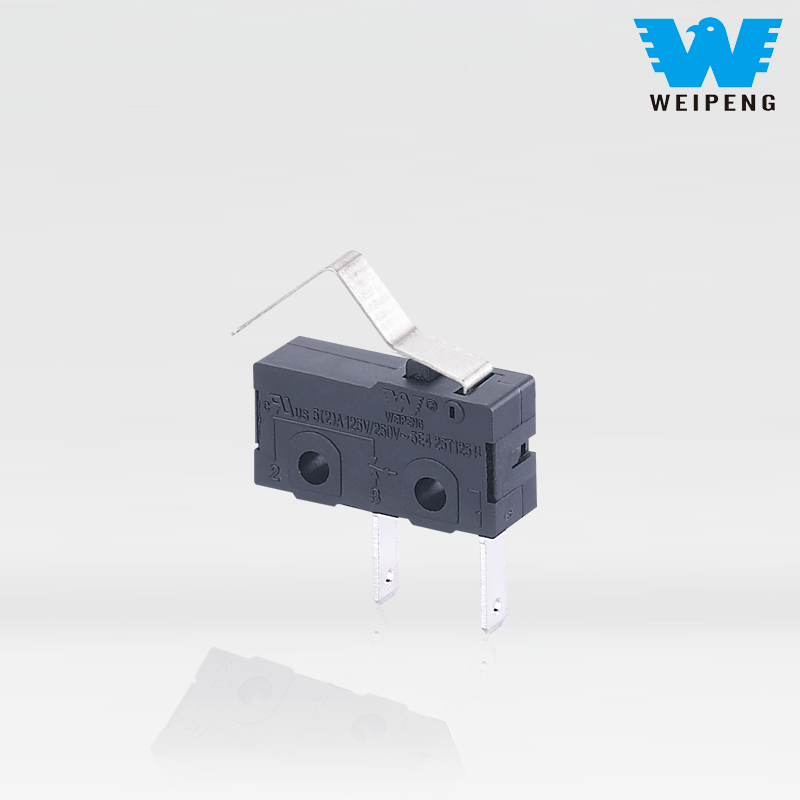

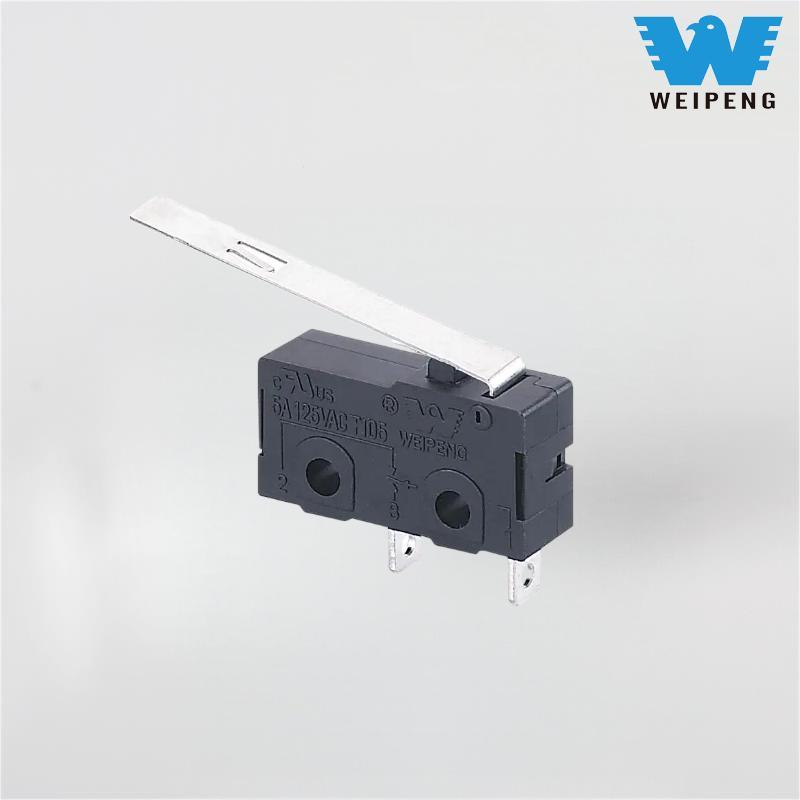

The HK-04G-L is a compact hinge-lever microswitch featuring an SPDT (Single-Pole Double-Throw) 3-pin PCB terminal design. Equipped with a lightweight metal lever, it delivers fast action, high reliability, and long service life, compatible with both AC and DC circuits. It is widely used for limit and position sensing in home appliances, industrial controls, and electronic devices.

Performance Advantages

Fast Action: Short travel (0.3–1.0mm), instantaneous switching, no bounce

High Durability: 1,000,000-cycle mechanical life, ideal for high-frequency operation

Environmental Stability: Wide temperature range & IP41 protection for diverse conditions

Easy Installation: 3-pin straight PCB terminals, space-saving & assembly-friendly

Micro Switch Application

Micro switches are widely used and reliable in performance, mainly applied in:

Home Appliances: Door/limit sensing for microwaves, washing machines, rice cookers

Industrial Equipment: Automated lines, power tools, sensor actuation

Electronic Devices: Instruments, power control boards, security equipment

Micro Switch Specification

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
