Weipeng Dust-Proof Roller Beater Micro Switch

Weipeng Dust-Proof Roller Beater Micro Switch as a representative product of Tongda WEIPENG that embodies the integration of core standardization and customization. As a manufacturer and wholesaler, the core design principle of the durable smart appliance reset switch produced by our own factory is 'stability, reliability, and scenario compatibility.' Rating: 5A 250VAC Temperature Range: -40°C~+125°C IP Code: IP40 Dimension: 19.8*10.6*6.4mm Approval：UL, ENEC, CSA, CE, VDE

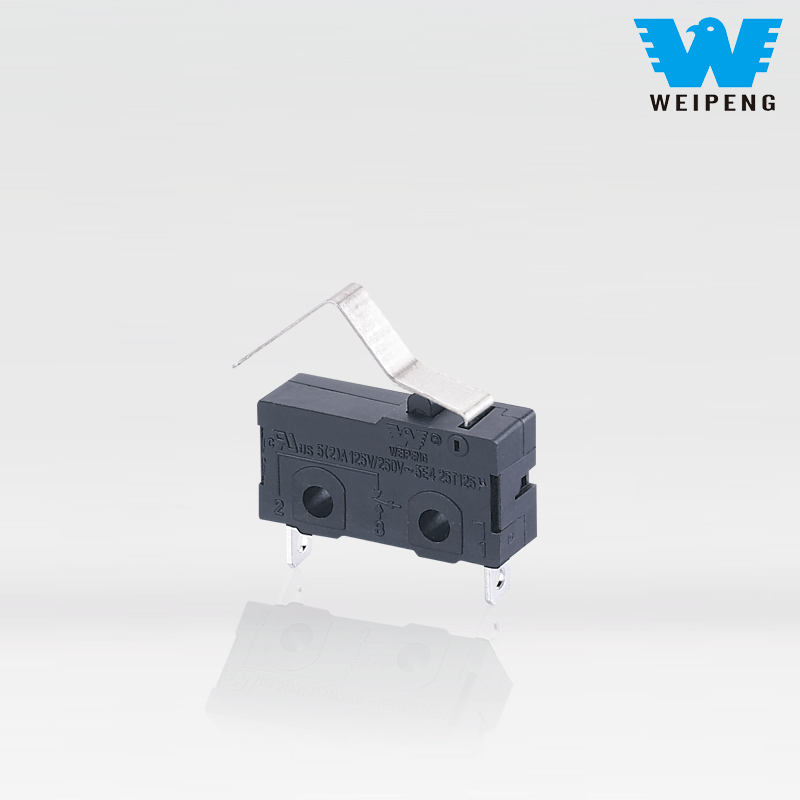

Model:HK-04G-LT-134

Send Inquiry

Product Description

WEIPENG® is a leading Weipeng Dust-Proof Roller Beater Micro Switch manufacturers, suppliers and exporter.

Micro Switch Introduction

This model carries diversified current ratings covering 5A and 10A, compatible with AC 125V/250V and DC 12V/24V circuits. Built with anti-arc silver alloy contacts, it maintains low initial contact resistance and stable conduction. With wide working temperature from -25℃ to 125℃ and IP40 dustproof protection grade, it adapts to mild industrial and indoor appliance environments steadily. Its compact dimension at 19.8×10.6×6.4mm realizes space-saving PCB mounting on tight circuit boards.

Equipped with customized thin bent lever actuator, HK-04G-L features ultra-small travel snap-action mechanism. Only slight external pressure triggers rapid circuit commutation, with precise operating stroke and clear reset feedback. 3-pin SPDT circuit structure supports normally open and normally closed dual signal output, flexible for diversified circuit logic. The solid PBT flame-retardant housing resists aging, high temperature and mechanical collision, strengthening internal component protection.

Micro Switch Application

Micro switches are widely used and reliable in performance, mainly applied in:

- Household appliances: refrigerator lights, microwave oven door locks, washing machine lid switches, and toaster timers.

- Industrial equipment: heavy-duty models suitable for conveyor belts, machinery, and control panels (dustproof and moisture-proof).

- Automotive field: windshield wipers, door-ajar indicators — capable of withstanding vibration and extreme temperatures.

- Electronic devices: miniature switches for remote controls and game controllers (responsive and long-lasting).

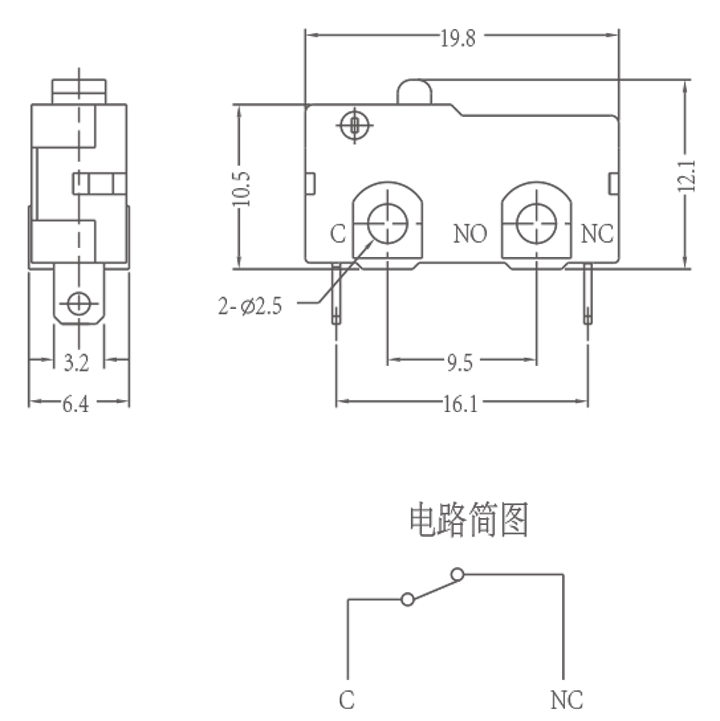

Micro Switch Specification

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
