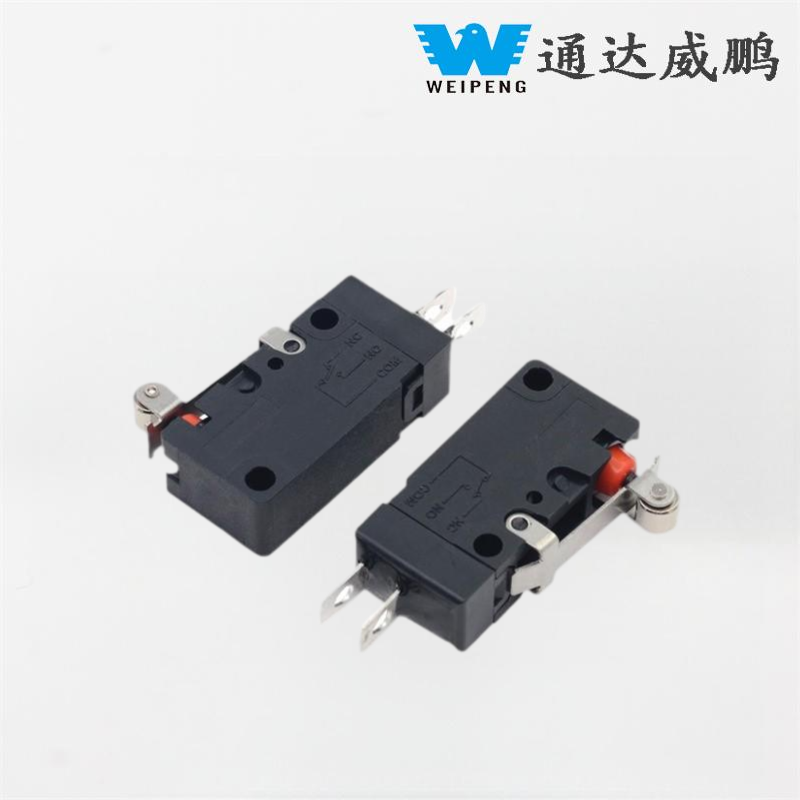

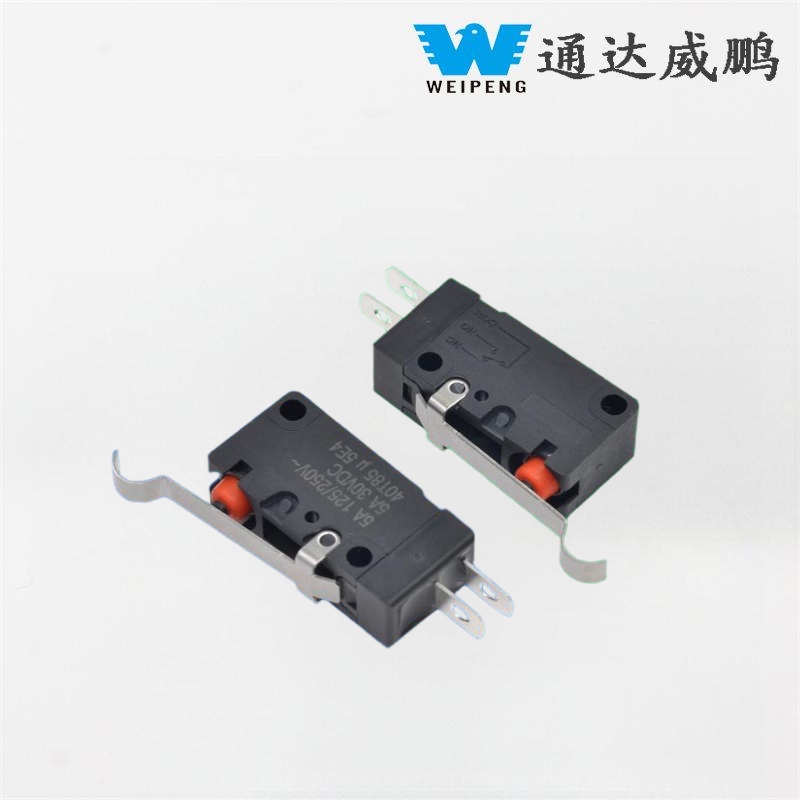

Weipeng Normally Closed Waterproof Micro Switch for Mixer

The FSK-14 features a dual protection design with 'precise sealing and upgraded materials,' fully meeting the IP67 international protection standard (IEC 60529), achieving comprehensive protection against 'complete dust ingress and short-term submersion in 1 meter of water for 30 minutes.' Its sealing structure uses a single reinforced fluororubber O-ring design, with the O-ring diameter 0.2mm larger than the interface groove width. Once assembled, it forms a 30% compression, effectively blocking any paths for moisture and dust intrusion. Additionally, the rear end is tightly pressed against the cable via a PVC sheath, preventing water from seeping in through the cable entry, making it perfectly suitable for workshop spray, outdoor light rain, and other scenarios that do not involve long-term submersion.

The housing is made of flame-retardant PA66 reinforced nylon, treated with high-temperature modification, combining flame resistance (UL94 V-0 rating) with anti-aging performance. Its operating temperature range covers -25°C to 85°C, capable of withstanding high and low-temperature cycles to prevent cracking or performance degradation in extreme environments. The contact system uses highly wear-resistant silver alloy material, optimized through vacuum plating process, with an initial contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ (500VDC), and a terminal withstand voltage of 1500V AC, effectively preventing leakage and contact oxidation in humid environments.

Typical Application Scenarios

This product is specially designed for devices that need dustproof and waterproof protection, such as:

1、Outdoor Equipment: Garden tools, outdoor lighting control boxes, advertising light boxes.

2、Industrial Equipment: Food processing machinery, packaging equipment, small water pump control panels, cleaning equipment.

3、Special Vehicles and Facilities: Agricultural machinery, marine equipment, control panels of public facilities.

4、Equipment for Humid Environments: Kitchen appliances, bathroom electrical devices, warehouse cleaning equipment.
