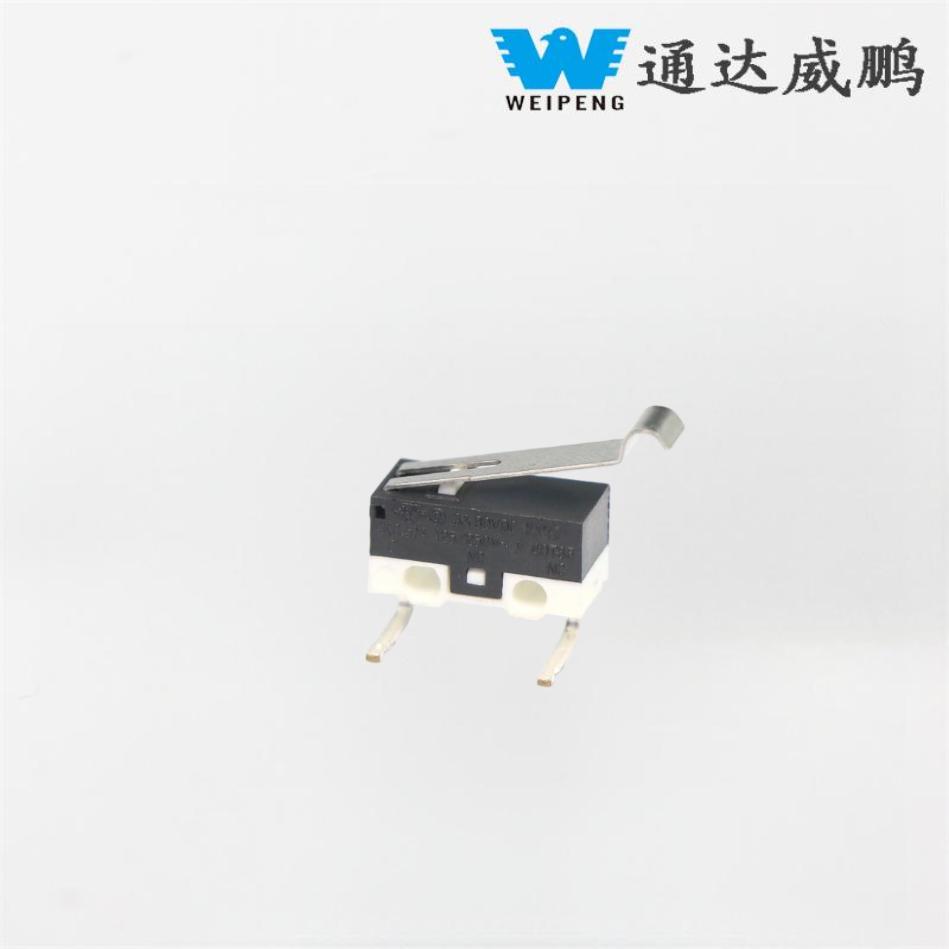

Weipeng Toys Lighting Small Appliance Micro Switch
  • Weipeng Toys Lighting Small Appliance Micro SwitchWeipeng Toys Lighting Small Appliance Micro Switch
  • Weipeng Toys Lighting Small Appliance Micro SwitchWeipeng Toys Lighting Small Appliance Micro Switch
  • Weipeng Toys Lighting Small Appliance Micro SwitchWeipeng Toys Lighting Small Appliance Micro Switch

Weipeng Toys Lighting Small Appliance Micro Switch

As a classic masterpiece by Yueqing Tongda in the field of micro switches, the Weipeng Toys Lighting Small Appliance Micro Switch features the core advantages of 'miniature structure, ultra-long life, and precise triggering,' and is specially designed for human-computer interaction devices such as mice and keyboards, as well as small electronic control applications.

Model:HK-10-020

Send Inquiry

Product Description

WEIPENG® is a leading Weipeng Toys Lighting Small Appliance Micro Switch manufacturers, suppliers and exporter.

Micro Switch Introduction


As a classic masterpiece by Yueqing Tongda in the field of miniature switches, the HK-10 mouse switch features the core advantages of 'miniature structure, ultra-long lifespan, and precise actuation,' specifically designed for human-computer interaction devices such as mice and keyboards, as well as small electronic control applications. Integrating over thirty years of switch manufacturing expertise and patented technology, this product has become a key control component in consumer electronics, industrial control, and smart devices, thanks to its millisecond-level response speed, durability of tens of millions of cycles, and wide compatibility. It has long provided supporting services to well-known electronic brands both domestically and internationally.


The core is compatible with wired mice, wireless mice, game controllers, mechanical keyboards, and other human-computer interaction devices, enhancing the responsiveness of operations and improving the tactile experience. With a lifespan of tens of millions of cycles, it reduces product repair rates. After being applied by a well-known peripheral brand, the after-sales failure rate of related products dropped by 60%.


Micro Switch Parameter (Specification)


ITEM Main Technical Parameters
1 Electrical Rating :1A/3A 250VAC
2 Electrical lifetime : Min.10000 cycles
3 Contact Resistance :<50mΩ
4 Operating force:70±20gf
5 Free position:7.3±0.2mm
6 Operating position:7.0±0.2mm
7 Ambient temperature:T85°
8 Withstand Voltage :Between terminal and terminal 500V/5S/5mA;
Between terminals and case 1500/5S/5mA
9 Insulation Resistance:>100MΩ  Test Voltage 500VDC
10 Proof Tracking Index PTI :175V

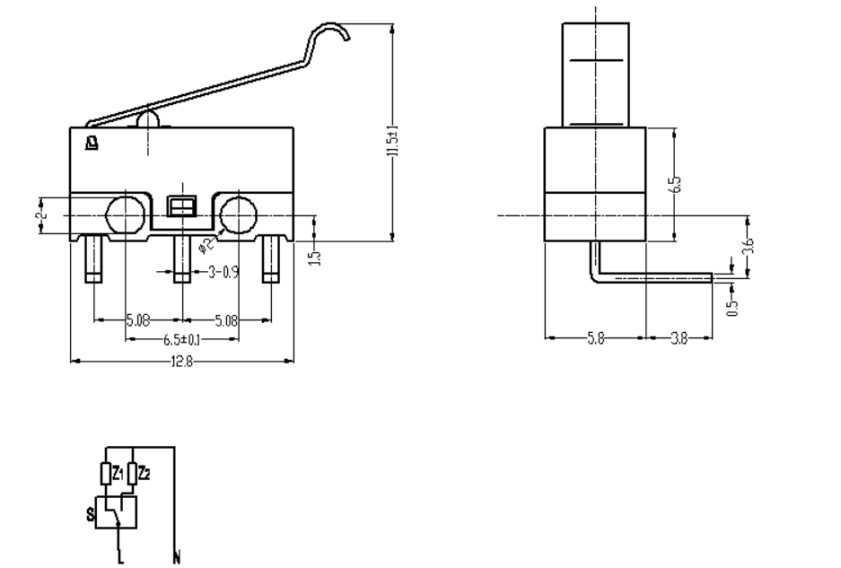

Micro Switch Details
