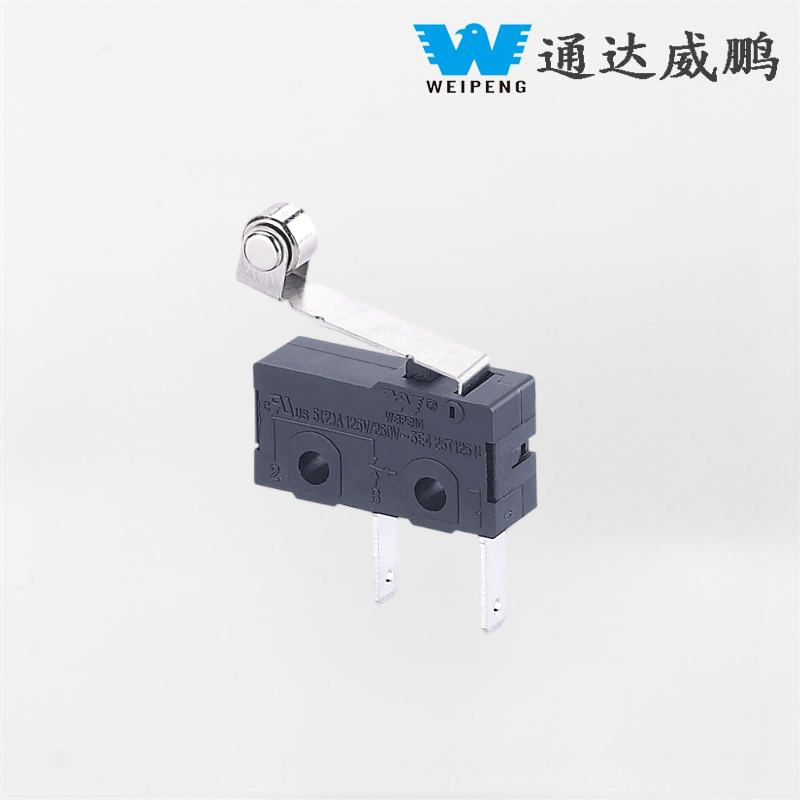

Weipeng Two-Legged Handle Blender Micro Switch Reset Switch

Weipeng Two-Legged Handle Blender Micro Switch Reset Switch as a representative product of Tongda WEIPENG that embodies the integration of core standardization and customization. As a manufacturer and wholesaler, the core design principle of the durable smart appliance reset switch produced by our own factory is 'stability, reliability, and scenario compatibility.' Rating: 5A 250VAC Temperature Range: -40°C~+125°C IP Code: IP40 Dimension: 19.8*10.6*6.4mm Approval：UL, ENEC, CSA, CE, VDE

Model:HK-04G-LD-125

Send Inquiry

Product Description

WEIPENG® is a leading Weipeng Two-Legged Handle Blender Micro Switch Reset Switch manufacturer, supplier and exporter.

Micro Switch Introduction

Working Principle and Structural Features

The HK-04G-L uses a snap-action mechanism, with a precision spring plate as its core internal structure.

As a mass-produced general-purpose micro switch, each unit of this model undergoes strict continuity tests, voltage resistance tests, and random inspections for service life, ensuring consistent performance for every product. The HK-04G-L micro switch by Tongda has improved the internal spring resilience and contact plating process on the basis of the standard specifications, providing better product consistency, reduced operational deviation over extended use, and enhanced vibration resistance. Additionally, it holds complete safety certifications and offers stable batch supply. It is suitable for both full-device production in electrical factories and after-sales maintenance replacement parts, fully meeting the needs of customers for export, bulk procurement, and customized engineering solutions.

Micro Switch Application

Micro switches are widely used and reliable in performance, mainly applied in:

- Household appliances: refrigerator lights, microwave oven door locks, washing machine lid switches, and toaster timers.

- Industrial equipment: heavy-duty models suitable for conveyor belts, machinery, and control panels (dustproof and moisture-proof).

- Automotive field: windshield wipers, door-ajar indicators — capable of withstanding vibration and extreme temperatures.

- Electronic devices: miniature switches for remote controls and game controllers (responsive and long-lasting).

Micro Switch Specification

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
