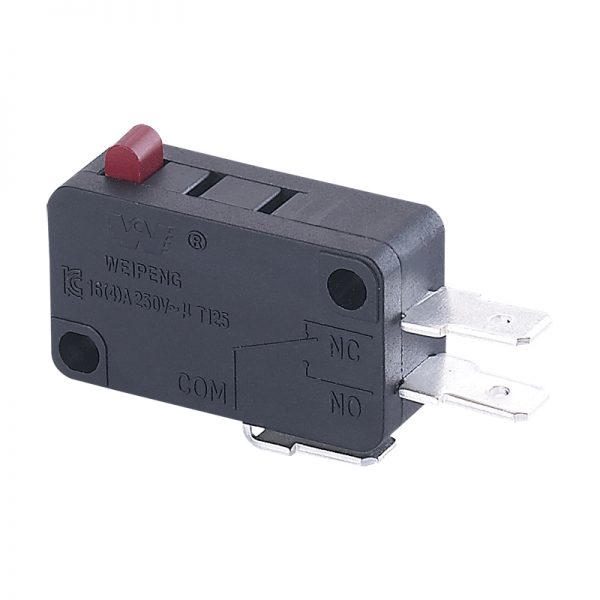

Micro Switch SPDT
  • Micro Switch SPDTMicro Switch SPDT

Micro Switch SPDT

High quality Micro Switch SPDT is offered by China manufacturers WEIPENG®. We use only the best materials and employ strict quality control measures to ensure that our products meet or exceed the expectations of our customers.


Send Inquiry

Product Description

WEIPENG® is a professional leader China Micro Switch SPDT manufacturers with high quality and reasonable price. Welcome to contact us.

Tongda Wire Electric Micro Switch SPDT Introduction

Switch Technical Characteristics:
ITEM Technical Parameter Value
1 Electrical Rating 5(2)A/10A/16(3)A/21(8)A 250VAC
2 Contact Resistance ≤30mΩ Initial value
3 Insulation Resistance ≥100MΩ (500VDC)
non-connected terminals
Between terminals
and the metal frame
5 Electrical Life ≥50000 cycles
6 Mechanical Life ≥1000000 cycles
7 Operating Temperature -25~125℃
8 Operating Frequency electrical  :15 cycles
Mechanical :60 cycles
9 Vibration Proof Vibration Frequency : 10~55HZ;
Amplitude :1.5mm;
Three directions :1H
10 Solder Ability :
More than 80% of immersed part
shall be covered with solder
Soldering Temperature :235±5℃
Immersing Time :2~3S
11 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering : 300±5℃ 2~3S
12 Safety Approvals UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure :86~106KPa

Tongda Wire Electric Micro Switch SPDT Specification

Although the micro switch SPDT is very small, it plays an irreplaceable role in People's Daily life. It can perform automatic control and safety maintenance in equipment requiring frequent replacement of power circuits. At present, it has been widely used in electronic equipment, instrument equipment, mining, power supply systems, electrical products and equipment, aerospace, aviation companies, cruise missiles, heavy tanks and other defense industries. In addition, they can be used in laptop mice, vehicle mice, automotive electronics, communications equipment, military merchandise and its test equipment, natural gas water heaters, gas stoves, small appliances, microwave ovens, rice cookers, water pump pressure switch equipment ancillary facilities, medical equipment, smart buildings, pneumatic tools, general electrical equipment and wireless devices, 24 hour timers.

Tongda Wire Electric Micro Switch SPDT Feature And Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

Tongda Wire Electric Micro Switch SPDT Details
