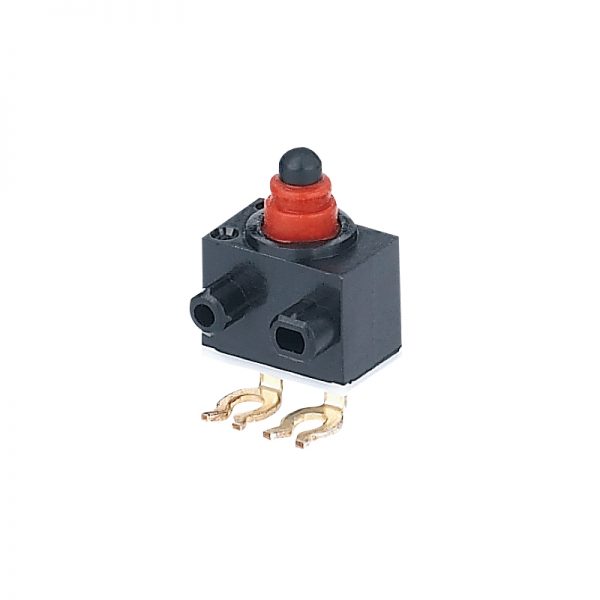

Micro Switch With Waterproof
  • Micro Switch With WaterproofMicro Switch With Waterproof

Micro Switch With Waterproof

WEIPENG® has established itself as a Micro Switch With Waterproof manufacturer and supplier in China, providing quality 4A 30VDC waterproof micro switch solutions for many years. For more information on the 4a 30VDC Waterproof Micro Switch, please feel free to contact us.


Send Inquiry

Product Description

WEIPENG® is a leading China Waterproof Micro Switch manufacturers, suppliers and exporter.

Tongda Micro Switch With Waterproof Introduction

There are many kinds of waterproof micro switch, hundreds of internal structure, according to the volume can be divided into ordinary type, small and ultra-small. According to the protection performance, there are three types of waterproof, dustproof, explosion-proof; It can be divided into single connection type, double connection type and multi connection type according to the disconnection form. There is a strong close waterproof micro switch; According to the breaking ability, it can be divided into ordinary type, DC type, micro current type and large current type.

Tongda Micro Switch With Waterproof Feature And Application

The waterproof microswitch finds extensive use in a variety of harsh environments that are cold, wet, and dusty. These environments include automobiles, spraying equipment, refrigerators, ice makers, bathroom equipment, air conditioning, water heaters, and some outdoor equipment and instruments. Moreover, they are also ideal for use in the charging seats of new energy vehicles, making them a versatile and essential component in various industries.
Switch Technical Characteristics:
ITEM Technical parameter Value
1 Electrical Rating 0.1A/1A/3A 250VAC
2 Operating Force 1.0~2.5N
3 Contact Resistance ≤300mΩ
4 Insulation Resistance ≥100MΩ  (500VDC)
5 Dielectric
non-connected terminals
Between terminals
and the metal frame
6 Electrical Life ≥50000 cycles
7 Mechanical Life ≥100000 cycles
8 Operating Temperature -25~105℃
9 Operating Frequency Electrical :15 cycles
Mechanical :60 cycles
10 Vibration Proof Vibration Frequency :10~55HZ;
Amplitude : 1.5mm;
Three directions :1H
11 Solder Ability :More than 80% of immersed part
shall be covered with solder
Soldering Temperature : 235±5℃
Immersing Time :2~3S
12 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering :300±5℃ 2~3S
13 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure :86~106KPa

Tongda Micro Switch With Waterproof Details
