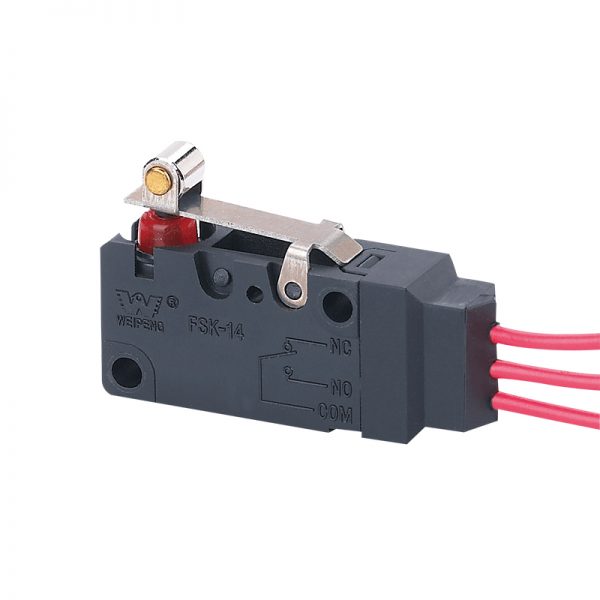

Straight Waterproof Micro Lever
  • Straight Waterproof Micro LeverStraight Waterproof Micro Lever

Straight Waterproof Micro Lever

WEIPENG® is a leading China Straight Waterproof Micro Lever manufacturers, suppliers and exporter. We use only the best materials and employ strict quality control measures to ensure that our products meet or exceed the expectations of our customers.


Send Inquiry

Product Description

WEIPENG® is Straight Waterproof Micro Lever manufacturers and suppliers in China who can wholesale Straight Waterproof Micro Lever. We can provide professional service and better price for you.

Tongda Wire Electric Straight Waterproof Micro Lever Introduction

A Straight Waterproof Micro Lever is a type of switch that uses a small contact interval and a fast-moving mechanism to make and break electrical connections. It has a specified stroke and force required for switching action, and is enclosed by a shell. The external drive rod is designed to be waterproof, making it suitable for use in wet environments.
The switch uses mechanical contacts to achieve its switching function, unlike semiconductor switches that rely on electronic components. This gives the micro switch its unique characteristics, including reliability, durability, and the ability to handle high currents and voltages. Additionally, the waterproof design of the switch makes it ideal for use in a variety of applications where exposure to moisture is a concern.

Tongda Wire Electric Straight Waterproof Micro Lever structure

Switch Technical Characteristics:
ITEM Technical Parameter Value
1 Electrical Rating 5 (2)A 125/250VAC 10(3) 125V/250VAC
2 Operating Force 1.0~5.0N
3 Pretravel 0.6~1.5mm
4 Contact Resistance ≤50mΩ  Initial value
5 Insulation Resistance ≥100MΩ  (500VDC)
non-connected terminals
Between terminals
and the metal frame
7 Electrical Life ≥10000 cycles
8 Mechanical Life ≥100000 cycles
9 Operating Temperature -25~85℃
10 Operating Frequency Electrical :15 cycles
Mechanical :60 cycles
11 Vibration Proof Vibration Frequency :10~55HZ;
Amplitude :1.5mm;
Three directions :1H
12 Solder Ability :
More than 80% of immersed part
shall be covered with solder
Soldering Temperature :235±5℃
Immersing Time : 2~3S
13 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering :300±5℃ 2~3S
14 Safety Approvals UL、CSA、CQC
15 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure :86~106KPa

Tongda Wire Electric Straight Waterproof Micro Lever Working principle

The external mechanical force acts on the action reed through the transmission element (press pin, button, lever, roller, etc.). When the action reed is displaced to the critical point, instantaneous action is generated, so that the moving contact at the end of the action reed is quickly connected or disconnected from the stationary contact.
When the force on the transmission element is removed, the action reed produces reverse action force. When the reverse travel of the transmission element reaches the action critical point of the reed, the reverse action is completed instantaneously. Micro switch contact spacing is small, short travel, according to the power, quick break. The speed of the moving contact has nothing to do with the speed of the transmission element

Tongda Wire Electric Straight Waterproof Micro Lever Details
