Stainless Steel Waterproof Micro Switch

For many years now, WEIPENG® has been a trusted and reputable supplier of high-quality Stainless Steel Waterproof Micro Switches in China. We have a proven track record of providing reliable and cost-effective solutions for our customers, and our products have gained popularity in both the European and American markets.

As a leading manufacturer and supplier of Stainless Steel Waterproof Micro Switches, we are committed to delivering the highest levels of quality and customer service. We use only the best materials and employ strict quality control measures to ensure that our products meet or exceed the expectations of our customers.

Our competitive pricing and long-term partnerships with customers make us an ideal choice for those looking for a reliable and cost-effective solution for their Stainless Steel Waterproof Micro Switch needs in China. Whether you are in the automotive, industrial, or other sectors, we have the expertise and resources to provide the right solution for your specific requirements.

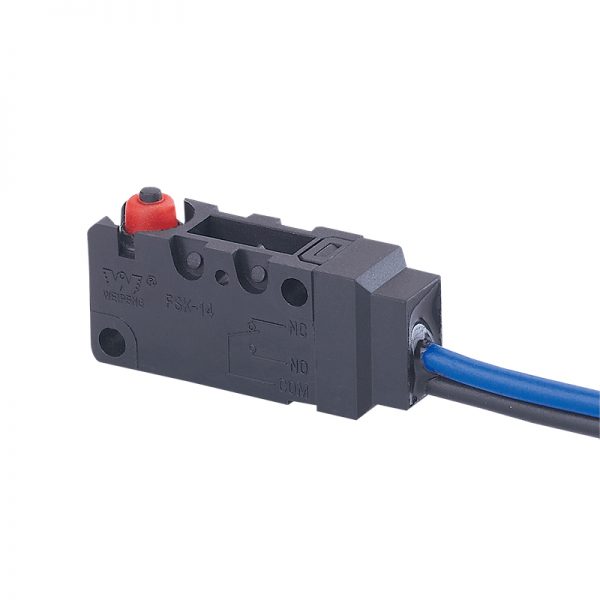

Model:FSK-14-1X-5A-030-TD1.125

Send Inquiry

Product Description

WEIPENG® is a professional leader China Stainless Steel Waterproof Micro Switch manufacturers with high quality and reasonable price. Welcome to contact us.

Tongda Wire Electric Stainless Steel Waterproof Micro Switch Introduction

A Stainless Steel Waterproof Micro Switch is a highly responsive switch that operates using a small contact interval and fast-moving mechanism. It is designed with a specific stroke and force required for switching action, and is encased within a protective shell. The external drive rod of the switch is also waterproof, ensuring that the switch can continue to function reliably even in wet or harsh environments.

One of the key advantages of a waterproof microswitch over a semiconductor switch is its reliance on mechanical contact to achieve the switching function. This allows the switch to function effectively in a wide variety of conditions, including those that are damp or dusty. The switch's robust design and waterproofing features also make it a popular choice for use in automotive and industrial applications, where durability and reliability are essential. Overall, the waterproof microswitch is a highly versatile and effective switching solution that offers numerous benefits over other types of switches.

Tongda Wire Electric Stainless Steel Waterproof Micro Switch Drawing

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5 (2)A 125/250VAC 10(3) 125V/250VAC
2	Operating Force		1.0~5.0N
3	Pretravel		0.6~1.5mm
4	Contact Resistance		≤50mΩ Initial value
5	Insulation Resistance		≥100MΩ (500VDC)
6	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
7	Electrical Life		≥10000 cycles
8	Mechanical Life		≥100000 cycles
9	Operating Temperature		-25~85℃
10	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
11	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
12	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time : 2~3S
13	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
14	Safety Approvals		UL、CSA、CQC
15	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
