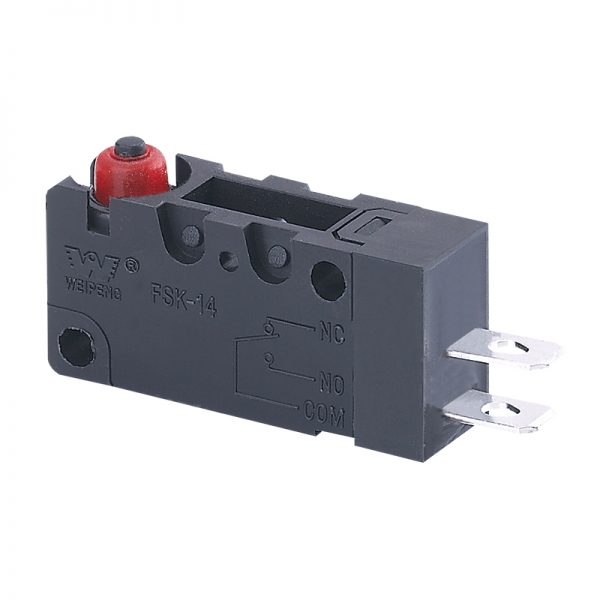

Long Leverage Waterproof Micro Switch

WEIPENG® is Long Leverage Waterproof Micro Switch manufacturers and suppliers in China who can wholesale Long Leverage Waterproof Micro Switch. Because the market for Long Leverage Waterproof Micro Switch is evolving and changing, so we recommend that you collect our website, and we will show you the latest news on a regular basis.

Model:FSK-14-1X-5A-006-TD1

Send Inquiry

Product Description

WEIPENG® is a professional leader China Long Leverage Waterproof Micro Switch manufacturers with high quality and reasonable price. Welcome to contact us.

Tongda Wire Electric long leverage Waterproof Micro Switch Introduction

The utility model relates to a long leverage Waterproof Micro Switch, which is characterized in that it is covered by a shell having a shell. The waterproof micro switch has a contact structure with a small contact interval and a latch mechanism for switching operation with a specified stroke and a specified force. The drive lever is on the outside. The function of the switch is realized by mechanical switching of the contact in contrast to the semiconductor switch with the characteristics of the waterproof micro switch.

Tongda Wire Electric Long Leverage Waterproof Micro Switch technical Characteristics

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5 (2)A 125/250VAC 10(3) 125V/250VAC
2	Operating Force		1.0~5.0N
3	Pretravel		0.6~1.5mm
4	Contact Resistance		≤50mΩ Initial value
5	Insulation Resistance		≥100MΩ (500VDC)
6	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
7	Electrical Life		≥10000 cycles
8	Mechanical Life		≥100000 cycles
9	Operating Temperature		-25~85℃
10	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
11	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
12	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time : 2~3S
13	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
14	Safety Approvals		UL、CSA、CQC
15	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
