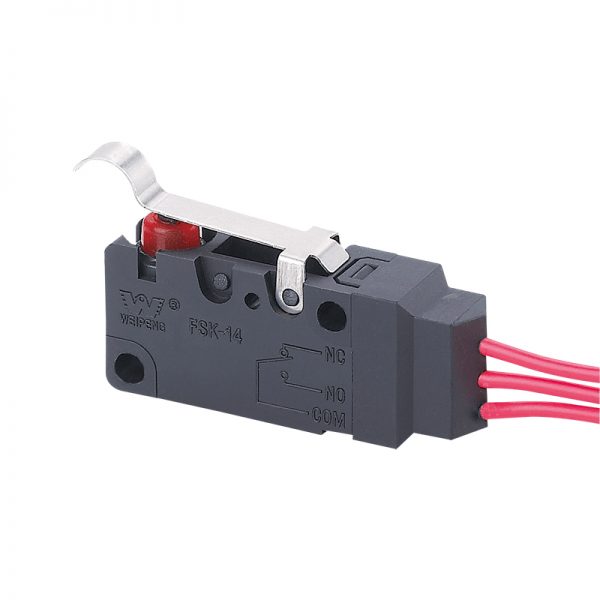

Curved Lever Waterproof Micro Switch

WEIPENG® is a professional leader China Curved Lever Waterproof Micro Switch manufacturers with high quality and reasonable price. We have a proven track record of providing reliable and cost-effective solutions for our customers, and our products have gained popularity in both the European and American markets.

Model:FSK-14-5A-036

Send Inquiry

Product Description

WEIPENG® is Curved Lever Waterproof Micro Switch manufacturers and suppliers in China who can wholesale Curved Lever Waterproof Micro Switch. We can provide professional service and better price for you.

Tongda Wire Electric Curved Lever Waterproof Micro Switch Introduction

Curved Lever Waterproof Micro Switch is a small contact interval and fast moving mechanism, with the specified stroke and the specified force for switching action contact structure, covered by the shell, its external drive rod is a waterproof switch. Contact: In the type of waterproof micro switch, and has the characteristics of waterproof micro switch compared to the semiconductor switch, through the mechanical switch of the contact to achieve the switch function.

Tongda Wire Electric Curved Lever Waterproof Micro Switch drawing

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5 (2)A 125/250VAC 10(3) 125V/250VAC
2	Operating Force		1.0~5.0N
3	Pretravel		0.6~1.5mm
4	Contact Resistance		≤50mΩ Initial value
5	Insulation Resistance		≥100MΩ (500VDC)
6	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
7	Electrical Life		≥10000 cycles
8	Mechanical Life		≥100000 cycles
9	Operating Temperature		-25~85℃
10	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
11	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
12	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time : 2~3S
13	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
14	Safety Approvals		UL、CSA、CQC
15	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
