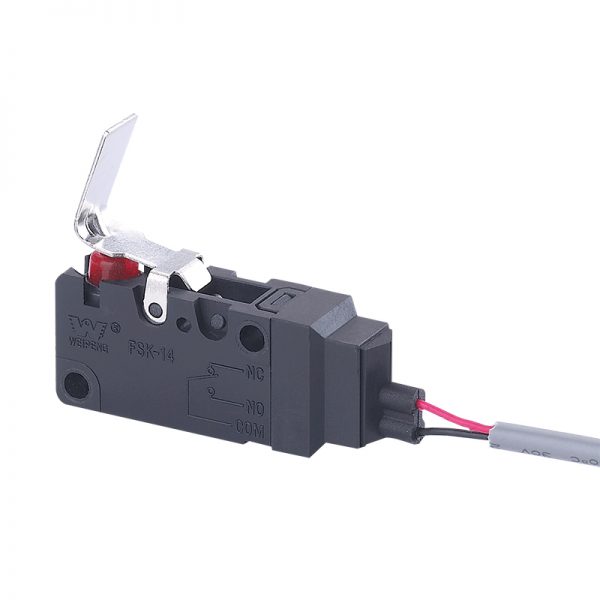

Short Leverage Waterproof Micro Switch

WEIPENG® has established itself as a top-tier short leverage Waterproof Micro Switch manufacturer and supplier in China, providing quality short leverage Waterproof Micro Switch solutions for many years. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your short leverage Waterproof Micro Switch needs in China.

Model:FSK-14-1X-5A-023-TD1.125

Send Inquiry

Product Description

As a professional high quality Short Leverage Waterproof Micro Switch manufacturers, you can rest assured to buy Short Leverage Waterproof Micro Switch from WEIPENG® and we will offer you the best after-sale service and timely delivery.

Tongda Wire Electric Short Leverage Waterproof Micro Switch Introduction

Waterproof Micro Switch is a small contact interval and fast moving mechanism, with the specified stroke and the specified force for switching action contact structure, covered by the shell, its external drive rod is a waterproof switch. Contact: In the type of waterproof micro switch, and has the characteristics of waterproof micro switch compared to the semiconductor switch, through the mechanical switch of the contact to achieve the switch function. Rating: Generally refers to the value used as a guarantee reference for the characteristics and performance of the switch, such as rated current, rated voltage, etc., based on specific conditions (type of load, current, voltage, frequency, etc.). Resin fixing (plastic sealing terminal) : After wiring the terminal part with wire, fix the part by filling resin, eliminate exposed live parts to improve drip resistance method. Insulation resistance: refers to the resistance between non-connected terminals, between terminals and non-charged metal parts, and between terminals and ground. Voltage resistance: The threshold value that will not cause insulation damage after 1 minute high voltage is added to the specified measuring position.

Tongda Wire Electric Short Leverage Waterproof Micro Switch Technical

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5 (2)A 125/250VAC 10(3) 125V/250VAC
2	Operating Force		1.0~5.0N
3	Pretravel		0.6~1.5mm
4	Contact Resistance		≤50mΩ Initial value
5	Insulation Resistance		≥100MΩ (500VDC)
6	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
7	Electrical Life		≥10000 cycles
8	Mechanical Life		≥100000 cycles
9	Operating Temperature		-25~85℃
10	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
11	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
12	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time : 2~3S
13	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
14	Safety Approvals		UL、CSA、CQC
15	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
