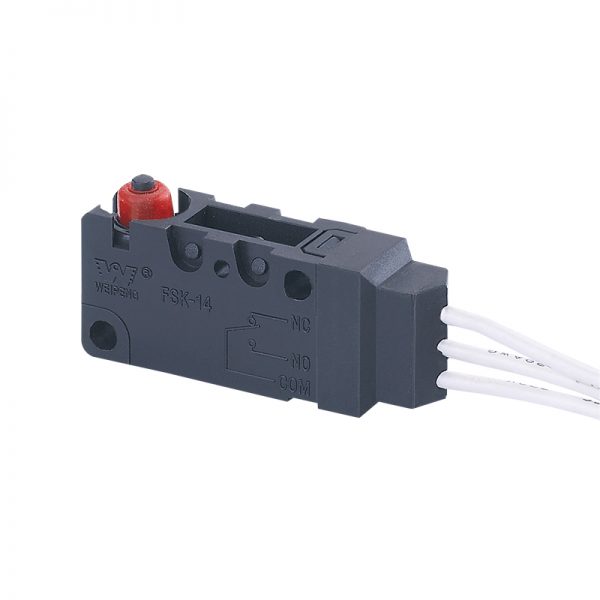

Arc Lever Waterproof Micro Lever
  • Arc Lever Waterproof Micro LeverArc Lever Waterproof Micro Lever

Arc Lever Waterproof Micro Lever

WEIPENG® has established itself as a top-tier Arc Lever Waterproof Micro Lever manufacturer and supplier in China, providing quality Arc Lever Waterproof Micro Lever solutions for many years. Provide professional after-sales service and the right price, looking forward to cooperation.


Send Inquiry

Product Description

WEIPENG® is a professional China Arc Lever Waterproof Micro Lever manufacturers and suppliers, if you are looking for the best Arc Lever Waterproof Micro Lever with low price, consult us now!

Tongda Wire Electric Arc Lever Waterproof Micro Lever Introduction

In order to activate a microswitch, an external mechanical force must be applied to a transmission element, which can be in the form of a press pin, button, lever, or roller. This force is then transmitted to the action reed, which is specifically designed to shift to a critical point when a certain level of force is applied.
Once the action reed reaches the critical point, it produces an instantaneous action that causes the moving contact at the end of the reed to quickly establish or break contact with the stationary contact. The microswitch has a small contact spacing, a short travel distance, and a quick response time, resulting in minimal downtime.
When the force on the transmission element is released, the action reed generates a reverse action force. As the transmission element moves back to its original position, it eventually reaches the critical point of the action reed, completing the reverse action instantaneously.
It's important to note that the speed at which the moving contacts in a microswitch operate is not dependent on the speed of the transmission element. Instead, it is determined by the switch's design and construction, which is engineered to allow for rapid and precise switching action.

Tongda Wire Electric Arc Lever Waterproof Micro Lever Feature And Application

Switch Technical Characteristics:
ITEM Technical Parameter Value
1 Electrical Rating 5 (2)A 125/250VAC 10(3) 125V/250VAC
2 Operating Force 1.0~5.0N
3 Pretravel 0.6~1.5mm
4 Contact Resistance ≤50mΩ  Initial value
5 Insulation Resistance ≥100MΩ  (500VDC)
non-connected terminals
Between terminals
and the metal frame
7 Electrical Life ≥10000 cycles
8 Mechanical Life ≥100000 cycles
9 Operating Temperature -25~85℃
10 Operating Frequency Electrical :15 cycles
Mechanical :60 cycles
11 Vibration Proof Vibration Frequency :10~55HZ;
Amplitude :1.5mm;
Three directions :1H
12 Solder Ability :
More than 80% of immersed part
shall be covered with solder
Soldering Temperature :235±5℃
Immersing Time : 2~3S
13 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering :300±5℃ 2~3S
14 Safety Approvals UL、CSA、CQC
15 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure :86~106KPa

Tongda Wire Electric Arc Lever Waterproof Micro Lever Details
