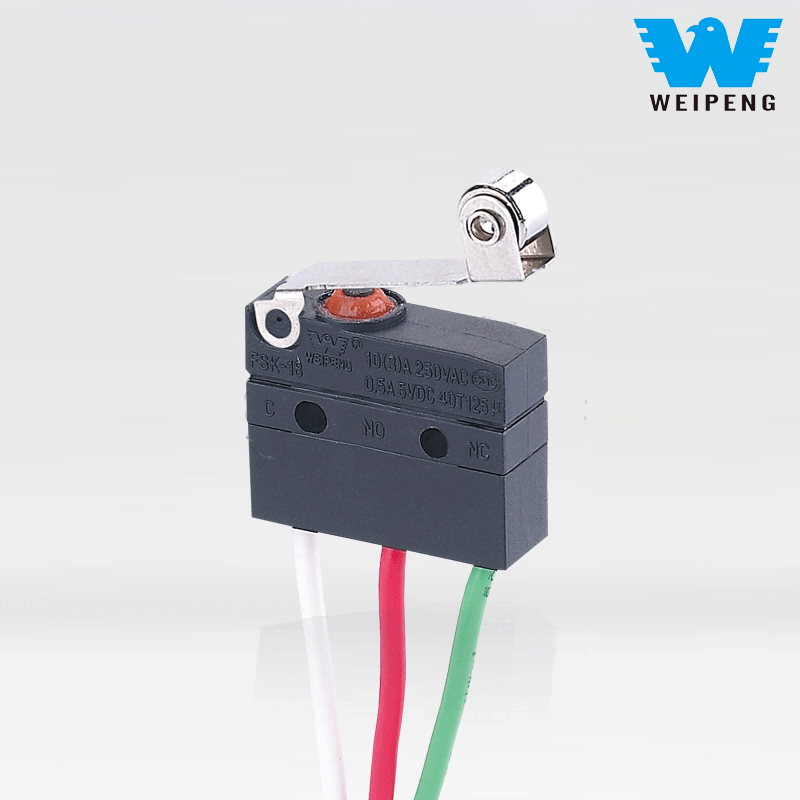

Automotive Household Waterproof and Dustproof Micro Switch

For many years, WEIPENG® has been a leading manufacturer and supplier of high-quality IP67 waterproof micro switches in China. Our commitment to providing competitive pricing and exceptional quality has made us a trusted partner for customers seeking reliable IP67 waterproof micro switch solutions. With a strong presence in both European and American markets, Automotive Household Waterproof and Dustproof Micro Switch provide long-term support for your business.

Model:FSK-18-016

Send Inquiry

Product Description

Automotive Household Waterproof and Dustproof Micro Switch is offered by China manufacturers WEIPENG®. Buy IP67 Waterproof Micro Switch which is of high quality directly with low price.

Tongda Wire Electric IP67 Waterproof Micro Switch Introduction

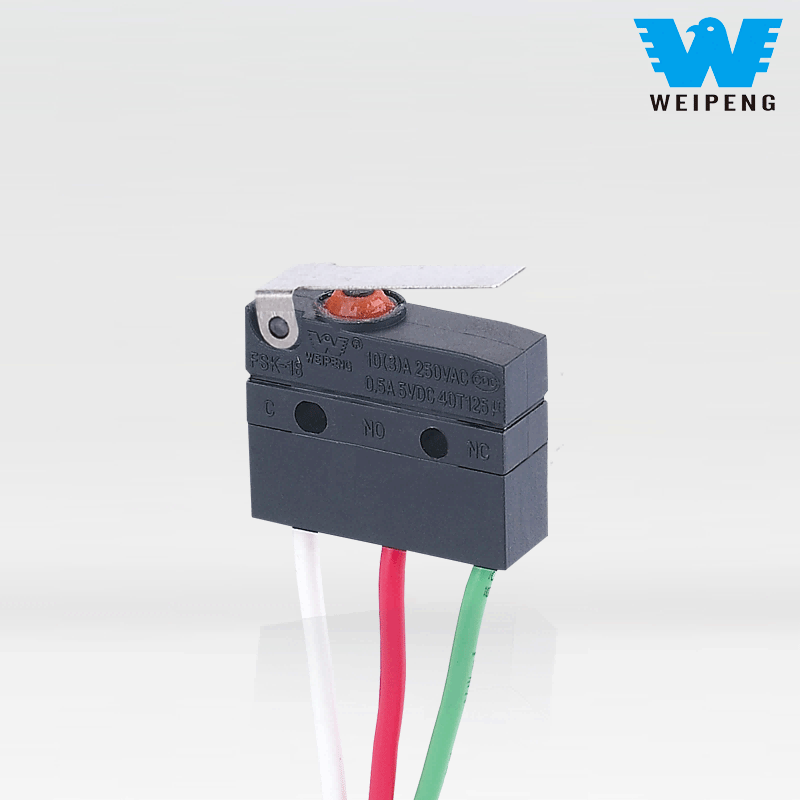

FSK-18 adheres to the design philosophy of 'Upgraded Protection, Stable Performance,' and is tailor-made for complex environments such as humidity, dust, and outdoor conditions. The product features an integrated sealed structure, with a casing made of high-strength flame-retardant material, paired with precise waterproof sealing rings to achieve an IP67 protection rating (no leakage after 30 minutes of immersion in 1-meter-deep water), effectively resisting moisture, dust, and oil corrosion. Its medium size balances installation flexibility and operational convenience, supporting various mounting methods such as panel installation and PCB soldering, making it suitable for a wide range of device control panels and confined assembly spaces. The operation travel is 0.6-1.5mm, with clear pressing feedback, and the operating force can be custom-adjusted between 1.0-5.0N to meet the operational needs of different scenarios.

Extended lifespan design: Mechanical lifespan exceeds 100,000 cycles, electrical lifespan reaches 50,000 cycles. Based on 30 high-frequency operations per day, it can be reliably used for over 9 years, far surpassing consumer-grade product standards. The contacts are made of silver alloy, with an initial contact resistance of ≤50mΩ, excellent arc extinguishing performance, effectively reducing arc erosion and ensuring stable circuit switching.

Wide-range environmental adaptation: Operating temperature covers -25℃ to 105℃, tolerating extreme high and low temperatures; insulation resistance ≥100MΩ (DC500V), terminal withstand voltage 1500V AC, passes vibration testing (10-55Hz, amplitude 1.5mm), maintaining reliable performance in industrial vibrations, vehicle bumps, and other scenarios.

Tongda Wire Electric IP67 Waterproof Micro Switch Principle：

The functioning of a waterproof micro switch is based on the external application of mechanical forces on the action reed through transmission components such as push pins, buttons, levers, and rollers. As the action reed moves towards a critical point, it generates instantaneous action, causing the moving contact at the end of the reed to quickly connect or disconnect from the fixed contact.
Upon removing the force acting on the transmission element, the action reed produces a reverse acting force. As the transmission element undergoes a reverse stroke, it reaches the critical point of the reed, and the reverse action is completed instantaneously. The small contact distance, short travel, small pressure, and fast switching speed make the waterproof micro switch a reliable and efficient component. Additionally, the moving speed of the contact is independent of the speed of the transmission element.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		0.1A 5(2)A 10(3)A 125/250VAC 0.1A 5A 36VDC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
11	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
