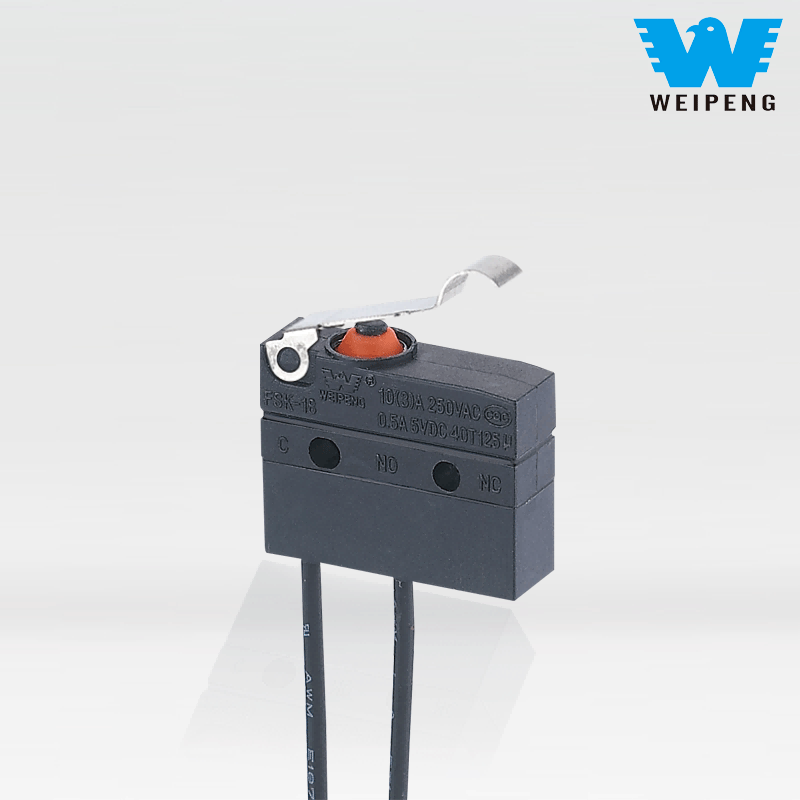

Car Reset Waterproof Micro Switch

As a benchmark product of Yueqing Tongda Cable Electric Factory (WEIPENG brand) in the field of waterproof control, Car Reset Waterproof Micro Switch has become a trusted choice in industrial control, automotive electronics, smart home, and other fields, thanks to its core advantages of 'IP67 protection, high mechanical strength, and full-scenario adaptability' after market validation.

Model:FSK-18-D-007

Send Inquiry

Product Description

WEIPENG® is a leading China Car Reset Waterproof Micro Switch manufacturers, suppliers and exporter.

Waterproof Micro Switch Introduction

As a benchmark product of Yueqing Tongda Cable Electric Factory (WEIPENG brand) in the field of waterproof control, the FSK-18 medium-sized waterproof switch has become a trusted choice in industrial control, automotive electronics, smart home, and other fields through market verification, thanks to its core strengths of 'IP67 protection level, high mechanical strength, and full-scenario adaptability.' This meticulously crafted product, focusing on 'medium size and robust protection,' perfectly balances installation compatibility with harsh environment adaptability, providing stable and reliable control solutions for well-known domestic and international enterprises, showcasing the company's technical expertise and large-scale manufacturing capabilities in the field of waterproof switches.

Waterproof Micro Switch Application

Household appliances：Waterproof micro switches are widely used in household appliances, such as washing machines, refrigerators, air conditioners, etc. Its waterproof performance can protect the normal operation of the switch in wet environment.

- Smart Home Sector: Suitable for smart door locks, outdoor lighting, garden irrigation controllers, etc. Its waterproof features address challenges of outdoor installation and use in humid environments, and the low-power design reduces device energy consumption. It has been procured long-term by leading smart home brands.

- Home Appliance Applications: Compatible with dishwashers, blenders, outdoor power supplies, and more. It withstands moisture and frequent operation. After implementation by a well-known appliance brand, product after-sales maintenance rates decreased by 42%.

Waterproof Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		0.1A 5(2)A 10(3)A 125/250VAC 0.1A 5A 36VDC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
11	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
