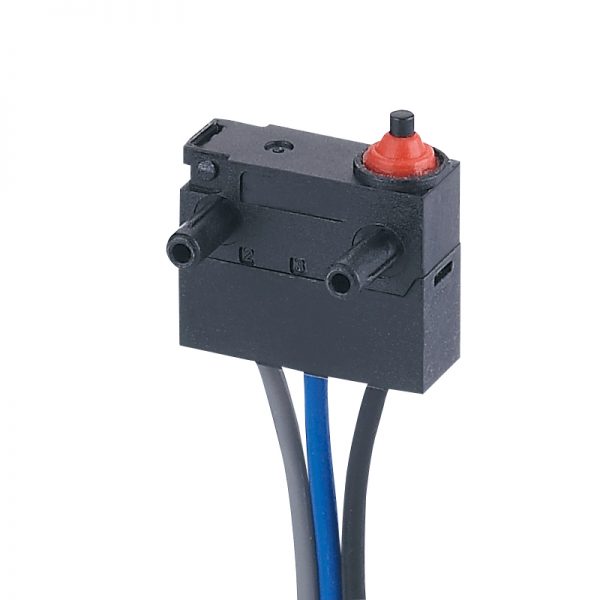

Car Parts Waterproof Micro Switch

WEIPENG® has established itself as a Car Parts Waterproof Micro Switch manufacturer and supplier in China, providing quality car waterproof long lever micro switch solutions for many years. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your car waterproof long lever micro switch needs in China.

Model:FSK-20-007

Send Inquiry

Product Description

WEIPENG® is a leading China Micro Switch manufacturers, suppliers and exporter.

Tongda Car Parts Waterproof Micro Switch Introduction

Car Waterproof micros witches are widely utilized in various challenging environments, such as cold, wet, and dusty settings. They find application in different industries such as automotive, spraying equipment, refrigerators, ice makers, bathroom fixtures, air conditioning, water heaters, outdoor equipment, and instruments. These switches are even suitable for use in charging stations for new energy vehicles.
To determine the appropriate waterproof microswitch for an application, it's necessary to consider the surrounding environmental conditions. This includes assessing the type of contaminants present in the air that may enter the switch, the liquid medium in which the switch will be used, and the required operating temperature range

Tongda Car Parts Waterproof Micro Switch Feature

Switch Technical Characteristics:
ITEM	Technical parameter		Value
1	Electrical Rating		0.1A/1A/3A 250VAC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude : 1.5mm; Three directions :1H
11	Solder Ability :More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
