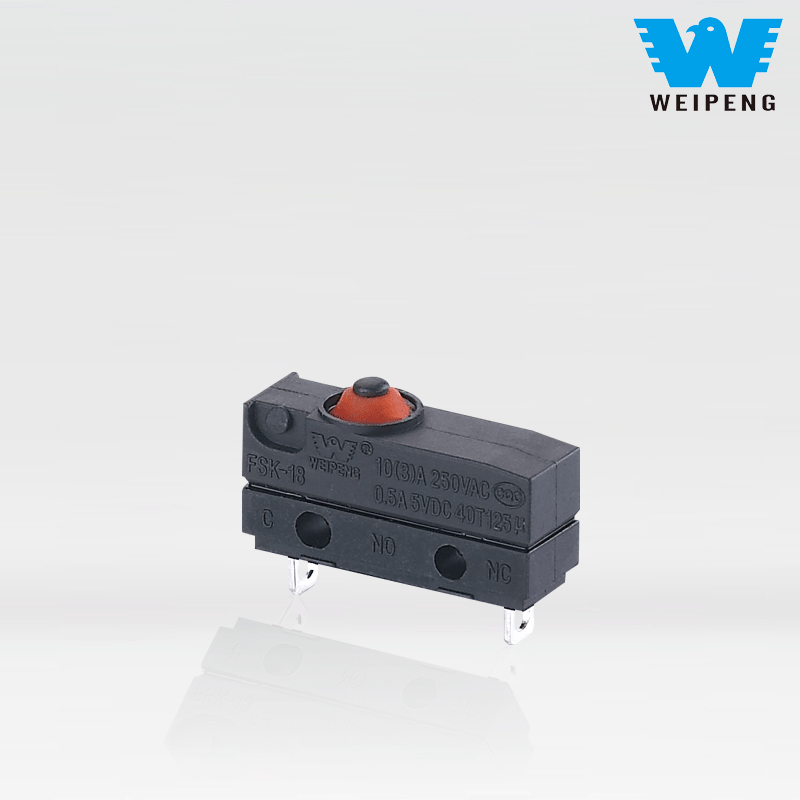

Fsk-18 Automotive Parts Micro Switch

For many years, WEIPENG® has been a leading manufacturer and supplier of Fsk-18 Automotive Parts Micro Switch. Our commitment to providing competitive pricing and exceptional quality has made us a trusted partner for customers seeking reliable IP67 waterproof micro switch solutions. With a strong presence in both European and American markets, Waterproof Micro Switch provide long-term support for your business.

Model:FSK-18-T-004

Send Inquiry

Product Description

WEIPENG® has been a leading manufacturer and supplier of Fsk-18 Automotive Parts Micro Switch. Our commitment to providing competitive pricing and exceptional quality has made us a trusted partner for customers seeking reliable IP67 waterproof micro switch solutions. With a strong presence in both European and American markets, Waterproof Micro Switch provide long-term support for your business.

Waterproof Micro Switch Introduction

Relying on Yueqing Tongda's comprehensive quality management system, the FSK-18 undergoes 12 key inspections from raw material intake to finished product output, including waterproof sealing tests, high and low temperature aging tests, and durability pressing tests, with a factory pass rate maintained at 100%. Currently, the product has an annual production capacity of 300 million units, supports various contact forms such as SPDT / normally open / normally closed, and offers customized actuators like pin plungers, levers, and roller levers. The standard order lead time is 7-15 days, while urgent orders are shipped within 3 days of response.

Industrial control field: Suitable for automation equipment, PLC controllers, valve switches, etc. Its IP67 waterproof and dustproof performance ensures stable operation in humid and dusty workshop environments. After being applied in a certain machinery manufacturing enterprise, equipment failure rate dropped by 38%.

Certified by multiple international authorities such as UL, CUL, ENEC, VDE, and CQC, compliant with RoHS and REACH environmental directives, meeting IATF16949 automotive industry quality system requirements, and suitable for global market access standards.

Waterproof Micro Switch Principle：

The functioning of a waterproof micro switch is based on the external application of mechanical forces on the action reed through transmission components such as push pins, buttons, levers, and rollers. As the action reed moves towards a critical point, it generates instantaneous action, causing the moving contact at the end of the reed to quickly connect or disconnect from the fixed contact.
Upon removing the force acting on the transmission element, the action reed produces a reverse acting force. As the transmission element undergoes a reverse stroke, it reaches the critical point of the reed, and the reverse action is completed instantaneously. The small contact distance, short travel, small pressure, and fast switching speed make the waterproof micro switch a reliable and efficient component. Additionally, the moving speed of the contact is independent of the speed of the transmission element.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		0.1A 5(2)A 10(3)A 125/250VAC 0.1A 5A 36VDC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
11	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
