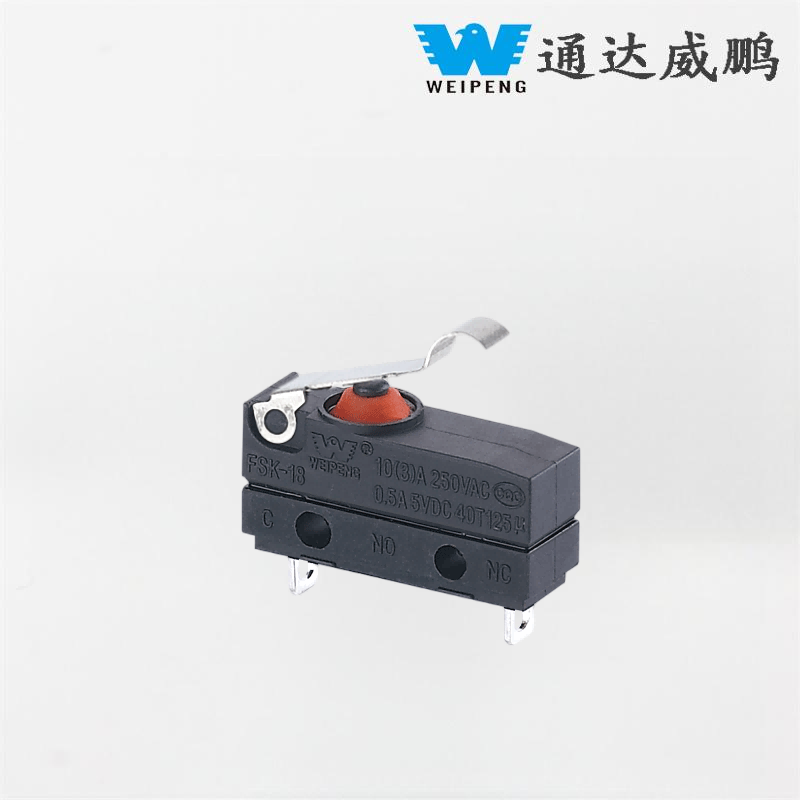

Weipeng Gas Stove Accessories Waterproof Micro Switch

For many years, WEIPENG® has been a leading manufacturer and supplier of Weipeng Gas Stove Accessories Waterproof Micro Switch. Our commitment to providing competitive pricing and exceptional quality has made us a trusted partner for customers seeking reliable IP67 waterproof micro switch solutions. With a strong presence in both European and American markets, Waterproof Micro Switch provide long-term support for your business.

Model:FSK-18-T-001

Send Inquiry

Product Description

WEIPENG® has been a leading manufacturer and supplier of Weipeng Gas Stove Accessories Waterproof Micro Switch. Our commitment to providing competitive pricing and exceptional quality has made us a trusted partner for customers seeking reliable IP67 waterproof micro switch solutions. With a strong presence in both European and American markets, Waterproof Micro Switch provide long-term support for your business.

Waterproof Micro Switch Introduction

Relying on Yueqing Tongda's comprehensive quality management system, the FSK-18 undergoes 12 key inspections from raw material intake to finished product output, including waterproof sealing tests, high and low temperature aging tests, and durability pressing tests, with a factory pass rate maintained at 100%. Currently, the product has an annual production capacity of 300 million units, supports various contact forms such as SPDT / normally open / normally closed, and offers customized actuators like pin plungers, levers, and roller levers. The standard order lead time is 7-15 days, while urgent orders are shipped within 3 days of response.

- Automotive electronics scenario: specifically designed for charging port locks, shift mechanisms, and battery management systems (BMS) of new energy vehicles. It features automotive-grade vibration resistance and wide temperature adaptability, has passed rigorous in-vehicle environment testing, and is used in mass production by multiple automakers.

Certified by multiple international authorities such as UL, CUL, ENEC, VDE, and CQC, compliant with RoHS and REACH environmental directives, meeting IATF16949 automotive industry quality system requirements, and suitable for global market access standards.

Waterproof Micro Switch Principle：

Relying on Yueqing Tongda's comprehensive quality management system, the FSK-18 undergoes 12 core inspections from raw material entry to finished product output, including waterproof sealing tests, high and low temperature aging tests, durability press tests, and more, maintaining a 100% pass rate at the factory.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		0.1A 5(2)A 10(3)A 125/250VAC 0.1A 5A 36VDC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
11	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
