As the professional manufacturers, WEIPENG® would like to supply Momentary Micro Switch Waterproof With Lever we will offer you the best after-sale service and timely delivery. For more information on the 5A 125V/250VAC Waterproof Micro Switch, please feel free to contact us.
Product Introduction
As the flagship waterproof switch developed by Yueqing Tongda for large industrial equipment and heavy-duty outdoor scenarios, the FSK-14 series is centered on 'heavy-duty compatibility and IP67-level deep waterproofing.' It combines the company's over 30 years of switch manufacturing experience with military-grade sealing technology. Specifically designed for high-power equipment, deep-water operations, and extreme industrial environments, it offers exceptional load capacity, deep-water sealing protection, and stable installation structure. It is widely adaptable to heavy machinery, power equipment, marine engineering, outdoor infrastructure, and other fields, becoming the core solution for controlling equipment in harsh environments.
Product Feature and Application
Metallurgical equipment:Waterproof micro switches are suitable for control systems in metallurgical equipment, such as high-temperature furnaces, cooling equipment, etc. Its waterproof performance can ensure the normal operation of the device in high temperature and humid environment.
| Switch Technical Characteristics: | |||
| ITEM | Technical Parameter | Value | |
| 1 | Electrical Rating | 5 (2)A 125/250VAC 10(3) 125V/250VAC | |
| 2 | Operating Force | 1.0~5.0N | |
| 3 | Pretravel | 0.6~1.5mm | |
| 4 | Contact Resistance | ≤50mΩ Initial value | |
| 5 | Insulation Resistance | ≥100MΩ (500VDC) | |
| 6 |
Dielectric Voltage |
Between non-connected terminals |
500V/0.5mA/60S |
|
Between terminals and the metal frame |
1500V/0.5mA/60S | ||
| 7 | Electrical Life | ≥10000 cycles | |
| 8 | Mechanical Life | ≥100000 cycles | |
| 9 | Operating Temperature | -25~85℃ | |
| 10 | Operating Frequency |
Electrical :15 cycles Mechanical :60 cycles |
|
| 11 | Vibration Proof |
Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H |
|
| 12 |
Solder Ability : More than 80% of immersed part shall be covered with solder |
Soldering Temperature :235±5℃ Immersing Time : 2~3S |
|
| 13 | Solder Heat Resistance |
Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S |
|
| 14 | Safety Approvals | UL、CSA、CQC | |
| 15 | Test Conditions |
Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa |
|

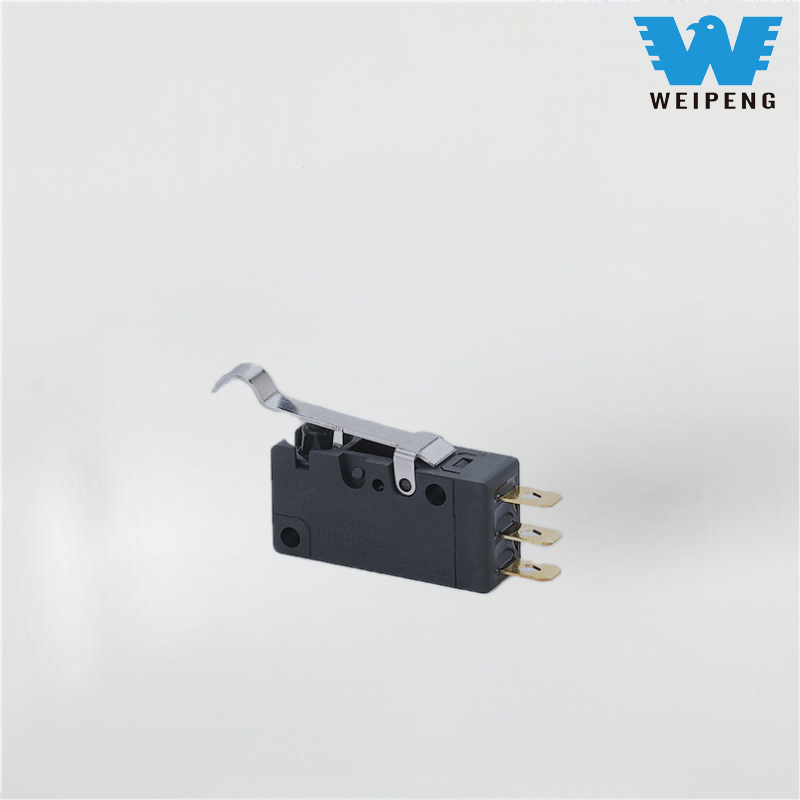

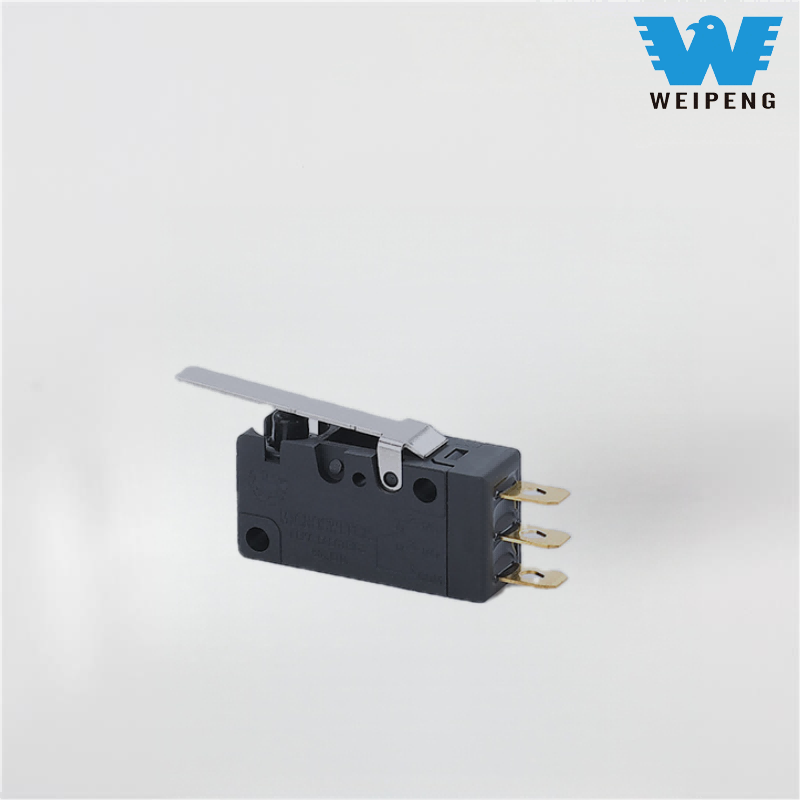

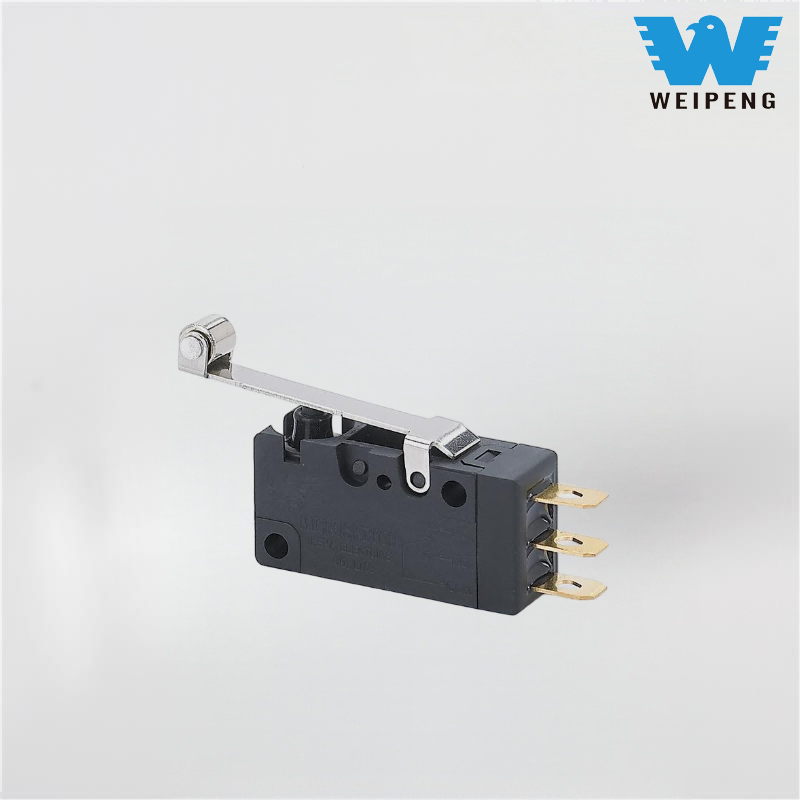

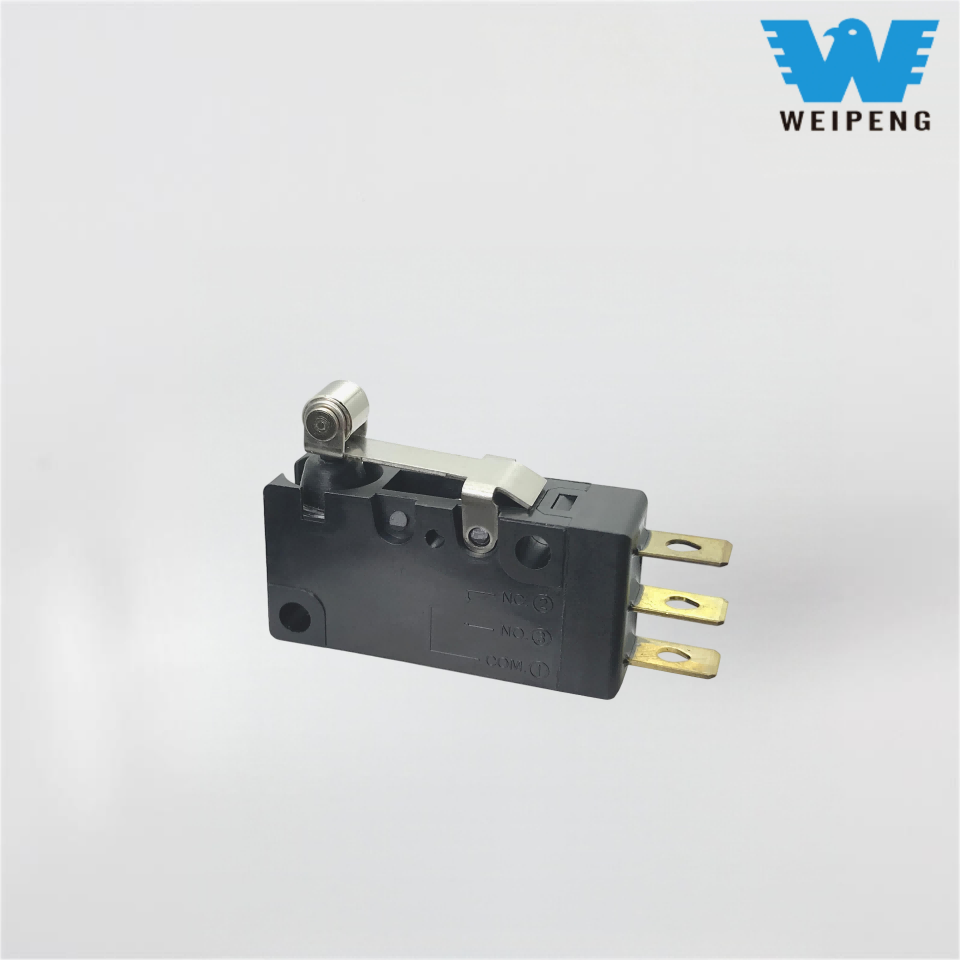

Product Details
