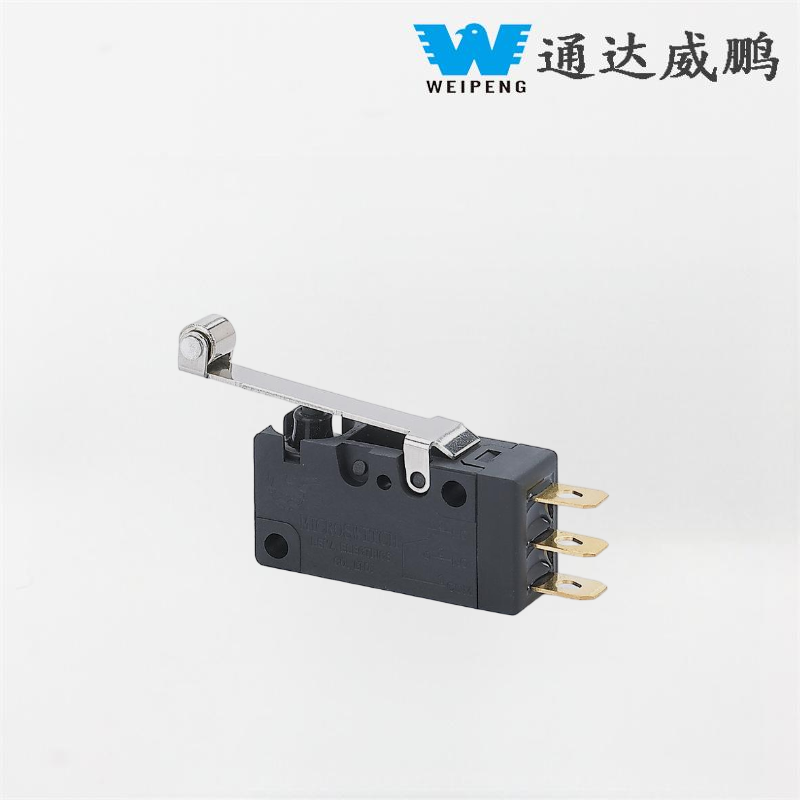

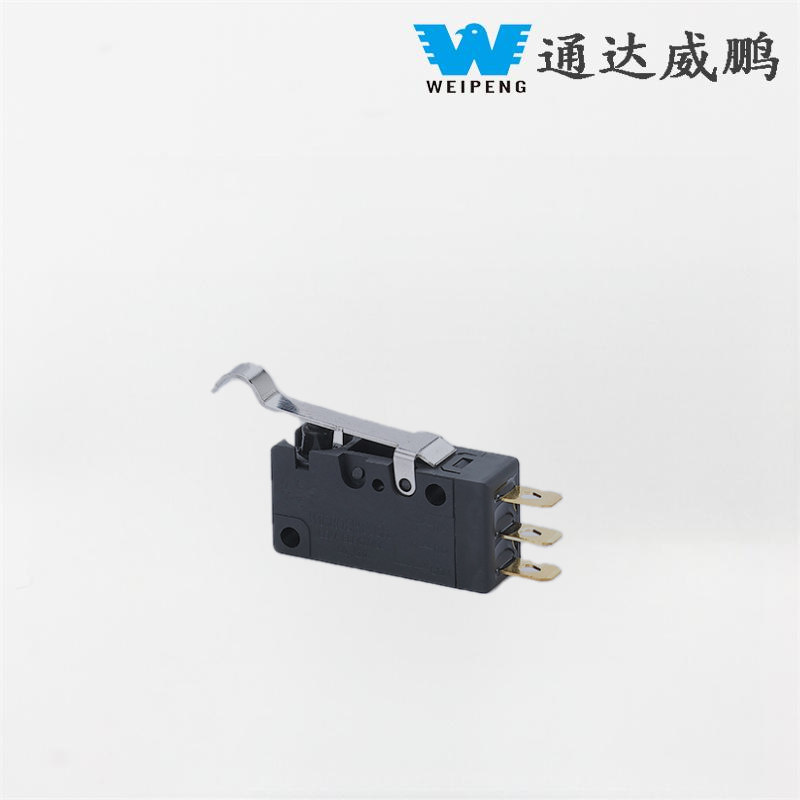

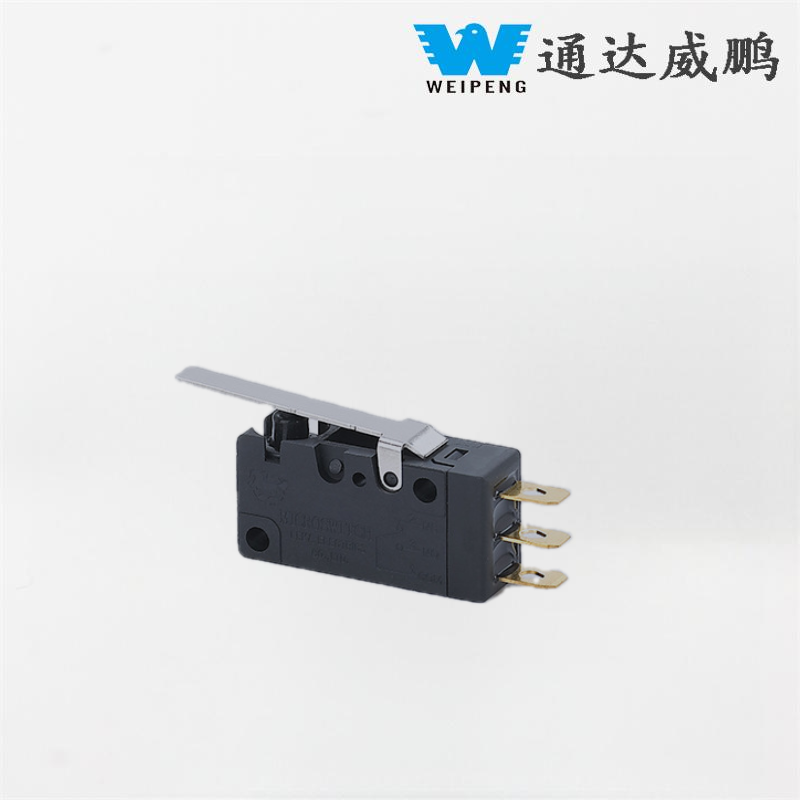

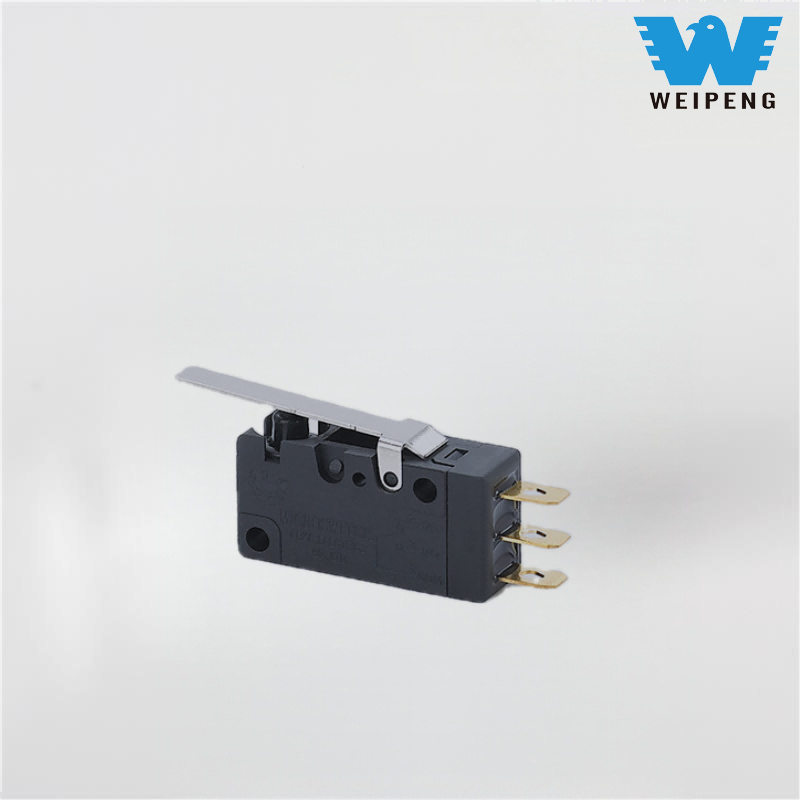

Weipeng Small Automation Control Waterproof Micro Switch
  • Weipeng Small Automation Control Waterproof Micro SwitchWeipeng Small Automation Control Waterproof Micro Switch
  • Weipeng Small Automation Control Waterproof Micro SwitchWeipeng Small Automation Control Waterproof Micro Switch
  • Weipeng Small Automation Control Waterproof Micro SwitchWeipeng Small Automation Control Waterproof Micro Switch

Weipeng Small Automation Control Waterproof Micro Switch

As the professional manufacturers, WEIPENG® would like to supply Momentary Micro Switch Waterproof With Lever we will offer you the best after-sale service and timely delivery. For more information on the 5A 125V/250VAC Waterproof Micro Switch, please feel free to contact us.

Model:FSK-14-5A-001

Send Inquiry

Product Description

WEIPENG® is a leading of Weipeng Small Automation Control Waterproof Micro Switch manufacturers, suppliers and exporter.

Product  Introduction


As the flagship waterproof switch developed by Yueqing Tongda for large industrial equipment and heavy-duty outdoor scenarios, the FSK-14 series is centered on 'heavy-duty compatibility and IP67-level deep waterproofing.' It combines the company's over 30 years of switch manufacturing experience with military-grade sealing technology. Specifically designed for high-power equipment, deep-water operations, and extreme industrial environments, it offers exceptional load capacity, deep-water sealing protection, and stable installation structure. It is widely adaptable to heavy machinery, power equipment, marine engineering, outdoor infrastructure, and other fields, becoming the core solution for controlling equipment in harsh environments.


Product  Feature and Application


Metallurgical equipment:Waterproof micro switches are suitable for control systems in metallurgical equipment, such as high-temperature furnaces, cooling equipment, etc. Its waterproof performance can ensure the normal operation of the device in high temperature and humid environment.

Switch Technical Characteristics:
ITEM Technical Parameter Value
1 Electrical Rating 5 (2)A 125/250VAC 10(3) 125V/250VAC
2 Operating Force 1.0~5.0N
3 Pretravel 0.6~1.5mm
4 Contact Resistance ≤50mΩ  Initial value
5 Insulation Resistance ≥100MΩ  (500VDC)
6
Dielectric
Voltage
Between
non-connected terminals
500V/0.5mA/60S
Between terminals
and the metal frame
1500V/0.5mA/60S
7 Electrical Life ≥10000 cycles
8 Mechanical Life ≥100000 cycles
9 Operating Temperature -25~85℃
10 Operating Frequency Electrical :15 cycles
Mechanical :60 cycles
11 Vibration Proof Vibration Frequency :10~55HZ;
Amplitude :1.5mm;
Three directions :1H
12 Solder Ability :
More than 80% of immersed part
shall be covered with solder
Soldering Temperature :235±5℃
Immersing Time : 2~3S
13 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering :300±5℃ 2~3S
14 Safety Approvals UL、CSA、CQC
15 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure :86~106KPa


Product  Details
